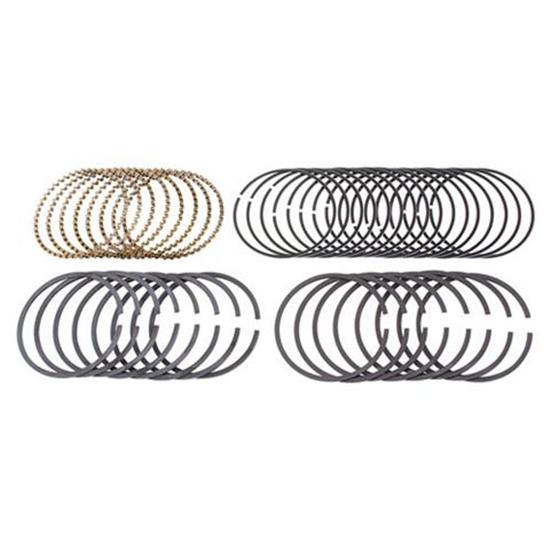

Speedway Plasma Moly Piston Rings, 4.00 Bore, Style A

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Set
Piston Ring Style:
A
Garage Sale:
No
Piston Ring Design:
Conventional
Top Ring Material:
Plasma Moly Coated Cast Iron
Second Ring Material:
Plasma Moly Coated Cast Iron
Top Ring Thickness:
5/64"
Second Ring Thickness:
5/64"
Oil Ring Thickness:
3/16"
Oil Ring Tension:
Standard Tension
Piston Ring Diameter:
-
Speedway Plasma Moly Piston Rings, 4.00 Bore, Style A
Speedway Plasma Moly Piston Rings, 4.00 Bore, Style A

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway premium Plasma Moly piston rings work with either gas or alcohol fuels, handle 8000+ rpm, and up to 14:1 compression.

Ring Style Chart (GIF)

Notes

Speedway Piston Ring Hierarchy

  • Good - Speedway Gas Proven Series
  • Better -Speedway Moly
  • Best - Speedway Plasma Moly
  • Ultimate Race - Speedway Pro Series
