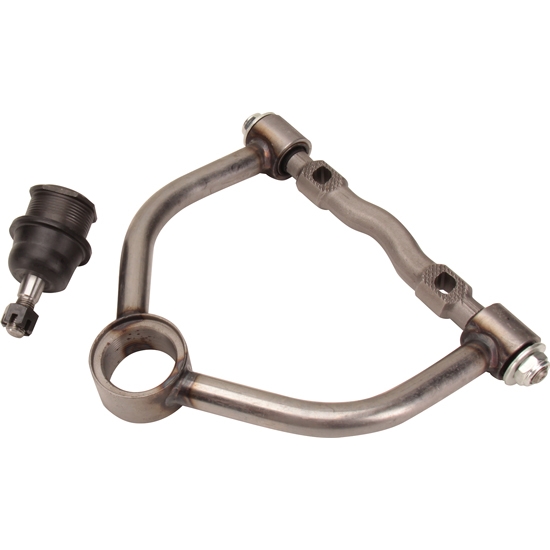

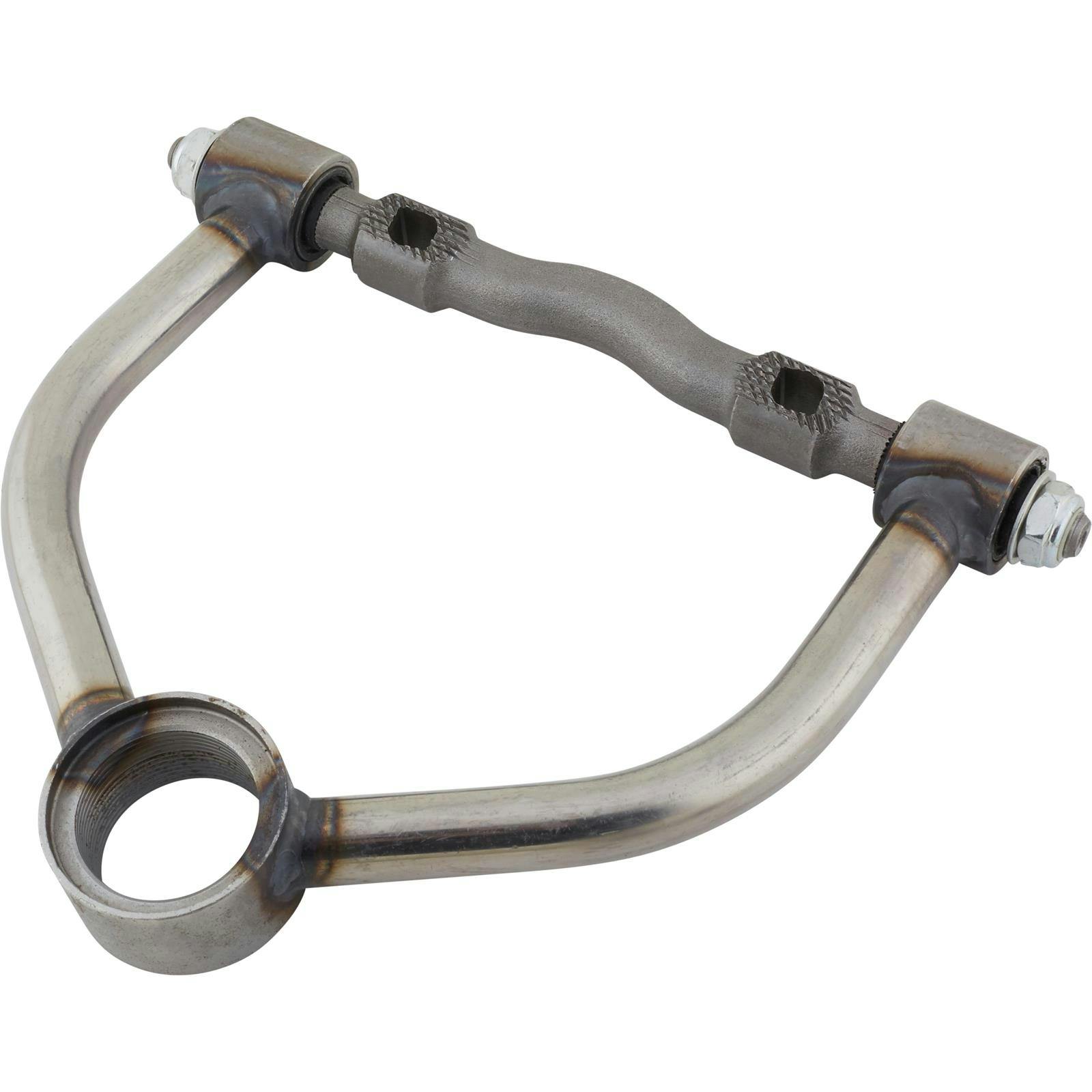

Speedway Mustang II Tubular Upper Control Arm, Stock Width

Speedway Mustang II Tubular Upper Control Arm, Stock Width

Click image to enlarge

Details

Reviews (4)

Q & A (5)

What's in the Box

Info

Clearance!!



**NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS**



You don't have to look any farther for tubular control arms for your hot rod. Full .120 wall, 1" diameter tubing, fixture welded and features screw-in ball joints and no-squeak bushings. Will work with nearly any stock or aftermarket crossmember.

Replaces 1974-80 Pinto, Bobcat and 1974-78 Mustang II control arms.

  • Full .120" wall
  • 1" diameter tubing
  • Fixture welded
  • Screw-in ball joints
  • No-squeak bushings
  • Works with all Mustang II crossmembers we sell

Note: This item is sold individually.

910-34320 Tubular Upper Control Arm Instructions (PDF)

Tubular Control Arm Chart (GIF)

Check out our 5/8" narrower than stock width upper control arms (91034326) for applications that require a shorter track width.  These allow you to tuck the wheels up under the fenders without having to buy expensive special offset wheels.

Notes

Why go with tubular control arms? The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Another bonus is that the tubular control arms are available in 5/8" narrower than stock, which helps tuck the wheels up under the fenders without having to buy expensive special offset wheel. When using 5/8" narrower control arms, 1" must be removed from each inner tie rod end.

Specs

Stock Tubular Control Arm Specifications:
  • Centerline of Holes : 5.00 " This would be the mounting holes
  • Center to Center : 8.25 " Center of cross shaft to center of the ball joint
  • Shaft Diameter : .75 "
  • Tube O.D. : .87 "
  • Degree of Taper : 7 degree

Customer Reviews

Rated 4.3 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Mustang ii man
Verified Purchaser
Westlake, La.

Good not great

April 26, 2016
A must for dropped spindles, it is bare metal, need powder coat or undercoat them. I think instructions are backwards where as shock bolt hits strut rod. Love the screw in ball joints. Needs never seize they go right in. I would buy them again. I think a little overpriced.
Pros:
  • No Squeaks
  • Required For Dropped Spin
  • Easy Installation
Cons:
  • Instructions Are Backward
  • Bare Metal
  • No Polyurethane Bushing
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Paul1967
ny

looks great

September 05, 2013
no complaint s here well made product if you have any demsional questions will help you call tech they
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

none
Verified Purchaser
Silver Lake, Ks.

mustang 11 tubular upper control arms

January 24, 2012
this product gives me more room under the fenders and improves front end alignment.
Pros:
  • Lightweight
  • High-Performance
  • Easy To Use
  • Durable
  • Versatile
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Built2Drive
Verified Purchaser
Maryland

,,,,,,,,,,,,,,,,,,,,,,,,,,

December 02, 2010
product looked ok [...]
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

Dust boots Do you sell the dust boots as well? Uwe

34Chevy
Germany
March 29, 2014

Dust boots Do you sell the dust boots as well? Uwe

Answers

March 31, 2014
EricM
Sorry I do not offer a replacement dust boot.
1 answers

Do you sell replacement bushings for this control arm ? I need replacement bushings for this control arm. Do you sell them or can you tell me a part number for a replacement bushing and where it can be bought ?

1938FordGuy
June 01, 2013

Do you sell replacement bushings for this control arm ? I need replacement bushings for this control arm. Do you sell them or can you tell me a part number for a replacement bushing and where it can be bought ?

Answers

June 03, 2013
Jason
Speedway offers replacement bushing part #91034329 for the mustang II tubular arm
1 answers

Your answer showing "10 1/4" at widest point" leaves me wanting to be sure that the widest point is from the cross shaft to the ball joint, not from I want to put standard tubular control arms on a Mustang II front end on a 50 GMC. The tubular control arms now on it are so narrow the ball joint touches the spring. So I think they must be the "narrow" ones. I see reference to "5/8" narrower", and while 5/8" wider would certainly help this truck, the dimension of 10 1/4 at widest point would be even better, if the widest point you mean is the widest point I'm thinking.

Stelor
Saint John, NB, Canada
January 17, 2013

Your answer showing "10 1/4" at widest point" leaves me wanting to be sure that the widest point is from the cross shaft to the ball joint, not from I want to put standard tubular control arms on a Mustang II front end on a 50 GMC. The tubular control arms now on it are so narrow the ball joint touches the spring. So I think they must be the "narrow" ones. I see reference to "5/8" narrower", and while 5/8" wider would certainly help this truck, the dimension of 10 1/4 at widest point would be even better, if the widest point you mean is the widest point I'm thinking.

Answers

January 17, 2013
Jason
We apologize for the inconvenience and possibly a misunderstanding on dimension required. The IFS upper control arms such as our Speedway 91034340 carry the stock dimensions and from the centerline of the bushings retaining the cross shaft to the center or grease zerk on the ball joint is 8 3/16 to 8 ¼”. Overall width would be from the outside of the cross shaft to outside of the cross shaft being the 10 ¼” measurement. Below are the dimensions for the upper arms in stock width. Centerline of Holes : 5.00 " This would be the mounting holes ! Center to Center : 8.25 " Center of cross shaft to center of the ball joint! Shaft Diameter : .75 " Tube O.D. : .87 " Degree of Taper : 7 degree The 5/8” narrower carry the following specifications: Centerline of Holes : 5.00 " Center to Center : 7.63 " Tube O.D. : .87 " Degree of Taper : 7 degree Shaft Diameter : .75 "
1 answers

What are the dimensions and weight of this upper control arm?

August 02, 2011

What are the dimensions and weight of this upper control arm?

Answers

August 03, 2011
Jason
This is 8-1/4" center to center. 10-1/4" at widest point and 5" center to center on shaft holes.
1 answers

do these fit either side ( left & right )

January 24, 2012

do these fit either side ( left & right )

Answers

January 25, 2012
Eric
Yes this part will fit both left and right sides.
