Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel

Free Shipping Free Shipping
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel
Speedway Model T, A, 1932-34 Four-Bar Rear Suspension Kit, Plain Steel

Click image to enlarge

Details

Reviews (6)

Q & A (12)

What's in the Box

Info

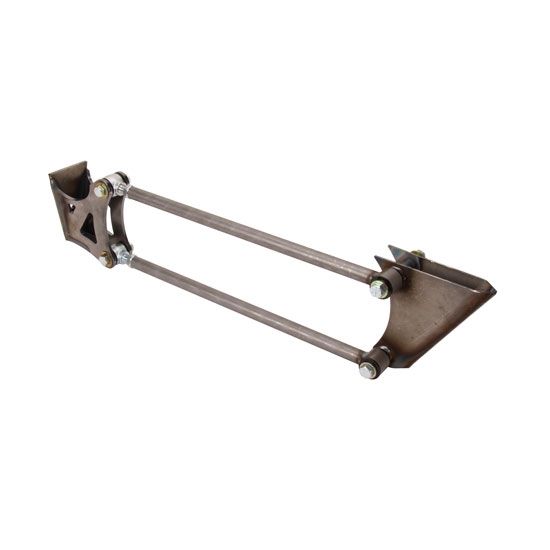

Features heavy wall 21-1/2" rods with plain steel brackets. Exclusive sandwich-style brackets give greater bar support and incorporate a multi-position lower coil-over mount.

Complete kit includes: mild steel rods, steel brackets, bushed rod ends, and hardware. Lower coil-over shock mount stud not included. The nuts & bolts supplied in this kit are NOT polished or plated.

  • Rod length is 21-1/2"
  • Center-to-center of 4-bar eyelets is 5.5"
  • Bracket width is 1.39"

This kit comes in two varieties:

  • TA - to fit narrow frames such as Model T or Model A
  • 3234 - to fit wider frames such as 1932-1934 Ford

Note:  Four bar rear suspension kits require the use of a side to side control such as a panhard bar or a watts link component.

916-49055 Instructions (PDF)

Customer Reviews

Rated 4.2 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

gringo
Verified Purchaser

picture is misleading

February 23, 2013
the forward brackets are misleading in the pictures, it looks as though the bars would go in between the brackets which would be stronger but they actually mount on the side very lame.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Thank you for your feedback. We have updated the image for these four-bar kits to better represent it's installation. We apologize for any lack of or misleading information within any of our product descriptions or photos. Speedway Motors thanks those that bring this to our attention and are happy to help ensure that our customers have the best experience with us in any way.
Goodwrench
Verified Purchaser
Lykens, PA

I would buy this product again

July 13, 2012
After some adjustments to get the correct angles' it welded up good and worked good. It is alot better than some I've seen.
Pros:
  • Versatile
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dude
Verified Purchaser
Pueblo West, CO

There are fine. Work great!

October 13, 2011
Worked well for my Street Rod.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Street Rod Nut
Verified Purchaser
Zanesville, Ohio

I would buy this product again and again

March 19, 2011
Easy to install
Pros:
  • Versatile
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rats Nest
Verified Purchaser
St.Louis

4 Bar Rear Kit

September 08, 2010
Very nice product and will buy again. Very clean,no rust junk.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

todds rods
idaho

4-bar

April 01, 2010
sure helped the ol dodge ride nicer
Pros:
  • Easy To Install
  • Well thought out kit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

12 questions : 12 answers

1 answers

Is it safe to assume the 21 1/2 inch rod length is eye to eye with the adjustable eye screwed all the way in? Other vendors are more specific regarding this specification. Thanks.

Teacherman
December 11, 2014

Is it safe to assume the 21 1/2 inch rod length is eye to eye with the adjustable eye screwed all the way in? Other vendors are more specific regarding this specification. Thanks.

Answers

December 12, 2014
EricM
These are 20 1/2" center to center with the end screwed all the way together. They can be adjusted out to a max of 21 1/2" center to center.
1 answers

What Panhard goes with this? 1930 Model A frame and a ford 9"? Thank you.

Konkon
New Zealand
May 01, 2014

What Panhard goes with this? 1930 Model A frame and a ford 9"? Thank you.

Answers

May 01, 2014
EricM
Panhard bar kits 91649022 or 91049800 will work along with this rear suspension kit.
1 answers

What maximum horsepower is this rated for

Allen4964
Nebraska
March 06, 2014

What maximum horsepower is this rated for

Answers

March 07, 2014
EricM
91649055 four bar kit has two options of TA for the narrower frames and 32/34 for the wider frames. It does not have a horsepower rating but we have not heard of any issues from customers using high horsepower engines in heavy cars run on the strip.
1 answers

Is this kit P/N 91649055-TA for both sides?

Timbo536
Sorrento FL.
October 05, 2013

Is this kit P/N 91649055-TA for both sides?

Answers

October 07, 2013
Jason
Yes, the Speedway Model T and A four bar rear suspension kit is a complete kit for both sides of rear. It includes a pair of frame brackets, a pair of brackets for the rear with shock mounts, a set of tubes and the four bar ends with jam nuts.
1 answers

If I buy this kit and a bare 9 inch 56 wide housing will you weld the brackets on the housing at no charge?

V8VW
July 03, 2013

If I buy this kit and a bare 9 inch 56 wide housing will you weld the brackets on the housing at no charge?

Answers

July 03, 2013
Jason
With just the purchase of a four bar kit Speedway will not weld the brackets on the rear end. With differences in frame widths and ride heights correct location would be difficult to determine. If you buy one of our chassis with the rear end option then the brackets are welded on as a free service as we know when in our jig the location and pinion angle would be correct.
1 answers

Can the rods threaded so they can be cut shorter for a tight installation?

April 09, 2011

Can the rods threaded so they can be cut shorter for a tight installation?

Answers

April 13, 2011
Craig
On our four bar kit part # 91649050 it is possible to shorten the bars and rethread them. You would need to drill the inside of the tube to the right diameter for the tap and then have a 5/8"-18 RH tap to cut the new threads into the tube.
1 answers

What size are the bolts thaat hold thr 4 bars ?

January 15, 2011

What size are the bolts thaat hold thr 4 bars ?

Answers

January 20, 2011
Pat
These are ½ 20 bolts by 2 ½ long.
1 answers

What is the overall bar thickness? What is the bar wall thickness?

August 28, 2011

What is the overall bar thickness? What is the bar wall thickness?

Answers

August 29, 2011
QC
od of the tube is .8775 the wall thickness is .1500
1 answers

Is the rear end bracket's for a 3" housing?

Shreveport, LA
July 19, 2011

Is the rear end bracket's for a 3" housing?

Answers

July 20, 2011
Zach
(part number 91649050) Yes the rearend brackets are for a 3" axle tube.
1 answers

How do I adjust the pinion angle when I install this item? Do I only adjust the top bars or do I adjust the top and bottom bars? Is this done by taking them off or do they stay on and I adjust the joints by turning them in or out? I am assuming that if I adjust the pinion up I only turn the top bars, etc? Thank you

No Brains
June 02, 2015

How do I adjust the pinion angle when I install this item? Do I only adjust the top bars or do I adjust the top and bottom bars? Is this done by taking them off or do they stay on and I adjust the joints by turning them in or out? I am assuming that if I adjust the pinion up I only turn the top bars, etc? Thank you

Answers

June 03, 2015
Eric
Expert
The lower bar will have more effect on pinon angle than the upper will. In order to get the proper pinion angle you can adjust just the lower or both bars as necessary. Be sure to keep an eye on your wheel base as you are making these adjustments.
