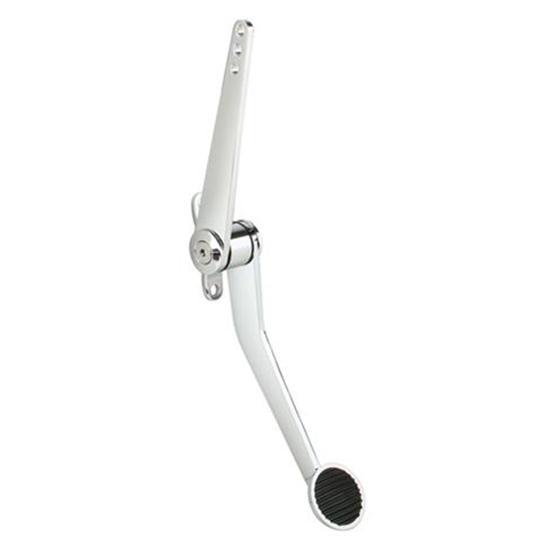

Mr Roadster Hot Rod Pedal, Solid Arm

SAME DAY SHIPPING! Order within the next 9 hours 26 minutes and receive same day shipping

Specs
Centerline of Holes:
2.00
Material Type:
Steel
Overall Width:
1.88
Overall Length:
11.75
Color:
Silver
Sold in Quantity:
Each
Finish:
Chrome
Pedal Length:
1.50
MFG. Part #:
702-9503
Garage Sale:
No
Notes
Length of arm from pivot point to top cable mounting hole center is 5.13". Length of arm from pivot point to end of pedal is 6.63". Three cable mounting holes 1/2" apart.
Mr Roadster Hot Rod Pedal, Solid ArmMr Roadster Hot Rod Pedal, Solid ArmMr Roadster Hot Rod Pedal, Solid ArmMr Roadster Hot Rod Pedal, Solid ArmMr Roadster Hot Rod Pedal, Solid Arm
Mr Roadster Hot Rod Pedal, Solid Arm

Click image to enlarge

Speeday Motors Logo
X
Mr Roadster Hot Rod Pedal, Solid Arm

Details

Reviews

Q & A

What's in the Box

Fully adjusts angle of pedal and arm. Rubber pad inset. New solid arm design. Chrome plated.

This pedal is 6" from pivot to the center of the pedal pad on the spoon.
