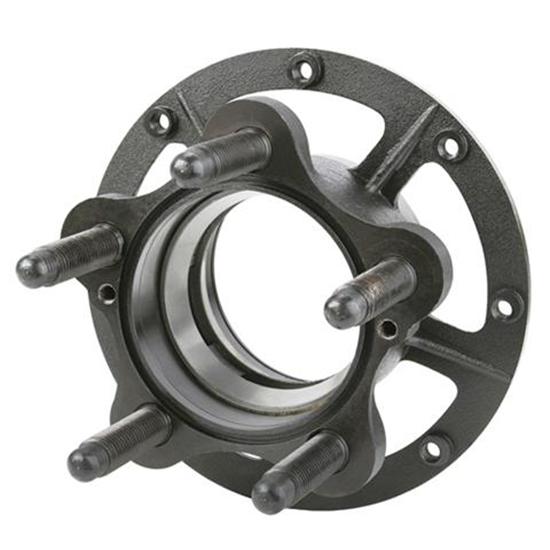

Speedway Grand National Rear Hub, 5 on 4-3/4 Inch

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Bolt Pattern:
5 on 4.75"
Thread Pitch:
5/8"-11
Hardware Included:
No
Weight:
7.5
Stud Length:
2.75
Speedway Grand National Rear Hub, 5 on 4-3/4 Inch
Speedway Grand National Rear Hub, 5 on 4-3/4 Inch
Speedway Grand National Rear Hub, 5 on 4-3/4 Inch
Speedway Grand National Rear Hub, 5 on 4-3/4 Inch
Speedway Grand National Rear Hub, 5 on 4-3/4 Inch

Click image to enlarge

Details

Reviews (1)

Q & A (3)

What's in the Box

Info

5 on 4-3/4" bolt pattern with studs and races. Direct replacement for Winters and others.

Item Details

5 on 4-3/4" bolt pattern

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Gary Rodriguez
Verified Purchaser
Verified Reviewer
Chula Vista Ca 91913

Grand National Hubs

March 10, 2016
The GN kit doesn't supply you with any bolts to put the rotors on with, or at least state that addition bolts are required and what size are needed. Mu recommendation would be to add this to the kit, it would cost that much more! Thank You G-Rodracing! Excellent Service and Great people to work with.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

will this hub work in place of my mittler bros. hub? i want to go from 5x5 to 5x4.75. all i know is that the rearend came out of a dirt modified.

porchpup
October 07, 2014

will this hub work in place of my mittler bros. hub? i want to go from 5x5 to 5x4.75. all i know is that the rearend came out of a dirt modified.

Answers

October 07, 2014
EricM
As long as your Mittler Brothers hubs use 2 1/2" ID bearings then this hub can replace your current ones. The drive flange and axle cap are different so you will also need the flange kit 91048380 as well as drive flange bolts 91048385-2 and o-ring 8027478. Most likely you would be better off getting the entire hub kit 91048400 since it comes with new bearings, seals, and lug nuts as well.
1 answers

what is the backspacing? I'm going to use these hubs to replace a standard axle with a 3" backspace steel hat, so what is the backspacing from the wheel mounting surface to the disc mount on these hubs?

Opus
Garland, TX, USA
March 04, 2014

what is the backspacing? I'm going to use these hubs to replace a standard axle with a 3" backspace steel hat, so what is the backspacing from the wheel mounting surface to the disc mount on these hubs?

Answers

March 04, 2014
EricM
This hub measures 2.590" from the wheel mount surface to the rotor mounting surface. Keep in mind that you will also have a drive flange pushing the wheel out by the thickness of the drive flange. Our Speedway drive flanges are .200" thick.
1 answers

does this hub fit a ford 9inch rearend for a openwheel modified?

April 04, 2011

does this hub fit a ford 9inch rearend for a openwheel modified?

Answers

April 07, 2011
Jason R.
It depends on the snouts you have on your housing. If you have hubs from Speedway Motors, Winters, Afco, Ace, or PEM these will fit.
