Speedway Corvair Pitman Arm

Price: $49.99 - $89.99
CORVAIR PITMAN ARM
Item #:
7022930
Speedway Corvair Pitman Arm
Click image to enlarge Click image to enlarge
No video at this time.

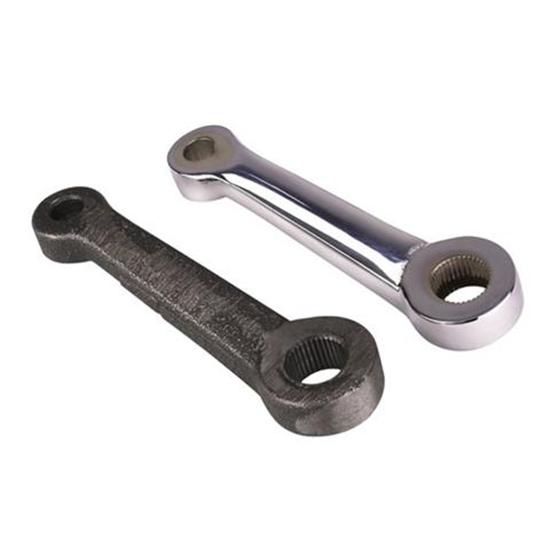

This is our forged 'new design' Corvair pitman arm. It measures approximately 7" end to end, approximately 5-3/8" from the center of the big hole to the center of the small hole. The arm has a side-to-side offset approximately 1-7/8". The small hole fits an early Ford tie rod end (such as our 910-02909) and it is half tapered from both sides so that the drag link can be mounted from either side.






  • 7022930-CHR
    Overall Length
    7.000"
    Center to Center
    5.375" (5 3/8")
    Hole Diameter
    0.864"
    Spline Count
    36
    Drop
    1.875" (1 7/8")
    Material Type
    Steel
    Finish
    Chrome
    Sold in Quantity
    Each
    Notes
    Small hole is tapered on each side to allow drag link mounting on either side.
  • 7022930-SS
    Overall Length
    7.000"
    Center to Center
    5.375" (5 3/8")
    Hole Diameter
    0.864"
    Spline Count
    36
    Drop
    1.875" (1 7/8")
    Material Type
    Stainless Steel
    Finish
    Polished
    Sold in Quantity
    Each
    Notes
    Small hole is tapered on each side to allow drag link mounting on either side.
  • 7022930-ZINC
    Overall Length
    7.000"
    Center to Center
    5.375" (5 3/8")
    Hole Diameter
    0.864"
    Spline Count
    36
    Drop
    1.875" (1 7/8")
    Material Type
    Steel
    Finish
    Zinc
    Sold in Quantity
    Each
    Notes
    Small hole is tapered on each side to allow drag link mounting on either side.
