Speedway Chrysler Type Multi-Leaf Spring, 175 Lb. Rate

Price:$84.99
Speedway Chrysler Multi-Leaf Spring - 175#
Price:
$84.99
EA
In Stock
Item #:
91720230
Item Details:
Front Bolt: 5/8" Rear Eye: 1"
Approx Lbs/Inch: 175
True Arch: 6.5

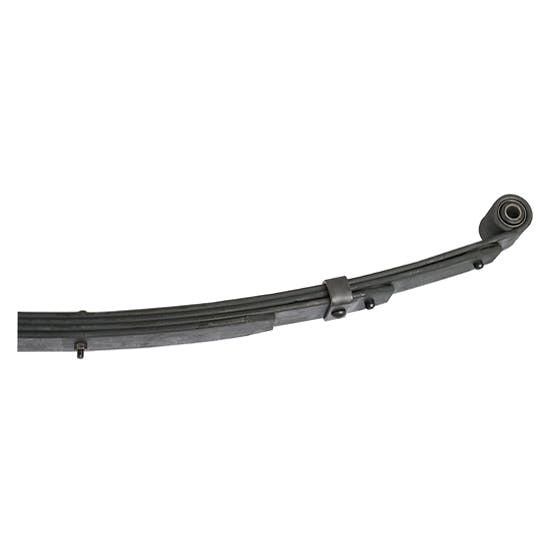

Speedway Chrysler Type Multi-Leaf Spring, 175 Lb. Rate
Click image to enlarge Click image to enlarge
  • Speedway Chrysler Type Multi-Leaf Spring, 175 Lb. Rate
  • Speedway Chrysler Type Multi-Leaf Spring, 175 Lb. Rate
  • Speedway Chrysler Type Multi-Leaf Spring, 175 Lb. Rate
No video at this time.


Speedway circle track racing multi-leaf Chrysler-type springs offer consistent quality at a great price! These leaf springs feature a 4-leaf design and are made from premium spring steel. Leaf ends are diamond cut and include slider pad inserts to reduce friction. Includes rubber front bushing.

Made in the U.S.A.

Application Chart (GIF)


  • 91720230
    Overall Width
    2.500" (2 1/2")
    Spring Height (Underside)
    6.500" (6 1/2")
    Length Eye to Eye
    53.000"
    Material Type
    Steel
    Sold in Quantity
    Each
    Notes
    Front bushing to locating pin is 20-1/2". Rear bushing to locating pin is 35".
