Speedway Chevy Mini Starter, 2.0 kW, Chrome

Specs
Material Type:
Aluminum
Weight:
190
Sold in Quantity:
Each
Finish:
Chrome
Garage Sale:
No
Speedway Chevy Mini Starter, 2.0 kW, ChromeSpeedway Chevy Mini Starter, 2.0 kW, ChromeSpeedway Chevy Mini Starter, 2.0 kW, ChromeSpeedway Chevy Mini Starter, 2.0 kW, ChromeSpeedway Chevy Mini Starter, 2.0 kW, Chrome

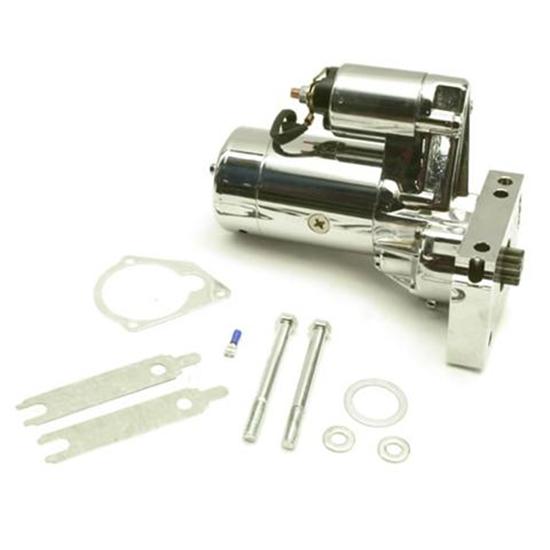

Speedway Chevy Mini Starter, 2.0 kW, Chrome

Click image to enlarge

Speeday Motors Logo
X
Speedway Chevy Mini Starter, 2.0 kW, Chrome

Details

Reviews

Q & A

What's in the Box

High torque, high output motors and gear reduction drive design spins the engine over faster, with 50% more cranking torque and LESS amp draw than a stock starter! Compact, offset design gives more header and chassis clearance. Perfect for high compression or super charged Chevy engines.

Straight mount 6061-T6 aluminum mounting plates work with 153 or 168 tooth flywheels on Chevy V8 or 90° V6. Works on blocks with angle bolt starter flange by drilling and tapping one hole.

Only 1-1/2 lb. heavier and 1" longer than the 1.4 kW starter.

910-66259 Instructions (PDF)

Item Details

190 ft. lbs.

You may also be interested in:

Speedway Chevy Mini Starter, 2.0 kW, Plain
                        High torque, high output motors and gear reduction drive design spins the engine over faster, with 50% more cranking torque and LESS amp draw than a stock starter! Compact, offset design gives more header and chassis clearance. Perfect for high compression or supercharged Chevy engines.

Straight mount 6061-T6 aluminum mounting plates work with 153 or 168 tooth flywheels on Chevy V8 or 90° V6. Works on blocks with angle bolt starter flange by drilling and tapping one hole.

Only 1-1/2 lb. heavier and 1" longer than the 1.4 kW version.

From the centerline of the mounting bolt holes to the end of the starter is 7-3/4"

Chevy Mini Starter Installation Instructions (PDF)

Speedway Chevy Mini Starter, 1.4 kW, Chrome
                        High-torque, 1-1/2 HP high output motors and gear reduction drive design spins the engine over faster, with 50% more cranking torque and LESS amp draw than a stock starter! Compact, offset design gives more header and chassis clearance. Perfect for high compression or supercharged Chevy engines.

Straight mount 6061-T6 aluminum mounting plates work with 153 or 168 tooth flywheels on Chevy V8 or 90° V6. Works on blocks with angle bolt starter flange by drilling and tapping one hole.

910-67439 Instructions (PDF)

Speedway Chevy Polished Aluminum Starter


If you want good looks and function, this is the starter for you. This aluminum starter has the solenoid built-in and the nose piece can be indexed to allow header clearance in most applications. With 200 ft. lbs. of torque, this polished beauty will be the perfect finishing touch for your pride and joy.

Fits both S/B and B/B Chevy.

Instructions (PDF)

Tuff Stuff Chevy Super-Mini Starter, 153 or 168 Tooth Flywheel


These are called "super" starters because they put out a whopping 2.6 hp. If you don't want to worry if your starter will crank over your high compression engine, get one of these. Choose plain black or chrome finish.

  • Works with 153 or 168 tooth flywheels
  • Small and Big Block Chevy engines
  • Works with big cubic inch high compression engines
  • Generates 2.6 horsepower
  • 1.6 kilowatts
  • Gear Reduction
  • Choose either:
    • PLN = Black finish
    • CHR= Chrome finish
Tuff Stuff Super-Lite Chevy Starter


This is the smallest, lightest mini starter made for Chevy engines. Weighing in at only 7.5 lbs., this starter allows you to index it to clear headers or exhaust. It has a 6:1 gear reduction and has a permanent magnet motor rated at 1.6 hp.

Available in plain or chrome finishes. Fits 153 or 168 tooth flywheels.

Quick Disconnect Harness for Mini Starters


This slick little wiring harness is just the ticket for those of you that change engines often or if the solenoid is hard to get at. Just unplug and drop the starter out. Simply snaps on the solenoid and features a weather pack connector to ensure a corrosion free connection.

NOTE: Does not fit Powermaster XS style starter.

Polished Aluminum Chevy Compact Mini Starter Heat Shield/Cover


Aluminum heat shields are a must for any Chevy race engine. Prevents the heat of your exhaust from cooking the starter and solenoid. Easy to install.

Cover fits Speedway starter motors # 91067440 and 91067439.
