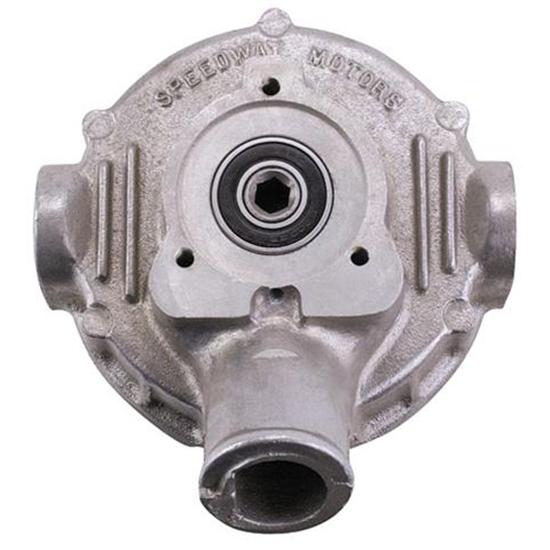

Speedway Cam-Driven Water Pump Kit

Price:$229.99
Speedway Cam-Driven Water Pump Kit
Price:
$229.99
EA
In Stock
Item #:
91615951
Speedway Cam-Driven Water Pump Kit
Click image to enlarge Click image to enlarge
  • Speedway Cam-Driven Water Pump Kit
  • Speedway Cam-Driven Water Pump Kit
No video at this time.


Cam-driven with the shaft protruding through the pump. This unit allows adaptation of Hilborn, Enderle and various other styles of fuel and/or oil pumps for use with direct drive. Works well for a relocated belt driven pump.

916-15951 Instructions (PDF)

  • 91615951
    Mounted Length
    3.740"
    Hose ID
    1.570"
    Outlet Fitting
    1/2" NPT
    Material Type
    Aluminum
    Finish
    Natural
    Weight
    3.650 lbs.
    Sold in Quantity
    Each
    Notes
    Shaft size is a 3/8" allen key style. Bolt hole pattern on the engine side is 4 on 2.81". On the side for the fuel pump mount, there are three bolt holes for various fuel pumps.
