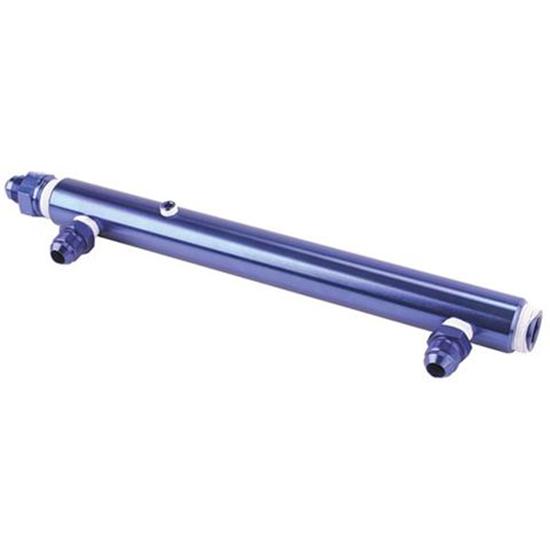

Speedway Aluminum Fuel Log for Demon Carburetor

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Overall Length:
12.00
Color:
Blue
Sold in Quantity:
Each
Finish:
Anodized
Overall Diameter:
1.26
Outlet Fitting:
AN-8
Notes
Fuel log is plugged on the back with a 3/4" NPT plug. Also contains a 1/8" NPT plug where a fuel pressure gauge can be added.
Speedway Aluminum Fuel Log for Demon Carburetor
Speedway Aluminum Fuel Log for Demon Carburetor

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Ensures adequate fuel pressure to carburetor and helps eliminate fuel starvation problems. Fuel pressure is regulated after carburetor has been supplied and not before. Must use return fuel line to take full advantage of benefits.

Features AN8 inlet and two AN8 outlets.  Threaded 3/4" NPT (plugged) on back that can be used for a return line. Also has 1/8" NPT outlet for fuel pressure gauge, fittings sold separately.

Item Details

Center to Center of Outlets Measures 9-5/8"

You may also be interested in:

Polished Aluminum Fuel Log
SKU-91011590


Aluminum fuel log complete with flexible AN 8 female swivel fittings ready for easy installation to Holley model 4150 4 bbl. carb. #8 pushlock on inlet eliminates extra fittings.

910-11590 Instruction Sheet (pdf)

Speedway Aluminum Fuel Log for Holley Carburetor
SKU-91011595


This fuel log ensures adequate fuel pressure to carburetor and helps eliminate fuel starvation problems. Fuel pressure is regulated after carburetor has been supplied, and not before. Must use return fuel line to take full advantage of benefits.

Features -8 AN inlet and two -8 AN outlets. Threaded 3/4" NPT (plugged) on back that can be used for a return line. Carburetor fuel line also has 1/8" NPT outlet for fuel pressure gauge (fittings sold separately).

  • 9-1/4" from fitting to fitting
  • Standard Holley spacing is 9-1/4"
Professional Products 10415 Holley 4150 Dual Feed Fuel Line Kit, -8 AN
SKU-91011602
                        These dual feed fuel line kits give you the looks, performance and flexibility your car deserves. Fuel log features -8 AN inlet, 1/8" NPT tapped fuel pressure gauge port, and allows you to have a fuel tank return if needed.

Fuel line fits Holley 4150 style Double Pumper carburetors with 7/8"-20 inlets.

Mr Gasket 1575 Demon Carb Chrome Dual-Feed Fuel Line
SKU-5501575


This chrome fuel line kit fits Race Demon, Speed Demon, & Road Demon carburetors. Mandrel bent 3/8" dual feed fuel line allows maximum fuel flow with minimal restriction. The chrome plated finish adds a special touch for custom or race applications.

  • Engineered for competition use
  • Eliminate fittings and adapters, with 3/8" hose barb
  • Center to center:  9-5/8"
  • Hose outlet nipple:  3/8"
  • Includes 9/16"-24 male and 5/8"-18 IFF carb fittings
  • Crush washers included
  • Fits Demon carburetors
Professional Products 10416 Demon Carbs Dual Feed Fuel Line Kit, -8 AN
SKU-91011604
                        These dual feed fuel line kits give you the looks, performance and flexibility your car deserves. Fuel log features -8 AN inlet, 1/8" NPT tapped fuel pressure gauge port, and allows you to have a fuel tank return if needed.

Fuel line fits Demon carburetors with 9/16"-24 inlets.

Adjustable Fuel Log for Demon Carbs
SKU-91011605


These CNC aluminum fuel logs are adjustable which allows them to fit carbs easier. It is designed to permit removing/replacing either bowl (or both) without having to use a wrench on the fuel line. It does NOT have a return style log. A double o-ring in the slide prevents leaks.

  • Comes with a barb for a 7/16" hose
  • 1/8" NPT female port w/ plug on inlet side
  • 1/8" NPT female port w/ plug on outlet side
  • 9-5/8 Inch Centers
Demon 491978 Carb To -8 AN Fuel Line Fitting
SKU-6172111


AN 8 fitting for Demon carburetor.

Effective Monday 2-21-11 this part is now offered without a warranty and is sold "as is".

Female Aluminum Swivel Coupler, -8 AN
SKU-6174001


Female aluminum swivel coupler for 37° AN fittings.

  • -8 AN female adapter
  • Straight style fuel line hose connector/coupler
  • Lightweight aluminum hose ends are completely reusable, and interchangeable
  • 37° angled sealing surface guarantees a positive anti-leak seal
  • Available in a Red/Blue corrosion resistant finish

Fitting Thread Application Chart (GIF)
