Speedway Adjustable Small Block Chevy Aluminum Short Water Pump

Price:$89.99
Speedway Adjustable S/B Chevy Aluminum Short Water Pump
Price:
$89.99
EA
In Stock
Item #:
91015582

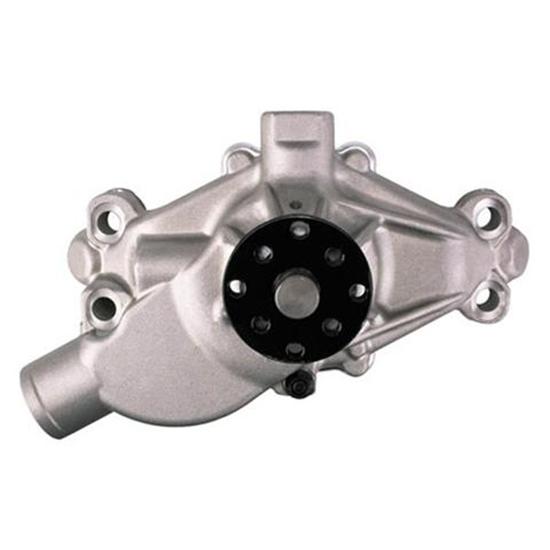

Speedway Adjustable Small Block Chevy Aluminum Short Water Pump
Click image to enlarge Click image to enlarge
  • Speedway Adjustable Small Block Chevy Aluminum Short Water Pump
  • Speedway Adjustable Small Block Chevy Aluminum Short Water Pump
  • Speedway Adjustable Small Block Chevy Aluminum Short Water Pump
No video at this time.


Speedway's adjustable water pump is tried, tested and true. It has great flow, superior quality and standard features that are typically only available on water pumps costing twice as much. State-of-the-art aluminum casting and a precision impeller provide equal flow to both cylinder banks. If you're using a cog belt on your race car, this is the pump you want since it's adjustable. The 1/2" mount holes in this pump are larger than normal, allowing it to be moved up or down slightly to help with belt tension.

  • Adjustable mounting holes
  • High flow and pressure rates
  • Adjustable cam stop
  • Extra-thick fan hub
  • 3/4" inch heavy duty bearing
  • Pressed-fit and set-screw-retained fan hub
  • Large-diameter shaft and reinforced housing make it ideal for oval-track applications

910-15582 Instructions (PDF)

  • 91015582
    Mounted Length
    5.630"
    Heater Inlet Size
    1/2" NPT
    Hose ID
    1.830"
    Shaft Diameter
    0.750" (3/4")
    Shaft Length
    0.860"
    Gasket(s) Included
    Yes
    Material Type
    Aluminum
    Finish
    Natural
    Weight
    6.250 lbs.
    Sold in Quantity
    Each
    Notes
    Clearance from back of pump to engine block mount is 1.00" Pulley hub is retained with a set screw. Pump has bosses that can be drilled/tapped on either side for bypass hose attachment.
  1. Water Pump ID Illustration (GIF)
  2. Can also be used as a high-performance replacement on 1971-1982 Corvettes.
