Speedway 1967-69 Camaro/Firebird Aluminum Radiator

Specs
Material Type:
Aluminum
Overall Height:
18.50
Overall Width:
25.75
Transmission Cooler:
Yes
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.25
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Left
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
17.25
Core Width:
22.00
Core Thickness:
2.00
Filler Neck Height:
1.13
Radiator Style:
Single Pass
Notes
1/4" NPT fittings for transmission cooler. 1.25" wide mounting tabs on both sides.
Speedway 1967-69 Camaro/Firebird Aluminum RadiatorSpeedway 1967-69 Camaro/Firebird Aluminum RadiatorSpeedway 1967-69 Camaro/Firebird Aluminum RadiatorSpeedway 1967-69 Camaro/Firebird Aluminum RadiatorSpeedway 1967-69 Camaro/Firebird Aluminum Radiator

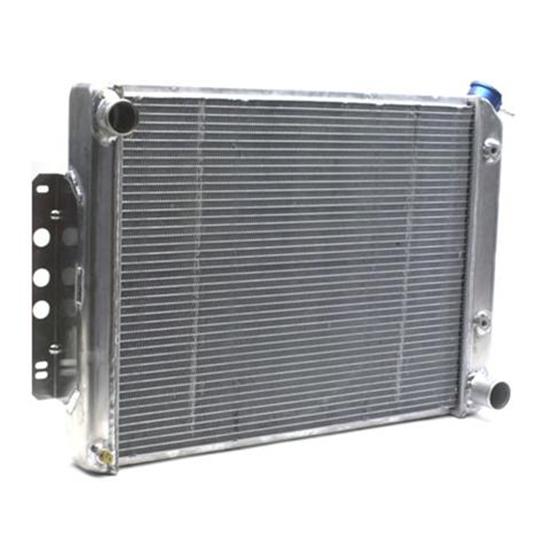

Speedway 1967-69 Camaro/Firebird Aluminum Radiator

Click image to enlarge

Speeday Motors Logo
X
Speedway 1967-69 Camaro/Firebird Aluminum Radiator

Details

Reviews

Q & A

What's in the Box

These all aluminum, crossflow radiators feature 2 rows of 1" tubes for superior cooling over stock style radiators. They are 100% welded construction and include a built-in transmission cooler.

NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.

Measurements listed are overall which includes radiator tanks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Style D in catalog

You may also be interested in:

Dual 10 Inch Fan Shroud Combo, 21.75 W x 17.5 H


These universal fit dual fan/aluminum shroud assemblies fit many applications. Features heavy duty SPAL fans.

Radiator/Shroud Style Guide

917-4013 Diagram (PDF)

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Aluminum Fan Shroud Kit for 28 Inch Radiator, Engine Driven Fan


These universal fit aluminum fan shroud kits can be built to fit many applications with a belt-driven fan. The adjustable collar will accommodate 15"-20" fan diameters.

Measures 21-3/4" x 19-1/2" tall x 2-5/8" thick. Works well with Speedway 28" wide radiators

  • Made for exact fit of many Muscle Car and Hotrod radiators
  • Allows the installer the choice of off center, side-to-side and above the radiator fan positioning
  • For crossflow or downflow radiator mounting
  • Includes fully-formed shroud of .063" lightweight aircraft aluminum
  • 3" trimmable collar
  • Adjustable collar; adjusts for 15-20" fan diameters
  • Includes all the necessary hardware and mounting instructions
  • Shroud made of 14 gauge aluminum
  • Measures 21-3/4" wide x 19-1/2" tall x 2-5/8" thick (approximate)
  • Fan Ring, 3” x 65”
  • Flat tab, 3” x 7”
  • Brackets, 90º (6)
  • Screws (6)

Fan Shroud Installation Instructions (PDF)

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

U-Weld-It Custom Aluminum Radiator Kit, 28 x 19 Inch


Build and design your own radiator with these aluminum u-weld-it kits.  They come with everything you need to create a custom radiator to fit your specific application.  These radiators can be used as either a cross-flow or down-flow.

  • Overall Dimensions:  27-1/8" x 19-9/16" x 3-1/8"
  • Core Dimensions:  22-1/2" x 18" x 2-1/4"

Kit Includes:

  • (1) 1-1/2" Hose connection
  • (1) 1-3/4" Hose connection
  • (1) Billet Aluminum filler neck
  • (1) Overflow tube
  • (1) Weld-on Bung
  • (1) Draincock

Note: This kit requires aluminum welding and fabrication.  Kit is sold as an unfinished product.  Standard warranties DO NOT APPLY.

Round Chrome Radiator Pressure Cap, 15 Lbs


Pressure caps for radiators featuring 15-pound capacity. Chrome finish.

  • 2-3/8" O.D. of cap top
  • 2-1/4" I.D. of cap top
  • Will fit a standard radiator neck
  • Sealing surface (which sits inside the neck) is 1-1/2" O.D.
  • Cap sides are 7/16" tall

Learn more about cooling systems, how to choose the proper pressure cap, and how they work by reading our tech article. Cooling System Principles

Hex Chrome Radiator Cap, 15 Lbs


This unique hex style cap for radiators. Available in 15 lb. capacity. Brilliant chrome finish.

  • 2-3/8" O.D. of cap top
  • 2-1/4" I.D. of cap top
  • Will fit a standard radiator neck
  • Sealing surface (which sits inside the neck) is 1-1/2" O.D.
  • Cap sides are 7/16" tall

Learn more about cooling systems, how to choose the proper pressure cap, and how they work by reading our tech article. Cooling System Principles.
