Speedway GM A/B-Body Aluminum Radiator

SAME DAY SHIPPING! Order within the next 16 hours 40 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
18.50
Overall Width:
33.00
Transmission Cooler:
Yes
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.00
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Left
Inlet Size:
1.25
Outlet Location:
Lower Right
Tube Size:
1.00
Filler Neck Height:
1.00
Radiator Style:
Single Pass

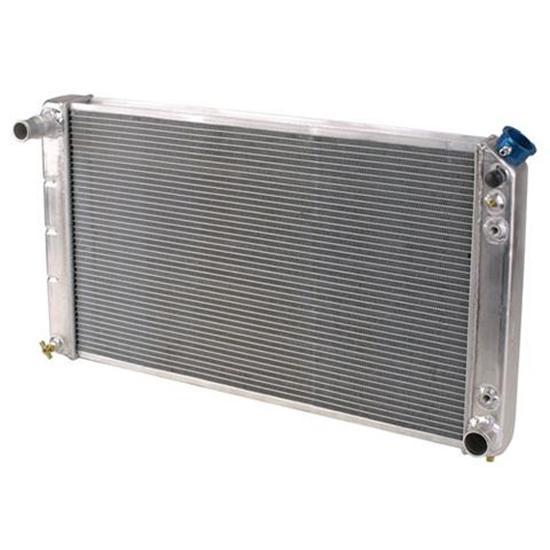

Speedway GM A/B-Body Aluminum Radiator

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These all aluminum radiators features two rows of 1" tubes, all welded construction and includes a built-in transmission cooler.

Fits

  • 1968-72 Chevelle/Malibu
  • 1970-77 Monte Carlo
  • 1974-77 Buick Regal
  • 1966-77 Olds Cutlass
  • 1966-77 Pontiac Grand Prix
  • 1968-77 Pontiac LeMans/GTO
  • 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
  • 1973-90 Chevy/GMC Truck

NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.

Fan and shroud assemblies available separately.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Application

Fits

  • 1968-72 Chevelle/Malibu
  • 1970-77 Monte Carlo
  • 1974-77 Buick Regal
  • 1966-77 Olds Cutlass
  • 1966-77 Pontiac Grand Prix
  • 1968-77 Pontiac LeMans/GTO
  • 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
  • 1973-90 Chevy/GMC Truck

Item Details

33" Wide, 18-1/2" Tall
Style A

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Wide
Cherryville, NC
Product Rating

KEEPS IT COOL!

August 29, 2010
I have a 1984 Chevy C10 and this radiator was not tall enough so I made new top mounting brackets. Otherwise this is an outstanding product and it works great. The tranny cooler fittings were located with perfect spacing. I can't say enough good about this radiator!
Pros:
  • OUtstanding quality
  • All pipes and hoses fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
9175026

Product Q&A

4 questions : 4 answers

1 answers

There are 2 set of ports on the passenger side of p/n 917-5026. One set is for trans cooler, but what is the 2nd set for?

groods
October 26, 2013

There are 2 set of ports on the passenger side of p/n 917-5026. One set is for trans cooler, but what is the 2nd set for?

Answers

October 28, 2013
EricM
The GM A/B body radiator has the normal GM inlet and outlet along with the transmission cooler utilizing 2 of the holes on the passenger side tank, one hole for the temp sender, and the other port for the return heater hose.
1 answers

Can this radiator have an engine oil cooler and a trans cooler added as an option?

raybil50
Flint, MI, USA
June 28, 2013

Can this radiator have an engine oil cooler and a trans cooler added as an option?

Answers

July 01, 2013
Jason
This GM A/B body aluminum radiator does include a built in transmission cooler. Sorry, we do not offer the option for oil cooler with this radiator. Speedway does offer separate engine coolers under part #106LL7B or 20070265
1 answers

Is this compatible with automatic transmision lines.

fred
douglasville,ga
May 08, 2011

Is this compatible with automatic transmision lines.

Answers

May 14, 2011
Craig
This particular radiator comes with the automatic transmission cooler installed, it will work with automatic transmission lines as well. The inlet threads on the cooler are a 1/2"-20.
1 answers

Do you think this radiator would keep a 454 w/ac in a 1976 Impala cool?

gy
May 01, 2015

Do you think this radiator would keep a 454 w/ac in a 1976 Impala cool?

Answers

May 01, 2015
Eric
Expert
Yes this radiator should work fine to cool a 454 engine.
Page 1 of 1
