Speedway 10 Inch Hybrid Brake Rotor for Pinto

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Cast Iron
Weight:
14.80
Sold in Quantity:
Each
Finish:
Natural
Bolt Pattern:
5 on 5"
Thread Length:
1.38
Stud Length:
2.05
Stud Diameter:
0.63
Thread Pitch:
5/8"-11
Flange Diameter:
6.37
Rotor Diameter:
10.00
MFG. Part #:
9850-6505
Rotor Thickness:
0.81
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Notes
The studs are installed as 5 on 5.00", but drilled out for 5 on 4.75". Flange height is 1.75"

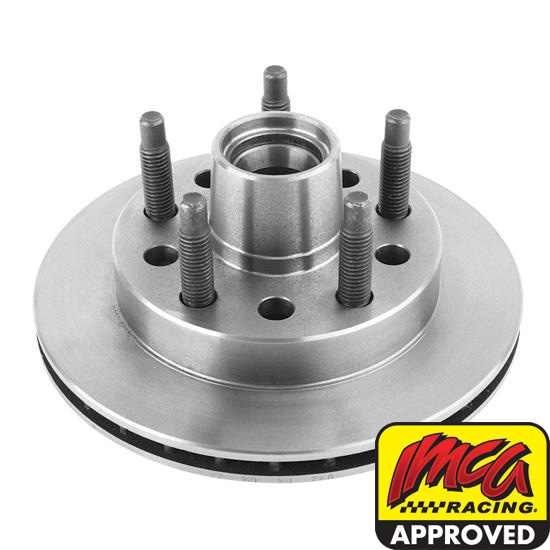

Speedway 10 Inch Hybrid Brake Rotor for Pinto

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

5/8" Studs Installed - All coarse threads are quick start style.

Our new 10" hybrid rotor is designed to fit the Pinto spindle. Complete with inner and outer races and 5/8" studs. Pre-drilled holes include 5 on 5" bolt circle spacing.

This brake rotor is designed for dirt track applications and should NOT be used for asphalt racing.

Item Details

IMCA Approved

Notes

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

OldBuzzard1
Verified Purchaser

Works well.

October 06, 2013
Rotor works well, but you must keep the alignment of the calipers straight, the mounting brackets are prone to bending.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

What bearings are supposed to be used with with this rotor?

Jake091625
St. Louis, MO, USA
December 27, 2013

What bearings are supposed to be used with with this rotor?

Answers

December 28, 2013
EricM
Our bearing and seal kit 91031000 is used with this rotor. That bearing kit will work for installing this rotor on Mustang II or Pinto spindles.
1 answers

I see a second set of holes were the stud are. are those holes a larger bolt pattern then were the stud are placed?

Joe
DRB Automotive in Granite City,Il
July 27, 2012

I see a second set of holes were the stud are. are those holes a larger bolt pattern then were the stud are placed?

Answers

July 27, 2012
Jason
This rotor is a 5 on 5" but is also drilled for 5 on 4-3/4"
Page 1 of 1

You may also be interested in:

Bearing-Seal Kit for Two Mustang II Brake Rotors
(Part #91031000)


This bearing and seal kit includes two inner wheel bearings, two outer wheel bearings and two inner grease seals. This kit is enough for two brake rotors and is intended to be used with a new rotor installation as this kit does not include the bearing races or cups.

If your project willl be making use of used rotors, you will require new bearing races or cups.  Therefore you will need to purchase the bearing and seal kit # 910-31052 suggested below in place of kit # 910-31000.

Works with Mustang II/Pinto and Granada rotors using Mustang II/Pinto spindles only. It will not work for installing Mustang II/Pinto brake rotors on 1949-1954 Chevy spindles. Not for use with early Chevy spindle brake conversion kits.

-Large Bearing-
Thickness: .656"
Upper OD: 1.900"
Lower OD: 2.150"
Bearing ID: 1.375"

-Small Bearing-
Thickness: .651"
Upper OD: 1.380"
Lower OD: 1.570"
Bearing ID: 0.864"

Never install new hubs with old bearings.

Item Details

For Mustang II/Pinto and Granada rotors using Mustang II spindles.
AFCO 9850-6505 10 Inch Hybrid Brake Rotor for Pinto
(Part #10698506505)


This brake rotor combines the strength of a 75-81 Ford-style hub (Granada) with the lighter design of the metric brake rotor for an unbeatable lightweight and durable package.  AFCO engineers designed this rotor with the latest CAD software and testing methods.  Manufactured to withstand rigorous racing environments, the AFCO Hybrid Rotor uses totally new castings designed and built specifically for racing.  It will remove up to 12 lbs. of sprung weight on the front of your car to improve front to rear weight bias and wheel control.

  • Uses GM metric caliper
  • Ford 74-80 Pinto Spindle
  • Strong and Lightweight
  • Safely remove up to 13 lbs from the front of your car vs stock rotor
  • 14.8# total rotor weight with 5/8" studs
  • 10.13" diameter
  • .813" thickness (pad spacer recommended)

Instructions (PDF)

Item Details

5/8" Coarse Studs on 5" x 5" Pattern
Wilwood 160-9240 HP Modified Hybrid Hub/Rotor, Vented w/Studs, 10.15
(Part #8351609240)

  • New castings
  • Exact tolerances
  • Come standard with races and 5/8” coarse wheel studs installed
  • 5 on 5” bolt pattern
  • Ford Hybrid version is 10.15” diameter by .810” thick rotor that fits the 1974-1980 Pinto spindles
Speedway Right Front Caliper Bracket, For 10 Inch Hybrid Rotor
(Part #91641012-R)
                        Use with Pinto spindle, 10" hybrid rotor and GM 1978-up "Metric" caliper. Available for left or right side.

Seal: 1.938x2.5x.28 STK Pinto
(Part #912S19221)
