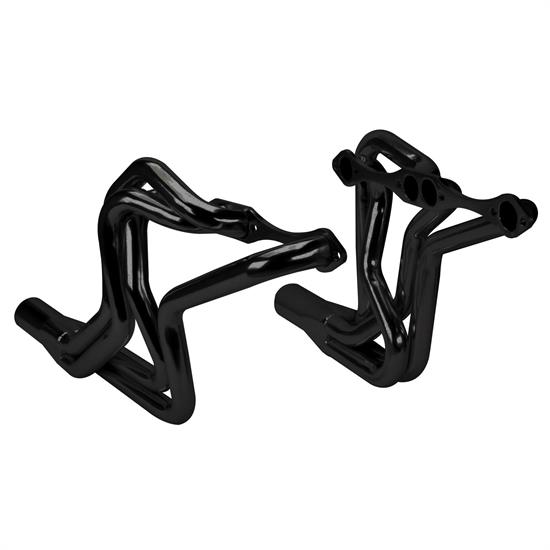

Speedway SB Chevy Street Stock Headers, 1-5/8, 3 In Collector

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Flange Style:
Oval Port
Header Tube Type:
Chassis
MFG. Part #:
910-13185
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.623
Port Height:
1.66
Port Width:
1.38
Flange Thickness:
.36
Collector Diameter :
3.00
Header Dimension A:
4.500
Header Dimension B:
18.250
Header Dimension C:
30.000
Drivers Side Dimension A:
4.35
Drivers Side Dimension B:
17.00
Drivers Side Dimension C:
29.63
Passenger Side Dimension A:
5.00
Passenger Side Dimension B:
16.35
Passenger Side Dimension C:
33.38
Collector Length:
8.25
Notes
These should work along with hydraulic bearings or slave cylinders for cluch release. Will also work with both straight or angle plug heads.
Speedway SB Chevy Street Stock Headers, 1-5/8, 3 In Collector
Speedway SB Chevy Street Stock Headers, 1-5/8, 3 In Collector
Speedway SB Chevy Street Stock Headers, 1-5/8, 3 In Collector

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These Small Block Chevy street stock headers are for 1972-1987 Malibu, Monte Carlo, Grand Prix, Cutlass and Regal. Also fits a 1970-1981 Camaro.

  • Can use solid side or rear mounts
  • Clears side and rear engine mounts (motor must be in stock location)
  • Will fit straight or angle plug heads
  • Will not clear stock manual clutch linkage ball or air condition box
  • Must use short oil filter such as WIX 51069, AC PF24, or FRAM PH30

Item Details

Header Dimension Explanation Chart

Customer Reviews

Rated 3 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

dan surra
Verified Purchaser
Verified Reviewer
kersey, pa

not the best fitting

July 20, 2015
we need to run street type headers that fit inside the frame rails. The drivers side fit right in. Passenger side..... a real pain. I had to bend header and cut control arm mount to fit. a lot of work. AND can't get a socket on 1 spark plug. installation/removal of plugs must be done with a wrench. Also, had to spend $100 on header wrap and asbestos sleeves to keep the plug wires from burning off.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Smitty
Kansas City, MO

superflow lives up to its name

May 21, 2010
great performance for the money. although these are metric car headers, they fit my 69 chevelle (with zero setback) with no problems. no mods needed.
Pros:
  • Fit my chevelle
  • Great performance for the
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

set back on motor???? my street stock division, its legal to set back motor as far as #1 spark plug to upper ball joint. so question is, will it create a problem having this set back?its an 81 z-28 front clip camaro....

Theshoe
Vancouver, WA, USA
October 24, 2013

set back on motor???? my street stock division, its legal to set back motor as far as #1 spark plug to upper ball joint. so question is, will it create a problem having this set back?its an 81 z-28 front clip camaro....

Answers

October 25, 2013
EricM
These headers will not fit when you have the engine set back as you describe. You may want to try a header like our part number 917-151. They are a universal set of headers that are designed for cars that have the engine set back 2 3/4" to 5". I am not sure if they will fit your particular car but they are the best shot at getting a set of headers for that much setback that I am aware of.
1 answers

Can you tell me how much these will stick out from the head? (Measure from the inside of the flange to the furthest out tube.) Also can you measure from the top down to the lowest part on the collector?

usafracer
North Pole AK
October 04, 2011

Can you tell me how much these will stick out from the head? (Measure from the inside of the flange to the furthest out tube.) Also can you measure from the top down to the lowest part on the collector?

Answers

October 05, 2011
Jason
Width of header at widest point from exhaust port - 5" Height of header from top of flange to lowest point - 18-3/4" Length of header from front of flange to collector - 33-3/4"
1 answers

will these fit a 73 c10? If so who has used these headers and are they a good product?

Nichols
Ritzville, WA
January 24, 2011

will these fit a 73 c10? If so who has used these headers and are they a good product?

Answers

February 03, 2011
Eric
The application info that I have is: 1972-1987 Malibu, Monte Carlo, Grand Prix, Cutlass and Regal. Also fits a 1970-1981 Camaro. It is possible that these could fit you pickup application, however they were not designed with that application in mind so you may run into some interference. These headers are a great “Bang for the Buck.”
