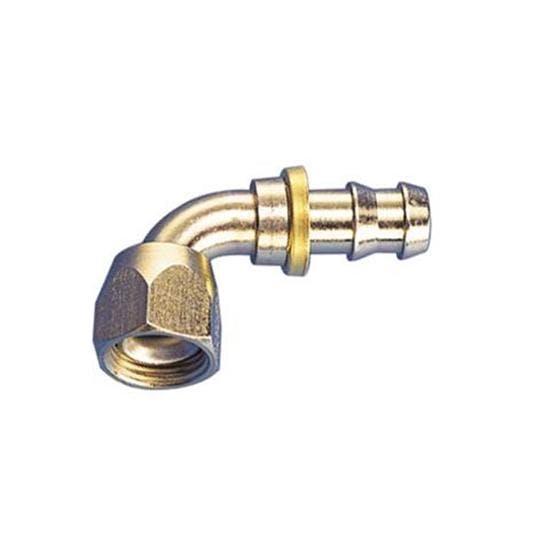

Socketless Reusable Push-On Hose End for -8 AN Fitting, 90 Degree

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Push-on style with 90° steel hose ends for use with AN fittings. Special construction assures a tight, leak-proof connection with maximum operating pressures up to 350 psi. Covers a wide variety of automotive fluid conveying applications, including air, water, gasoline, and fuel and lubricating oils.

Socketless Push-On Application Chart (GIF)

Socketless Push-On Assembly (GIF)

AN Thread Size Guide (GIF)

Fitting Thread Size Guide (GIF)

Notes

  1. Not recommended for hydraulic impulse applications.
  2. Not approved for air brake applications.
