Small Block Ford to 1953-1964 Ford Pickup Motor Mounts

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Height:
2.50
Overall Width:
8.50
Overall Length:
8.50
Sold in Quantity:
Kit
Finish:
Painted
Hole Diameter:
.50
Center to Center:
7.0
Package Length:
11.5
Package Width:
8.75
Package Height:
3.75
Package Weight:
12.411
Hardware Included:
No
Material Thickness:
.22
MFG. Part #:
4145
Garage Sale:
No

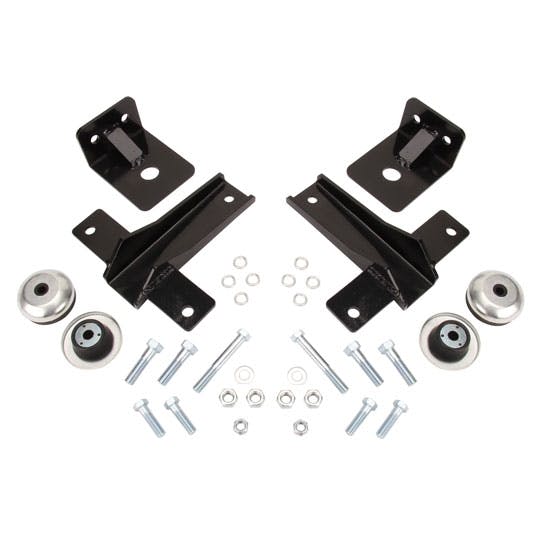

Small Block Ford to 1953-1964 Ford Pickup Motor Mounts

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Ford 221-351W V8s into 1953-1964 Ford pickup & panel trucks. Frame plates bolt-in.

Customer Reviews

Rated 4.6 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
5
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Erock
Verified Purchaser
Rosebud, MO

Does not come with instructions

July 12, 2015
Great product that is made well, but doesn't come with instructions to put it together.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

forgetthis
meadow utah

Works Great, easy and simple to use

September 30, 2013
put in a ford truck and could not have gone smoother. looks great also.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

amishmike
Strasburg, PA, USA

Nice compact mount system.

September 05, 2013
Compact motor mount to install small ford in any chassis. Easy to install compared to stock style mounts- no angled plates as original style mounts would require. Smaller size than original mount aids in clearance with exhaust and clutch linkage.
Pros:
  • Compact
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

FatherSon

Simple and easy.

November 11, 2012
Used this kit to put a small Ford in a '58 1 Ton in place of the 223. Worked great and couldn't have been easier. Instructions are basic but not hard to sort out what to do.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ed
Verified Purchaser
Bowling Green, Kentucky

Well made, [...]

November 25, 2010
Made by Trans-Dapt. The instructions are very rudimentary. Doesn't say how the rubber "biscuits" should be installed, not does it show a diagram of locating the adaptor. The instructions are GENERIC, even though the part is application specific. I'm an experienced builder, so I was able to figure it out pretty easily, but someone who is more of a novice will likely struggle with the instructions.
Pros:
  • Simple
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

fuelerbob
everett wa

great part

January 22, 2010
put a motor in my truck, ez and clean
Pros:
  • Inexpensive
  • EZ to install
  • Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

37truck
MA

Motor mopunts

January 22, 2010
I'm building a 1937 Frod Truck with a 351W. This setup works out great, I just needed to adjust the mount on the motor. Can't make one for the money.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

13 questions : 15 answers

1 answers

will this fit 64 econoline

flamin
colorado
March 12, 2015

will this fit 64 econoline

Answers

March 13, 2015
EricM
The pickup and the Econoline did not share the same frame platform and the mount kit for the pickup would not be a bolt in.
1 answers

Does the frame mounts go inside the top of the c channel No instructions in box

Guys
October 30, 2014

Does the frame mounts go inside the top of the c channel No instructions in box

Answers

October 30, 2014
EricM
Yes the frame mounts are designed to bolt inside of the frame C channel. We apologize for the confusion.
1 answers

Will this work with a 351 Cleveland? I am installing a 351 Cleveland engine in my 1955 Ford F100, will these mounts work for my engine in my truck?

burke117
Utah, USA
October 29, 2014

Will this work with a 351 Cleveland? I am installing a 351 Cleveland engine in my 1955 Ford F100, will these mounts work for my engine in my truck?

Answers

October 29, 2014
EricM
We apologize but this mount kit is for the small block 289, 302, and 351 Windsor but is not applicable to the 351 Cleveland. Sorry we do not have the mounts needed for your Cleveland.
1 answers

how do they mounts bolt in? Is this simply a bolt in application? Do I have to measure and drill my own holes? Are there any photos of installed units? Instructions? I am looking for a easy way to install a 289 or 302 into a 1955 f100. Thanks

burke117
October 20, 2014

how do they mounts bolt in? Is this simply a bolt in application? Do I have to measure and drill my own holes? Are there any photos of installed units? Instructions? I am looking for a easy way to install a 289 or 302 into a 1955 f100. Thanks

Answers

October 21, 2014
EricM
Depending on the desired location in your 55 pickup you will need to measure and drill 2 holes per side in the frame rails when installing this kit.
1 answers

will this motor mount kit work with a 1983 ford mustang motor I am trying to put a 1983 ford mustang motor with a rear sump oil pan in a 1945 international pickup

b1i9n4k5s
Hyrum, UT, USA
September 16, 2014

will this motor mount kit work with a 1983 ford mustang motor I am trying to put a 1983 ford mustang motor with a rear sump oil pan in a 1945 international pickup

Answers

September 17, 2014
EricM
This kit may be a good starting point for you but will certainly take some addition fabrication and modification to work in your 1945 International pickup.
1 answers

INSTRUCTIONS Hello I just bought this kit. Opened it up and no directions. I not sure and don't want to mess this up. Can someone help me??

cerescofireguy
Ceresco, NE 68017, USA
May 05, 2014

INSTRUCTIONS Hello I just bought this kit. Opened it up and no directions. I not sure and don't want to mess this up. Can someone help me??

Answers

May 06, 2014
EricM
We apologize for any confusion but with the variances in the vehicles it would be difficult to make exact instructions. We suggest bolting the engine portion to the block and lowering to the needed height. Then with the frame brackets in hand you can clamp them where desired and mark for drilling. In some cases the frame mount may need to be shortened and re-drilled for the correct width. The same applies to the brackets that bolt to the engine. This front engine mount layout is fairly similar to what yours will look like once completed: http://static.speedwaymotors.com/images/charts/How-EngineMounting.gif
1 answers

Will this work for a 1951 f600?

Mkbf600
Tx
March 16, 2014

Will this work for a 1951 f600?

Answers

March 17, 2014
EricM
This mount kit is for a small block from later years like the 302 into a 53-64 pickup and will not be a direct bold in for your 51. It could be a start in the fabrication process to put the engine in the desired location but up to the installer for the needed alterations.
2 answers

I'm boxing the frame to install mustang ll front end, will these mounts work with this install?? I'm planning on installing a Ford 302 with a C4 trans.

cousinjd
September 16, 2013

I'm boxing the frame to install mustang ll front end, will these mounts work with this install?? I'm planning on installing a Ford 302 with a C4 trans.

Answers

October 01, 2013
forgetthis
you will have to fab the frame side, but it will work
September 17, 2013
Jason
The small block Ford pickup motor mounts will not work unless the engine is slid back considerably, they will collide with the Mustang II cross member. Common mounts used by customers are number 91018045 for the small block Ford with a rear sump pan when installed in a Mustang II style front end.
1 answers

Do I mount this at the top of the inside of the frame on my 62 f100?

Fordman123
Aldan Pa
August 15, 2013

Do I mount this at the top of the inside of the frame on my 62 f100?

Answers

August 16, 2013
Jason
This 1953-'64 small block Ford frame bracket goes into the inside of the C-channel frame and the kit comes with instructions for location.
2 answers

will this adapt to a 1952 ford truck frame I want to install a 351w into my 1952 ford truck can I use these mounts

f1dgy
avonmore ontario canada
June 16, 2013

will this adapt to a 1952 ford truck frame I want to install a 351w into my 1952 ford truck can I use these mounts

Answers

October 01, 2013
forgetthis
yes
June 17, 2013
Jason
We apologize but currently we do not list availability of a bolt in motor mount kit for the 52 Ford pickup. To use 7204145 which is intended for the 53-64 you would need to modify the length on the frame and/or motor bracket length as needed.
Page 1 of 2
