Stewart Components 36114 S/B Ford SVO Stage 3 Water Pump, 5.45 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Material Type:
Sold in Quantity:
Water Pump Style:
Water Pump Type:
MFG. Part #:
Gasket(s) Included:
Garage Sale:
Overall Length:
Shaft Diameter:
Mounted Length:
Shaft Length:
Hose ID:
Mounted length is measured from the backing plate to the face of the fan mount.

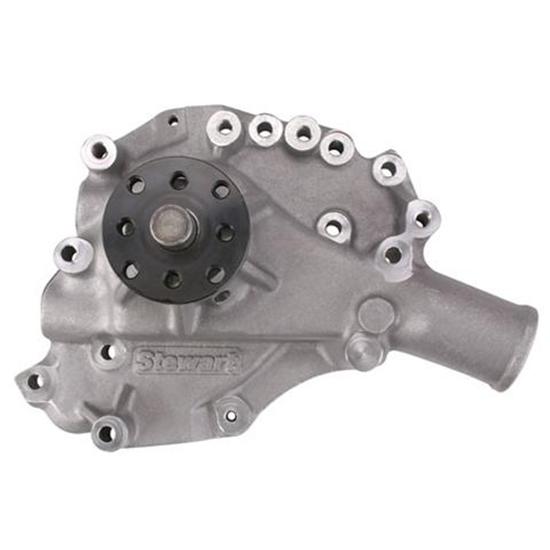

Stewart Components 36114 S/B Ford SVO Stage 3 Water Pump, 5.45 Inch

Click image to enlarge



Q & A

What's in the Box

These pumps are assembled with 356-T6 heat treated aluminum castings. Precision CNC machined components. The fan hubs are 1/2" thick and machined from billet steel. These pumps are preferred by many top engine builders for higher RPM applications.

  • Fan hub has a dual pattern for 1-1/4" and 1-1/2" center to center fan mounting patterns
  • Pump measures 5.581" from mounting point on block to front of hub flange
  • To end of the hub snout is an additional .710" for an overall length of 6.291"
These stage 3 water pumps feature 1/2" thick steel fan hub with set screw for positive positioning and 356-T6 heat treated aluminum casting. There is higher flow and pressure for better cooling as well as equal flow to right and left cylinder heads.  The 3/4" bearings offer 5 times the strength of standard bearings.  Precision impeller installed to exacting tolerances.  One year manufacturers warranty.

High Performance Water Pump Installation Instructions (pdf)


Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
