Small Block Ford Classic Roadster Headers, AHC Coated

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Height:
12.00
Sold in Quantity:
Pair
Finish:
AHC Coated
Tube O.D.:
1.63
Tube Length:
35.00
Port Height:
1.74
Port Width:
1.19
Flange Thickness:
.31
Flange Style:
Oval Port
Collector Diameter :
3.50
Header Dimension A:
13.50
Header Dimension B:
12.00
Header Dimension C:
35.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
16.55
Drivers Side Dimension B:
11.10
Drivers Side Dimension C:
34.88
Passenger Side Dimension A:
17.05
Passenger Side Dimension B:
10.35
Passenger Side Dimension C:
32.88
Collector Length:
9.00
Garage Sale:
No
Header Tube Type:
Roadster
Small Block Ford Classic Roadster Headers, AHC CoatedSmall Block Ford Classic Roadster Headers, AHC Coated

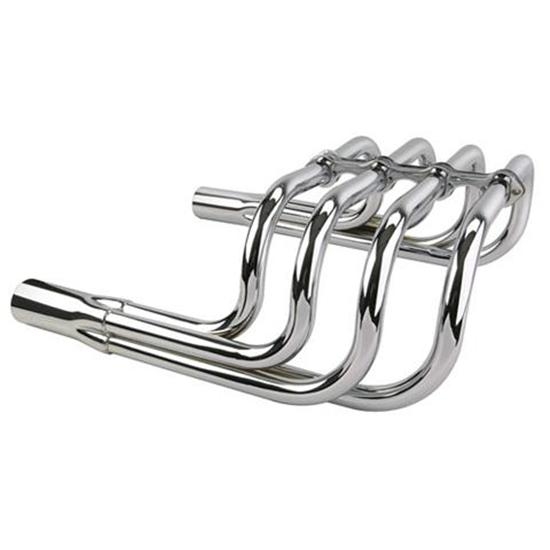

Small Block Ford Classic Roadster Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These small-block Ford headers have a classic, race-inspired shape that makes them perfect for T-bucket roadsters and similar hood-less street rods. The clean looks are backed up by quality construction and an easy-breathing design that can help unlock your Ford V8’s performance potential. These ceramic coated headers provide superior performance and durability.

  • For early street rod applications without hood sides
  • Routes exhaust outside the frame rail and along the side of the car
  • Manufactured from durable 16-gauge steel
  • Fits 289, 302 and 351 Windsor Ford V8s

Header Dimensions (GIF)

Notes

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300®® F.

Specs


Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles
