Small Block Ford 289-351W Lake Style Headers, Plain Steel Finish

SAME DAY SHIPPING! Order within the next 14 hours 3 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.63
Tube Length:
27.50
Port Height:
1.70
Port Width:
1.20
Flange Thickness:
.31
Flange Style:
Rectangular Port
Collector Diameter :
3.50
Header Dimension A:
7.50 - 16.75
Header Dimension B:
0
Header Dimension C:
27.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
16.70
Drivers Side Dimension B:
4.10
Drivers Side Dimension C:
27.00
Passenger Side Dimension A:
16.65
Passenger Side Dimension B:
4.10
Passenger Side Dimension C:
27.50
Garage Sale:
No
Header Tube Type:
Lake Style
Small Block Ford 289-351W Lake Style Headers, Plain Steel FinishSmall Block Ford 289-351W Lake Style Headers, Plain Steel FinishSmall Block Ford 289-351W Lake Style Headers, Plain Steel Finish

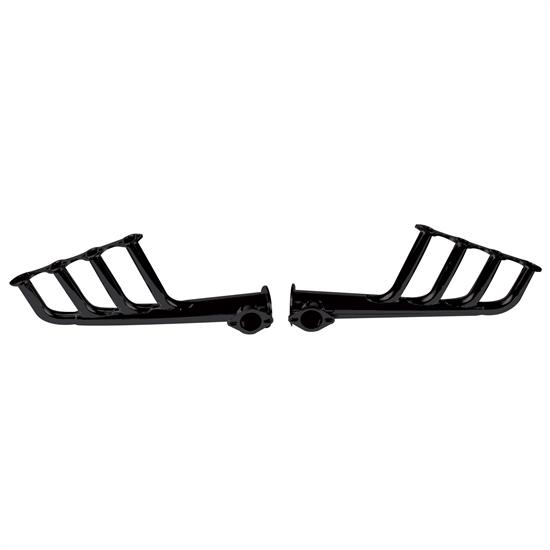

Small Block Ford 289-351W Lake Style Headers, Plain Steel Finish

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Nostalgia-style street rods are hotter than ever, and nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers. These small-block Ford lake style headers work great on early hoodless and fenderless rods like T-buckets, Model A's, and 1932-1934 Fords. Each lakester header has vertical flanges so you can connect it to a muffled under-car exhaust when the end plate is on.

  • Fits SBF 289-351W V8 with type "P" cylinder heads
  • Hookups provided for under-chassis exhaust
  • Block-off plate allows you to easily uncork headers
  • 1-5/8" primary tube diameter
  • 3-1/2" collector cone diameter

Header Dimensions (GIF)

NOTE: Turn-outs NOT included. Headers come with end plates, but the turn outs are sold seperately.

Notes

  • 16-1/4" header flange

Use this illustration with the measurements below: Lake Style Header Diagram (GIF)

  • A = 6-1/2"
  • B = 5"
  • C = 26-3/4"
  • D = 10-1/2"
  • E = 10"
  • F = 11-1/2"

Specs

  • 16-1/4" header flange

Use this illustration with the measurements below: Lake Style Header Diagram (GIF)

  • A = 6-1/2"
  • B = 5"
  • C = 26-3/4"
  • D = 10-1/2"
  • E = 10"
  • F = 11-1/2"



Item Details

1-5/8" Primaries, 3-1/2" Collectors
