Small Block Ford 289-351W Header Kit, 1-5/8 Tube, 3 Inch Collector

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Natural
Tube O.D.:
1.63
Port Height:
1.94
Port Width:
1.27
Flange Thickness:
.31
Flange Style:
Oval Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Collector Length:
12.50
Garage Sale:
No
Small Block Ford 289-351W Header Kit, 1-5/8 Tube, 3 Inch Collector

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

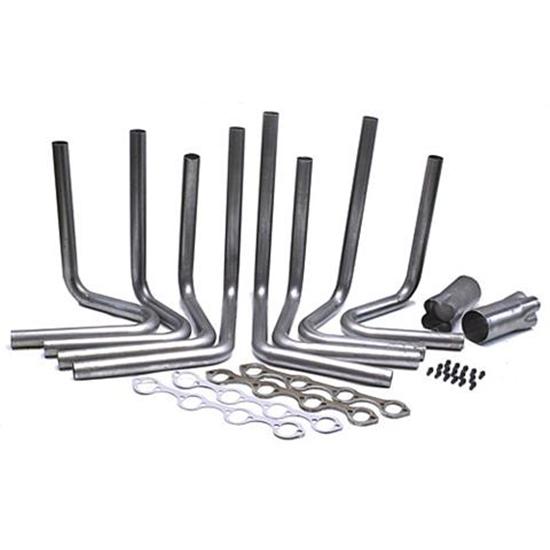

What's in the Box

Save money by welding and assembling your own headers! This S/B Ford header kit will work for many racing and rodding applications. It includes everything you need to assemble a pair of high-quality headers. Fits 289, 302, 351W small block Ford. Works with standard or GT40 heads.

Designed for the seasoned, hands-on enthusiast, weld up headers will require some cutting, fitting and welding.

  • (8) 18-gauge mild steel 1-5/8" mandrel-bent primary tubes
  • (2) Pre-formed 3" diameter collectors
  • (2) Extra-thick standard-port 5/16" flanges
  • (2) Gaskets
  • (16) Header bolts



Item Details

289-351W

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Driver22Q13
St Robert, MO
Product Rating

Custom Headers

January 25, 2010
Built me a custom set of beautiful Headers. Must have if you can't find premade headers that fit.
Pros:
  • Good Fit
  • Highest Quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DirtyDave
Verified Purchaser
Southern Maryland
Product Rating

Easy for a low tech home build

March 01, 2012
My only complaint is the Small Block Ford kit came with a Chevy bolt kit (2 bolts misiing)
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
930SBF158

Product Q&A

2 questions : 2 answers

1 answers

will these fit on a square port head ford 302

mgb74
wi
December 08, 2013

will these fit on a square port head ford 302

Answers

December 09, 2013
EricM
Yes these will fit a square port 302 head. The flanges are an oval shape to fit a wide variety of cylinder heads. The flange doesn't need to match the head exactly, as long as the header is larger than the exhaust port of the head and does not impede flow then it will work fine.
1 answers

Are there listed dimensions for the pipe? Also bend angles?

Red
TX
March 28, 2011

Are there listed dimensions for the pipe? Also bend angles?

Answers

March 31, 2011
Bill
These SBF headers feature 18-gauge mild steel 1-5/8" mandrel-bent primary tubes, 3" Pre-formed collectors, 5/16 Flanges. The tubes are extra long for custom building the headers to fit your chassis.
