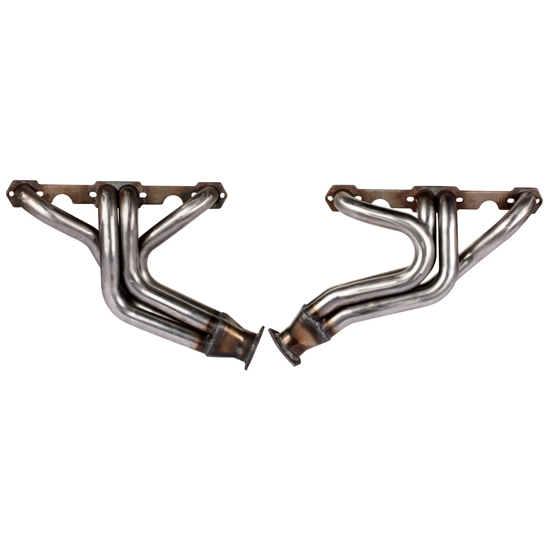

Small Block Chevy Universal Street Rod Headers, Black

SAME DAY SHIPPING! Order within the next 5 hours 30 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
15.50
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.63
Port Height:
1.63
Port Width:
1.42
Flange Thickness:
.37
Flange Style:
Round Port
Collector Diameter :
2.50
Header Dimension A:
4.00
Header Dimension B:
15.50
Header Dimension C:
22.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
5.63
Drivers Side Dimension B:
15.50
Drivers Side Dimension C:
21.00
Passenger Side Dimension A:
6.50
Passenger Side Dimension B:
14.25
Passenger Side Dimension C:
23.00
Collector Length:
4.00
Garage Sale:
No
Header Tube Type:
Chassis
Small Block Chevy Universal Street Rod Headers, Black
Small Block Chevy Universal Street Rod Headers, Black
Small Block Chevy Universal Street Rod Headers, Black

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These street rod headers are like tight-fit headers, but longer. Extra mid-to-upper RPM power. 1-5/8" primary tubes and 2-1/2" collectors. With reducers, gaskets and bolts.

Check motor mount's position before ordering.

Header Specifications Chart (GIF)



Application

  • Will not fit angle-plug heads due to spark plug clearance problems.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

justincredablehardtops
Verified Purchaser
Bakersfield, CA, USA
Product Rating

great street rod headers

March 17, 2013
I used these headers on a sbc 350 in a 1935 Plymouth 4 door sedan. This is no ordinary car, this is a dirt track race car. We call them oakey bowl hardtop race cars and is unbelievable a lot of fun. Well i choose these headers for a tight fit and good performance. But as any old car goes, there are allways modifications to frame rails. But other than that the headers were nice fit and good performance and faster rpms. These headers came with great hardware and gaskets. All and all great product and recommend these to any gear head.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

Will these headers fit a '55 F100 with the power disc brake master cylinder in the stock place and a stock str. axle front end

1 answers
donnaples
naples, fl
March 27, 2011

Will these headers fit a '55 F100 with the power disc brake master cylinder in the stock place and a stock str. axle front end

Answers

March 30, 2011
Craig
These headers are a universal fit header and we do not have specs on what chassis and engine combination they will work with. We have a header size chart with dimensions on it on our web site that you can use to determine if they will work in your application. If you go back to the link you were at before you will see the chart has been added and should help you determine if those headers will work for you.
Page 1 of 1
