Small Block Chevy U-Weld-It Tight Fit Header Kit

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Natural
Flange Style:
Round Port
Header Tube Type:
Chassis
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.50
Port Height:
1.50
Port Width:
1.50
Flange Thickness:
.21

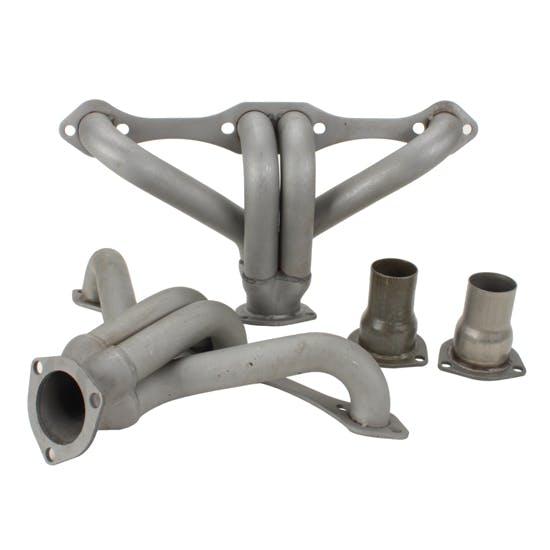

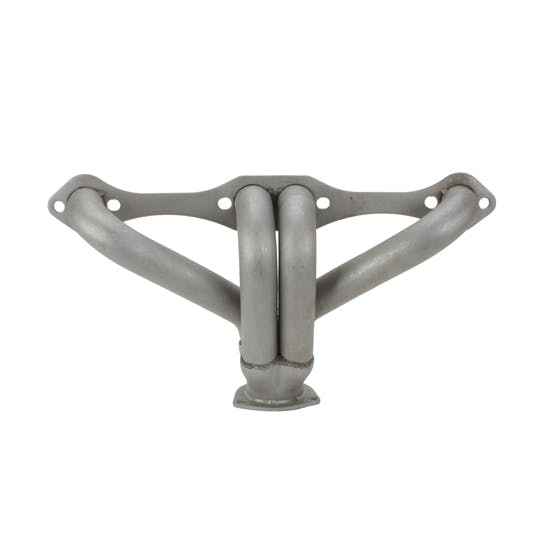

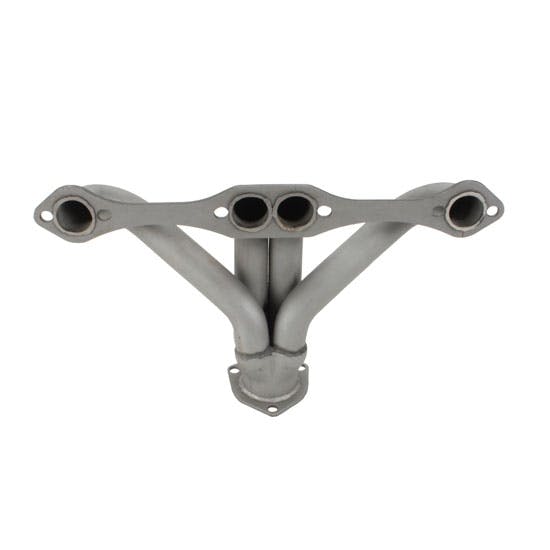

Small Block Chevy U-Weld-It Tight Fit Header Kit

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

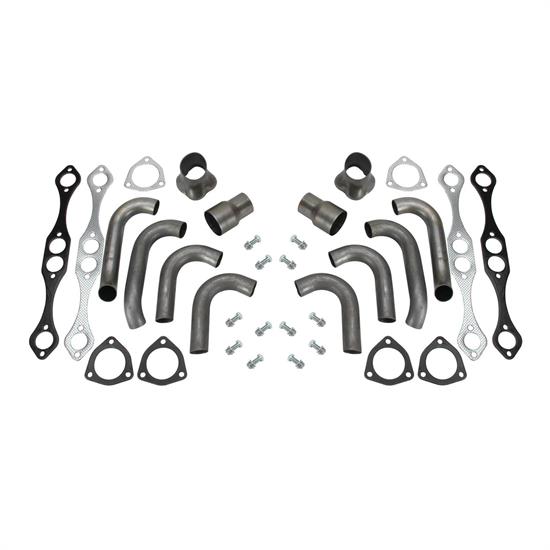

What's in the Box

  • Save money by welding and assembling your own headers
  • Block hugger style shorty headers for small-block Chevy
  • Includes everything you need to assemble a pair of high-quality headers
  • Mandrel bent, mild steel tubing
  • Pre-formed 4-into-1 collectors
  • 1-1/2” tube primary
  • 2-1/2” collector

Note: These weld up headers are designed for the seasoned, hands-on enthusiast. This header kit will require some cutting, fitting and welding.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Bikeyourride
Verified Purchaser
Red deer ab

Don't think twice.

January 13, 2016
Oh yeah. These are a great kit. Good steel. Nice bends.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

what gauge are the header tubes and collector?

g253
February 09, 2014

what gauge are the header tubes and collector?

Answers

February 10, 2014
EricM
The primary tubes and collector are 16 gauge tubing.
Page 1 of 1

You may also be interested in:

Speedway Small Block Chevy Hugger Tight Fit Headers, Plain
(Part #9300100)


These S/B Chevy tight fit headers fit difficult applications where space is limited. Shorty headers have a 1-1/2" primary with 2-1/2" collector. Complete with reducers, gaskets, and bolts.

For "round" port small block Chevy cylinder heads. Will NOT fit angled plug heads.

  • Drivers side collector is 2" from pan rail
  • Passenger side collector is 1/2" from pan rail
  • Flange thickness is 0.212"

Header Dimensions (GIF)

Item Details

Header Dimension Chart

Speedway Small Block Chevy Block Hugger Headers, AHC Coated
(Part #9300100H)


These S/B Chevy tight-fit headers fit even difficult applications where space is limited. For round port S/B Chevy.  1-1/2" primary with 2-1/2" collector. These block hugger headers are ceramic coated headers. Complete with reducers, gaskets, and bolts. These shorty headers are designed to make difficult installations easy.

  • Drivers side collector is approx. 2" from pan rail
  • Passenger side collector is approx. 1/2" from pan rail
  • Flange thickness is approx. 0.212"

Will NOT fit angled plug heads.

Header Dimensions (GIF)

Item Details

Header Dimension Explanation Chart

Smoothie Rams Horn Exhaust Manifolds, Small Block Chevy, Raw
(Part #9300329)


These classic "Rams Horn" style exhaust manifolds are great for use with most small block Chevy applications, providing optimal clearance for angle plug heads.  These manifold kits come complete with all mounting hardware and gaskets.

  • Ground smooth with no external bosses or brackets
  • 2-1/2" outlet
  • Plain, Raw finish
  • Nodular cast iron
  • For angle or straight plug heads
  • Includes all hardware and gaskets
Smoothie Rams Horn Exhaust Manifolds, Small Block Chevy, Silver
(Part #9300330)


These classic "Rams Horn" style exhaust manifolds are great for use with most small block Chevy applications, providing optimal clearance for angle plug heads.  These manifold kits come complete with all mounting hardware and gaskets.

  • Ground smooth with no external bosses or brackets
  • 2-1/2" outlet
  • Silver ceramic finish
  • Nodular cast iron
  • For angle or straight plug heads
  • Includes all hardware and gaskets
Smoothie Rams Horn Exhaust Manifolds, Small Block Chevy, Black
(Part #9300331)


These classic "Rams Horn" style exhaust manifolds are great for use with most small block Chevy applications, providing optimal clearance for angle plug heads.  These manifold kits come complete with all mounting hardware and gaskets.

  • Ground smooth with no external bosses or brackets
  • 2-1/2" outlet
  • Black ceramic finish
  • Nodular cast iron
  • For angle or straight plug heads
  • Includes all hardware and gaskets
Smoothie Rams Horn Exhaust Manifolds, Small Block Chevy, Chrome
(Part #9300332)


These classic "Rams Horn" style exhaust manifolds are great for use with most small block Chevy applications, providing optimal clearance for angle plug heads.  These manifold kits come complete with all mounting hardware and gaskets.

  • Ground smooth with no external bosses or brackets
  • 2-1/2" outlet
  • Chrome finish
  • Nodular cast iron
  • For angle or straight plug heads
  • Includes all hardware and gaskets
