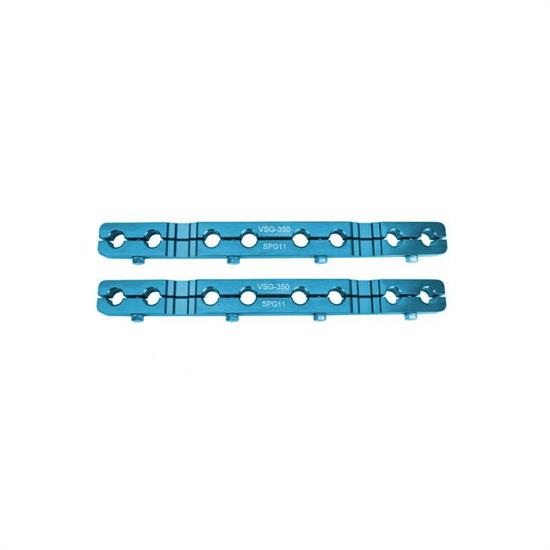

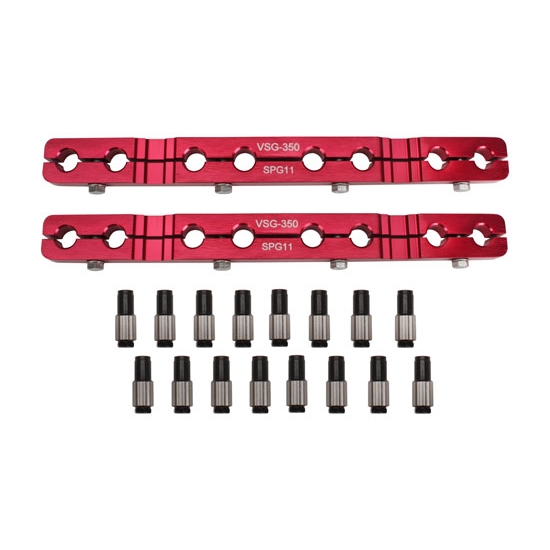

Small Block Chevy Two-Piece Stud Girdle, 7/16 Inch Studs

Price:
$74.99
PR
In Stock
Item #:
57515351
Small Block Chevy Two-Piece Stud Girdle, 7/16 Inch Studs
Click image to enlarge Click image to enlarge
No video at this time.


BluMax Stud Girdles are designed to eliminate rocker stud flexing and provide more accurate valve lift and timing. They are specially machined to accommodate vacuum pump and crank case evacuation components. These lightweight, spring-loaded, 6061 T-6 aluminum stud girdles include 7/16" polylocks.

For S/B Chevy V8.

  • Polylocks included
  • Anodized for a superior finish
  • More consistent high-RPM performance
  • Easy and quick removal and replacement
  • Made from the finest quality billet aluminum
  • Pre-machined to allow for vacuum pump airflow



  • 262 1985-00
  • 265 1955-57
  • 267 1979-82
  • 283 1957-67
  • 302 1967-68
  • 305 1976-00
  • 307 1968-73
  • 327 1962-69
  • 350 1967-00
  • 400 1970-80
These stud girdles will not work with center bolt valve covers and the valve cover bolt would have to pass through the girdle. Machine work on the girdle would possibly solve the problem but would take away from the integrity of the girdle. The other option would be to use an earlier valve cover adapter in conjunction with the stud girdle.
