Tight-Fit Small Block Chevy Block Hugger Headers, Black

SAME DAY SHIPPING! Order within the next 1 hour 30 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Flange Style:
Rectangular Port
Header Tube Type:
Block Hugger
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.63
Port Height:
1.63
Port Width:
1.41
Flange Thickness:
.35
Collector Diameter :
2.50
Header Dimension A:
3.75
Header Dimension B:
10.00
Header Dimension C:
18.38
Notes
Will not clear angle plugs.

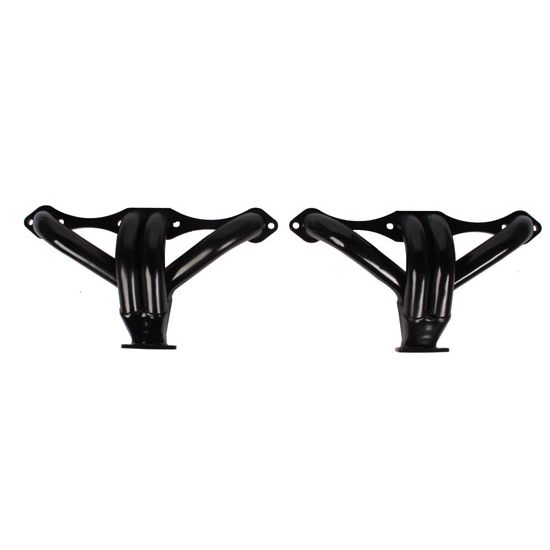

Tight-Fit Small Block Chevy Block Hugger Headers, Black
Tight-Fit Small Block Chevy Block Hugger Headers, Black
Tight-Fit Small Block Chevy Block Hugger Headers, Black

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These small block Chevy tight-fit headers are the most universal steel tube shorty headers available. They even fit difficult applications where space is limited. The block hugger headers are a favorite for street rods, as well as many 1950s and 1960s cars and vintage trucks.

  • Most tight fit header applications require the use of Accel shorty spark plugs
  • Compact design
  • Will NOT fit angle plug heads
  • Includes reducers, gaskets and bolts
  • 1-5/8" primary tubes
  • 2-1/2" collector
  • Head Flange Thickness:  0.35"

Header Dimensions (JPG)

Item Details

Header Dimension Explanation Chart

Application

  1. Can be used with most oil filter systems and transmission/starter combinations.
  2. Will not fit '55-'57 Chevy cars, Camaros, or other modern vehicles which have a crossmember below the engine's center two exhaust ports.
  3. Will not clear a "clam shell" style motor mount (found on 1973-newer Chevy cars & trucks).

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
4
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

BOZ
Verified Purchaser
Verified Reviewer
parowan, ut

perfect fit. excellent price

August 26, 2015
We installed these in a derby car. So we turned them up side down to run the attacks out the hood. And they went on like a glove. ..
Pros:
  • Comes As Kit
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

OldBlue
Houston, TX

Well Built Header Kit

December 13, 2014
I am installing these into an old Plymouth Coupe Street rod. No boot issues using straight boots and copper heat shields. Clear frame and steering gear.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Greenlatern55
Verified Purchaser

Outstanding service and product.

July 20, 2014
All parts were within the box. Everything fit perfectly shipping was done with care and expeditiously.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

bec64

no spark plug boot clearance

February 17, 2014
bought these for a 1984 chevy 305 engine and the spark plug boot is too close to header even with accel shorty plugs im screwed cant use them, they are a quality made header
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

none
Verified Purchaser
Charlotte, NC

Great set of headers for the price.

January 17, 2012
I couldn't beleive that the material that the headers were made of was as thick. Really nice looking set on my old truck. Really cool to get the gaskets and bolts also.
Pros:
  • Great Sound
  • Easy To Install
  • Lightweight
  • Adds Style
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

11 questions : 11 answers

1 answers

will these fit on a 68 gmc 1/2 truck?

skyler
February 22, 2015

will these fit on a 68 gmc 1/2 truck?

Answers

February 23, 2015
EricM
These typically have clearance issues with the crossmember and the exhaust pipe connecting to the headers. You would be better off with the clipster headers 9300108 for your pickup.
1 answers

What Gauge is the tubing, 18, 16, etc? Looking at this for a SBC tranaplant in a Studebaker Lark.

GeneC
Madison, WI, USA
November 05, 2014

What Gauge is the tubing, 18, 16, etc? Looking at this for a SBC tranaplant in a Studebaker Lark.

Answers

November 05, 2014
EricM
These headers are made with 16 gauge tubing.
1 answers

what is the black coating on these and how well does it last?

MrMike
August 25, 2014

what is the black coating on these and how well does it last?

Answers

August 26, 2014
EricM
These are painted black with high temp paint. It will last for a short time but if you are after a long lasting coating you will need ceramic coating such as our AHC coated headers 9300101H.
1 answers

will these fit sbc vortec heads (L31)?

bkelly
October 17, 2013

will these fit sbc vortec heads (L31)?

Answers

October 18, 2013
Jason
Headers number 9300101 will fit the stock configured small block Vortec heads. Will not fit the LS series engines of 2000 and up.
1 answers

do these headers come with collectors and gaskets?

bugg
leominster ma
March 11, 2013

do these headers come with collectors and gaskets?

Answers

March 12, 2013
Jason
The tight fit small block hugger headers includes reducers, gaskets and bolts
1 answers

Will these fit a 69 Chevy 4 bolt main 350? I currently have the center dump stock manifolds this is a 63 cab with a 69 4 bolt 350 on a 85 GMC one ton chassis

Griz
Hesperia, CA, USA
November 26, 2012

Will these fit a 69 Chevy 4 bolt main 350? I currently have the center dump stock manifolds this is a 63 cab with a 69 4 bolt 350 on a 85 GMC one ton chassis

Answers

November 26, 2012
Jason
We do not have a list of vehivcles these fit but offer the following information to help determine fit. Tube O.D. : 1.625 " Collector Diameter : 2.50 " Flange Style : Round Port Flange Thickness : .305 " Width of header at widest point from exhaust port - 4.00 " Height of header from top of flange to lowest point - 10.00 " Length of header from front of flange to collector - 9.25 " Material Type : Steel Finish : Natural Will not clear angle plugs. THESE HEADERS WILL NOT CLEAR A "CLAM SHELL" STYLE MOTOR MOUNT. (these are the 'stock' style for 1973-newer Chevy cars/trucks).
1 answers

Will these fit a 1927 Tall T with a 283 small block? My rail dimensions are 22 inches on the inside.Using biscuit type engine mountings. I'm using a Corvair reversed steering box set up CCR style.

Mikey
Crockett,Texas
June 10, 2011

Will these fit a 1927 Tall T with a 283 small block? My rail dimensions are 22 inches on the inside.Using biscuit type engine mountings. I'm using a Corvair reversed steering box set up CCR style.

Answers

June 13, 2011
John
For fit to your application some dimensions to check are as follows: From head surface to furthest point outward is 4” and from top of head flange to bottom of the collector is 10”. The collector flange sits approximately ½” from the block. You will need to measure your application to allow for clearance for the collector reducer and adjoining pipe to verify fit.
1 answers

will these fit a 32 ford roadster w vega steering ,or is there a better pick

mike
ok
March 31, 2011

will these fit a 32 ford roadster w vega steering ,or is there a better pick

Answers

April 04, 2011
Shane
These headers should fit your 32 Ford roadster fine. Not knowing where you have your Vega box mounted I can not say fore sure please check the header fitment chart for these headers.
1 answers

Do they come with a 3" collector?

Dale
Cleveland, Texas
June 16, 2011

Do they come with a 3" collector?

Answers

June 17, 2011
Jason
No, these have a 2-1/2" collector.
1 answers

Do they come in square port?

Jamie
Gadsden, Al
April 25, 2015

Do they come in square port?

Answers

April 27, 2015
Eric
Expert
These are actually a rectangular shaped exhaust flange with rounded corners. These work on nearly all stock small block Chevy heads and many aftermarket heads. The exhaust port shape is not actually round on this header.
