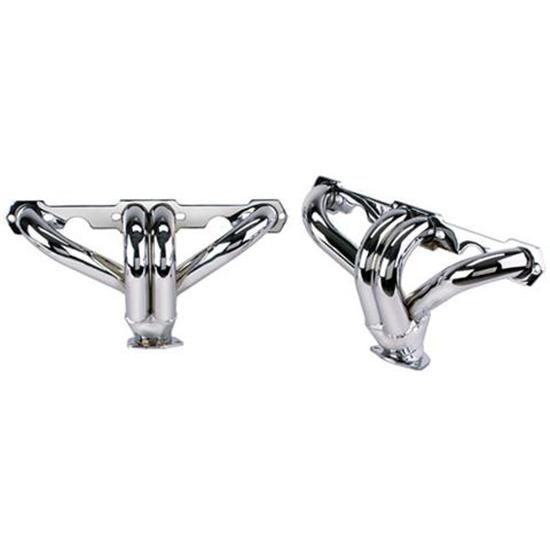

Small Block Chevy Tight Fit Headers, AHC Coated

SAME DAY SHIPPING! Order within the next 5 hours 1 minute and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
AHC Coated
Flange Style:
Rectangular Port
Header Tube Type:
Block Hugger
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.63
Port Height:
1.63
Port Width:
1.41
Flange Thickness:
.35
Collector Diameter :
2.50
Header Dimension A:
3.75
Header Dimension B:
10.00
Header Dimension C:
18.38
Notes
Will not clear angle plugs.
Small Block Chevy Tight Fit Headers, AHC Coated
Small Block Chevy Tight Fit Headers, AHC Coated
Product Video
Small Block Chevy Tight Fit Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These AHC small-block Chevy tight fit headers are the most universal steel tube headers available. These performance headers fit difficult applications where space is limited. They are a favorite for street rods, as well as many 1950s and 1960s cars and vintage trucks. These ceramic coated headers provide superior performance and durability.

Tight Tuck headers are the solution to many problems associated with engine swaps in modern street rods. Tight Tucks fit in the tightest of engine compartments and clear all stock motor mounts. Most headers are manufactured from durable 16-gauge tubing and comes complete with gaskets, header bolts and collector reducers.

  • Most tight fit header applications require the use of Accel shorty spark plugs
  • Round port
  • Compact design
  • Will NOT fit angle plug heads
  • Includes reducers, gaskets and bolts
  • Armor Hot Coat finish

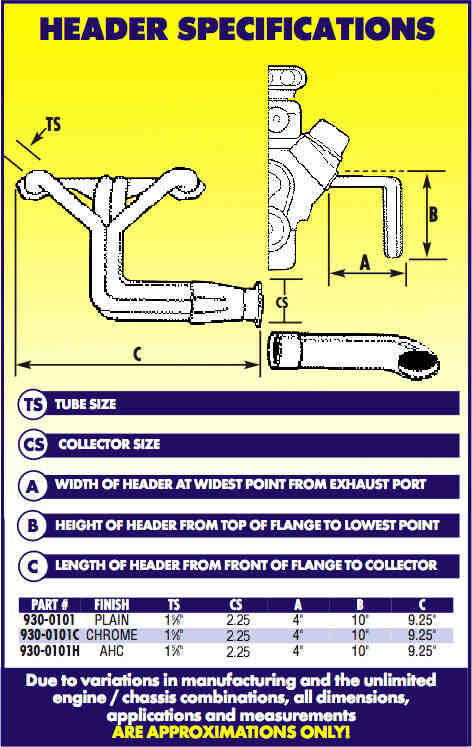

Header Dimensions (JPG)

Item Details

Header Dimension Chart

Application

  1. Can be used with most oil filter systems and transmission/starter combinations.
  2. Will not fit '55-'57 Chevy cars, Camaros, or other modern vehicles which have a crossmember below the engine's center two exhaust ports.
  3. Will not clear a "clam shell" style motor mount (found on 1973-newer Chevy cars & trucks).

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles.

Customer Reviews

Rated 4.6 out of 5 by 16 reviewers.
RATING BREAKDOWN
16 reviews
5 Stars
12
4 Stars
3
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

Bob
Verified Purchaser
Verified Reviewer
mn

I would buy this product again

August 17, 2015
Worked good for what it is.
Pros:
  • Does Not Dis-color
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ray36Chevy
Verified Purchaser
Tyler, TX, USA

Great looking headers

March 08, 2015
Wow, if these headers hold up under use, as good as they look when received...this will be one great bargain.
Pros:
  • Great fit and finish
  • great polished coating
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tony355
Verified Purchaser
Woodbury, MN, USA

Once product was exchanged for two match

July 26, 2014
Whoever is packing these items might want to look at them to see if they meets your advertised claim, before they ship. The exchange was handled very satisfactorily and new product sent out also did not match,but with both sets I was able to get a good looking set, they do look excellent and seem to hold up well once heated. Thanks for the Quick response.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rube
Pasco, WA, USA

Graet fit on a 32 ford with full hood

September 22, 2013
i have these on my 1932 Ford Vicky with a full hood. I have the headers that fit angle plug heads. They fit very nice and the finish is top notch. I would buy these again, in fact I have for other projects in my shop. The flanges are thick and the product looks to be well made.
Pros:
  • Finish
  • fit very fit!!!
  • Price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

SteveADGTucson
Tucson, AZ, USA

Excellent Headers

September 03, 2013
I recently purchased a pair of these tight fit headers for a custom project; as the name implies they are very compact, but don't let their size fool you, these things are great! they look beautiful and sound awesome. BICHIN!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

toadwalk
Fort Gordon, Augusta, GA 30905, USA

The plating on the headers is not great

July 29, 2013
I bought a set of these to put on a Blueprint 383, they looked good at first, I cleaned properly before running engine, when I ran engine there was a large air leak in the collector, and 2 days later they started to surface rust. When I called tech/customer support they told me I voided the warranty on the coating and welds because they are not to be used on an engine that hasn't been broken in... but when I called tech support and told them about the application they would be used on they sure as heck sold them to me!
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Toadwalk, thank you for your feedback. Your comments have been forwarded to Speedway Quality Control team to ensure current inventory of these headers meet the intended requirements. Unfortunately, these headers were purchased in August 2011, and therefore; Speedway is not able to warranty exhaust products after 2 years from purchase. We apologize for the inconvenience along with possible defects that may occur with our products. Speedway Motors thanks those that bring these issues to our attention to ensure that our customers have the best experience with us in any way.
lamonts
Verified Purchaser
wyoming

Works great and show room quality.

August 18, 2012
easy to install and good quality product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

REDE4U
Verified Purchaser
Wichita Kansas

Great attention to form/function/detail

March 02, 2012
I use block hugging headers for their compact design. This frees up space in my engine compartment for easier maintenance and cleaning. The fit and finish quality of these headers far exceeded my previous ones and cost 1/3 less.
Pros:
  • Includes great gasket
  • Access to all fasteners
  • Installation is a breeze
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Pearsonhaus
Verified Purchaser
West Monroe, LA

Excellent Buy!

October 18, 2011
I got the headers for my SBC '31 Chevy 3 window coupe. They look fantasic on the car and fit great! Very good product for the money!
Pros:
  • Quality
  • Beautiful finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

cj
Verified Purchaser
Riverton, Utah

Headers for chevy

October 06, 2011
Building a 27 ford truck
Pros:
  • Great company to work wit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

7 questions : 9 answers

1 answers

Exhaust Headers for 1975 Pontiac 400ci I am looking for headers like this: LINK 1: http://www.speedwaymotors.com/Tight-Fit-Stainless-Steel-Small-Block-Chevy-Block-Hugger-Headers,6209.html Do you have these to fit a 1975 Pontiac 400 for a Grand Am? Most everything else I have looked for is like this: LINK 2: http://www.speedwaymotors.com/Dynatech-701-10010-Chevy-Chassis-Header,48641.html I need a pair like the tight fit pair in LINK 1 that are ceramic coated and preferably with all gaskets in either a 2 1/2" or 3" The heads I have are from a RAM air 3 and I have attached a photo of the exhaust ports. Thank you

75GrandAm
Omaha, NE, USA
February 08, 2014

Exhaust Headers for 1975 Pontiac 400ci I am looking for headers like this: LINK 1: http://www.speedwaymotors.com/Tight-Fit-Stainless-Steel-Small-Block-Chevy-Block-Hugger-Headers,6209.html Do you have these to fit a 1975 Pontiac 400 for a Grand Am? Most everything else I have looked for is like this: LINK 2: http://www.speedwaymotors.com/Dynatech-701-10010-Chevy-Chassis-Header,48641.html I need a pair like the tight fit pair in LINK 1 that are ceramic coated and preferably with all gaskets in either a 2 1/2" or 3" The heads I have are from a RAM air 3 and I have attached a photo of the exhaust ports. Thank you

Answers

February 10, 2014
EricM
Sorry I do not have a set of headers available for your Pontiac.
2 answers

I have a 1929 ford model A sedan with boxed stock frame rails , vega steering box with a SBC . Im looking for block huggers headers will these work ?

squarepants
minneaota
February 05, 2014

I have a 1929 ford model A sedan with boxed stock frame rails , vega steering box with a SBC . Im looking for block huggers headers will these work ?

Answers

February 17, 2015
Tony355
It works anywhere you have the room.
February 07, 2014
EricM
Our tight fit headers have the furthest out point at the bend in the tubes which is 4” and from the top of the flange to the bottom of the collector is 10”. The tubes wrap inward and are within 1” of the block at the collector flange which is directly below the center two cylinders. You can compare this with your frame to verify clearance.
1 answers

how do I keep the header from leaking at the collector joint have used self locking bolts and several different gaskets types . the joint gasket will still leak after several heatcycles . exhaust pipes are properly mounted and not loose .

wookie
May 31, 2013

how do I keep the header from leaking at the collector joint have used self locking bolts and several different gaskets types . the joint gasket will still leak after several heatcycles . exhaust pipes are properly mounted and not loose .

Answers

May 31, 2013
Jason
In some cases over tightening actually distorts the collector flange so check with a straight edge and correct if needed. If still leaking your local parts store should carry exhaust gasket or exhaust sealant. It normally comes in a tube and applied to both sides of the gasket. As it sets up it helps take care of irregularities. Some suppliers recommend only one side to ease removal down the road.
2 answers

will these fit where ever the ram horn manifolds where used

sdwimpala62
Chehalis, WA, USA
January 01, 2013

will these fit where ever the ram horn manifolds where used

Answers

March 09, 2015
Ray36Chevy
They stick out further from the block, than the ram horns do. But I am not aware of any that will be that tight to block. Ram horns will definitely not breath as good as these headers.
January 02, 2013
Jason
These tight fit headers may NOT fit all applications where ram horn manifolds were used. There were many different rams horn manifolds offered by GM with different outlet locations. From the head surface outward the tubes furthest point is 4” and from the top of the flange at the center two ports the collector is 10” down. On applications where the cross member is directly below the center ports it may be difficult to hook up the rest of the exhaust by the location of the collector.
1 answers

Will these headers fit on a Chevrolet 350 with Edlebrock aluminum heads with straight plugs and sitting in a 32 ford?

Bud
June 24, 2015

Will these headers fit on a Chevrolet 350 with Edlebrock aluminum heads with straight plugs and sitting in a 32 ford?

Answers

June 25, 2015
Eric
Expert
Yes these headers typically work well on a small block Chevy engine in a 32 Ford.
1 answers

Are these compatible with Brodix IK-210 Aluminum Heads for a SBC?

Mike
Minneapolis, MN
July 02, 2015

Are these compatible with Brodix IK-210 Aluminum Heads for a SBC?

Answers

July 02, 2015
Eric
Expert
Yes these headers will fit your Brodix IK-210 cylinder heads.
1 answers

Will these fit 1963 impala?

Cyro
Monticello, Ms
July 20, 2015

Will these fit 1963 impala?

Answers

July 20, 2015
Eric
Expert
You will need to compare the measurements of this header to your space available to determine if they will fit. The measurements of this header are: Header Dimension A: 3.75, Header Dimension B: 10.00, Header Dimension C: 18.38.
Page 1 of 1
