Small Block Chevy Power Steering Pump Bracket

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Garage Sale:
No
Overall Width:
4.60
Overall Length:
6.75
Overall Thickness:
0.25
Notes
The block mount bolt holes are 1.625". We carry pump 91032908-BLK/CHR which will work in conjunction with this bracket. This type pump was typical of those used on '70-'77 mid-sized GM cars.

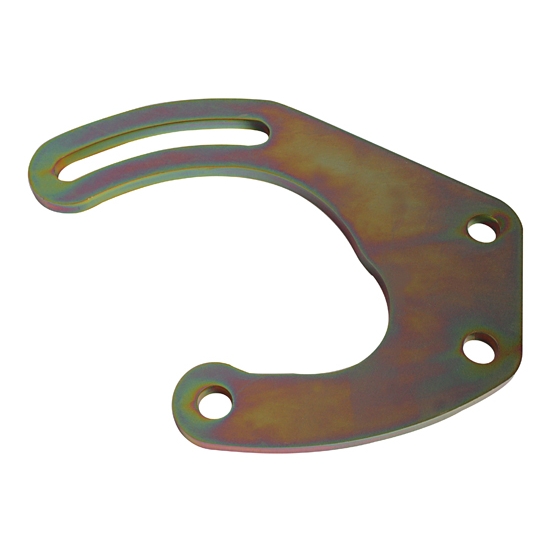

Small Block Chevy Power Steering Pump Bracket

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This power steering pump bracket mounts a stock-style GM pump to a S/B Chevy block. Must be used with a short style water pump. Mounts on the lower left side. Bracket is zinc plated with threaded shaft. Designed to work with a '70-'82 GM pump that has a threaded pulley shaft, not a press-on style.

Works with bolt-on or press-on pulleys with a mount spacing of 3.75". Due to the variety of pulley configurations, it is likely that you will have to space the pump/bracket for belt alignment.

Note: This will NOT work when used on early 1970's Chevelle/Camaro chassis with a steering box.

Customer Reviews

Rated 4.5 out of 5 by 11 reviewers.
RATING BREAKDOWN
11 reviews
5 Stars
9
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

Stangmoore
Verified Purchaser
Verified Reviewer
Lyman nebraska

Mounted perfectly no problems great product.

June 24, 2015
This product is used in my stock car and works great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

chicken shifter
Verified Purchaser
Apple Vally California

haven't finished install

June 15, 2015
power steering on 33 chev. with remote reservoir waiting for rack an pinon on back order pump is smale enough that it don't hit hood on 33 chev. had to wait couple days for delivery
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Pro
Verified Purchaser
Verified Reviewer
North East, Alabama

I would buy this again

May 11, 2015
Great fit, and looks good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

klhiowa
Verified Purchaser
iowa

very good & easy install

February 07, 2015
great for problem installations & reasonably priced
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

apache58l
Verified Purchaser
Fort Worth, TX, USA

work as described

September 22, 2014
With some spacers worked with my long water pump, small block chevy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jegan
Verified Purchaser
St. George, UT, USA

Simple, easy, perfect

August 22, 2014
A few washers as spacer and this simple unit works great for getting rid of those bulky ugly stock brackets.
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hozz
Verified Purchaser
north county san diego ca 92087

excellent universal bracket for short or

April 28, 2014
i've installed this on my sbc with a long water pump and used an 87 metric saginaw power steering pump with a pressed on pulley and it works excellent.i had to drill the bottom hole where the pump mounts to the bracket because its metric and the bolts just a little bigger. this bracket will mount all saginaw power steering pumps from early 60's thur 87 long or short water pump to sbc
Pros:
  • looks and works clean
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dr.Fast
Verified Purchaser
Sioux Falls S.D.

nice, simple, clean piece.

May 08, 2011
This p.s. braket is very simple and clean. more of these will be sold! Micah S.
Pros:
  • Adjustable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

faspit
Verified Purchaser
McHenry, IL

Great part for the price.

May 02, 2011
This part is exactly what it is advertised to be. It took some time to figure out my spacers but once that was done it fit like a glove.
Pros:
  • Easy To Install
  • Clean looking
  • Fits right without modify
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rick 9 Motor Sports
El Cajon, CA.

Works well on SBC with little work.

April 02, 2010
Worked well on SBC. Mounted lower left. Needed to re-route lines and ad shimms (washers)to match pullys.7k rpm and holding in there.
Pros:
  • Fit good on SBC
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

8 questions : 12 answers

1 answers

Will this work on the back groove of a two groove crank pulley? Or if not will I have to get a third crank pulley to suit a short water pump? 69 vette 350 in a 55 F100 with high mount alt bracket off valve covers on drivers side.

F10055
Australia
December 31, 2013

Will this work on the back groove of a two groove crank pulley? Or if not will I have to get a third crank pulley to suit a short water pump? 69 vette 350 in a 55 F100 with high mount alt bracket off valve covers on drivers side.

Answers

December 31, 2013
EricM
This power steering pump bracket is designed to work with the early GM pumps with a threaded shaft for pulley retention and a pulley with a mount spacing of 3.75”. There are a wide variety of pulleys which dramatically change the belt location on the lower pulley. Originally it was designed for the 3rd groove on a 3 groove pulley by spacing the bracket or pump. Typically you are able to get this bracket to work on either the second groove or third groove of a short water pump lower pulley by spacing as needed. It will not work on the first groove (one closest to the engine.)
1 answers

What alternator bracket would you recommend with this unit. I really like this bracket, looks neat and simple. All I will be running on my engine is power steering and alternator, with short water pump. Any recommendations on alt. bracket and pulleys would be greatly appreciated.

Bobo
Columbia, TN, USA
December 02, 2013

What alternator bracket would you recommend with this unit. I really like this bracket, looks neat and simple. All I will be running on my engine is power steering and alternator, with short water pump. Any recommendations on alt. bracket and pulleys would be greatly appreciated.

Answers

December 03, 2013
EricM
If you want the alternator on the drivers side you need to use an inboard mount for belt clearance such as number 91667895 or 91667917. For passenger side mounting of the alternator bracket number 91667906 could be considered. If you would like to run a serpentine kit with alternator and power steering we offer kit number 91013270 or 91013271. For pulleys you will need a single groove upper such as number 91015471 or 91015422 and for the double lower part number 91015474 or 91015424.
2 answers

The product description says that it does not work with a press on style, then says that it does. So, does it ?

tommy541
Orlando, FL, USA
May 05, 2013

The product description says that it does not work with a press on style, then says that it does. So, does it ?

Answers

April 29, 2014
hozz
im using it very successfully on my sbc with a long water pump and an 87 saginaw ps pump with a pressed on pulley
May 06, 2013
Jason
This power steering pump bracket is designed ti wirk with a pump that has a threaded pulley shaft. A press on style pump may have a different mounting configuration where the bracket mounts. You will need to verify which style of pump you have if it is press on style.
2 answers

will this mount work with long water pump and pulleys with spacers behind mount using stock pump, long pulleys,long pulley with key way, power steering, looking for a mount that will fit and line up to pulleys with maybe a spacer behind mount

mauler
North Dakota, USA
February 18, 2013

will this mount work with long water pump and pulleys with spacers behind mount using stock pump, long pulleys,long pulley with key way, power steering, looking for a mount that will fit and line up to pulleys with maybe a spacer behind mount

Answers

April 29, 2014
hozz
yes i have it mounted on my sbc that way and it works excellent
February 19, 2013
Jason
This power steering bracket is designed to work with short style water pump only and works with 1970-82 GM pump with threaded shaft
1 answers

will this clear a driver side alternator mounted above p/steer pump?

grumpyoldman
nc
January 28, 2013

will this clear a driver side alternator mounted above p/steer pump?

Answers

January 29, 2013
Jason
With this power steering bracket the bottom of the pump will be approximately in line with the bottom of the block or the mount hole for the pump inline with the lower mounting hole on the block. You will need to compare this to the alternator location to verify clearance.
2 answers

I have a 1970 C10 Chevy pickup. Will this work? It looks like it will.

Greg Broome
Clever, Mo
August 17, 2011

I have a 1970 C10 Chevy pickup. Will this work? It looks like it will.

Answers

October 10, 2014
apache58l
Yes it should, I used it on a 350 and works with spacer
August 17, 2011
John
This bracket puts the power steering pump down on the drivers side of the block and bolts right above the pan rail in existing bolt holes. This is similar to stock location and on the pickup in question and steering gear location there should be sufficient clearance. Certain vehicles such as 70's Chevelles and Camaros will have steering gear clearance issues.
1 answers

Can I use this bracket to install a Saginaw style power steering pump to the drivers side of the engine, Chevy 283, short water pump?

Albuquerque, NM
July 05, 2011

Can I use this bracket to install a Saginaw style power steering pump to the drivers side of the engine, Chevy 283, short water pump?

Answers

July 06, 2011
John
This bracket mounts the stock style Saginaw style power steering pump to the drivers side directly above the pan rail at the front of the engine and requires the use of a short water pump and the appropriate pulley for belt alignment.
2 answers

will this product work on my '65 El Camino? i have a threaded type P/S pump.I also have headers.

guy
March 29, 2011

will this product work on my '65 El Camino? i have a threaded type P/S pump.I also have headers.

Answers

May 10, 2011
Dr.Fast
yes it will work, using the 2 bolts in back of tank, one is a stud and one is a bolt. use a washer to shim it if needed.
March 31, 2011
Craig
The power steering pump bracket part # 91332902 will work with your power steering pump. Due to the variety of pulley configurations, it is likely that you will have to space the pump/bracket for belt alignment.
Page 1 of 1
