Small Block Chevy Performance Aluminum Water Pump, Short

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Weight:
6.40
Sold in Quantity:
Each
Finish:
Natural
Shaft Diameter:
0.75
Mounted Length:
5.63
Shaft Length:
0.56
Hose ID:
1.82
Gasket(s) Included:
Yes
Hardware Included:
No
Heater Inlet Size:
1/2" NPT
MFG. Part #:
910-15580
Garage Sale:
No
Water Pump Style:
Short
Notes
Clearance from back of pump to engine block mount is .94" For street use bypass plug will need to be removed. Does not have a set screw to retain hub. Does not have a snap ring.

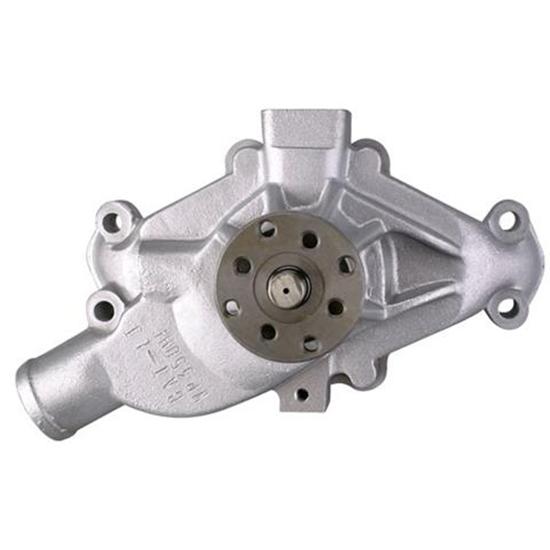

Small Block Chevy Performance Aluminum Water Pump, Short
Small Block Chevy Performance Aluminum Water Pump, Short

Click image to enlarge

Speeday Motors Logo
X
Small Block Chevy Performance Aluminum Water Pump, Short

Details

Reviews

Q & A

What's in the Box

Each pump is manufactured from T6 aluminum and features an impeller with curved vanes for maximum flow, pressure and equal distribution to both sides of the block. It also features a unique seal assembly for leak proof operation.
  • 3/4" shaft with 5/8" fan pilot snout
  • 1/2" NPT hole on passenger side (for heater hose) and on top (for bypass hose)
  • Stamped steel rear plate
  • Extra thick fan hub
  • 3/4" ultra duty bearings
  • Adjustable cam stop
  • State of the art aluminum castings
  • Equal flow to both cylinder banks
  • Precision impeller
  • Higher flow rate and pressure rate
  • Weighs 6 lbs.
  • Does not have a set screw retaining the fan hub

NOTE: This pump is designed for street use and is not to be run on a motor which exceeds 5,500 RPM.

910-15580 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Item Details

3/4" shaft, 5/8" pilot

You may also be interested in:

Speedway Small Block Chevy Short Steel Water Pump
                        Our 100% new, pressure cast & CNC machined pumps feature characteristics often overlooked by other manufacturers - precision-ground hubs to eliminate vibration; heavy duty ball-roller or ball-ball bearings; ceramic seal assemblies for extended life; closed-vane impellers for unsurpassed output; and zinc-coated backplates to stand up to corrosion.

"Short" style pumps came on all factory small block V8s from 1955 to 1968. However, this pump will fit all S/B Chevys up to 1985.

NOTE: This pump is designed primarily for street use and should not exceed 5,500 RPM.

Small Block Chevy Water Pump Installation Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Speedway Adjustable Small Block Chevy Aluminum Short Water Pump


Speedway's adjustable water pump is tried, tested and true. It has great flow, superior quality and standard features that are typically only available on water pumps costing twice as much. State-of-the-art aluminum casting and a precision impeller provide equal flow to both cylinder banks. If you're using a cog belt on your race car, this is the pump you want since it's adjustable. The 1/2" mount holes in this pump are larger than normal, allowing it to be moved up or down slightly to help with belt tension.

  • Adjustable mounting holes
  • High flow and pressure rates
  • Adjustable cam stop
  • Extra-thick fan hub
  • 3/4" inch heavy duty bearing
  • Pressed-fit and set-screw-retained fan hub
  • Large-diameter shaft and reinforced housing make it ideal for oval-track applications

910-15582 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump

Chevy Short Water Pump Bolt Kit, Stainless Steel


These stainless steel bolt kits will dress up your Small Block Chevy engine while giving it corrosion-resistant performance. Allen head.

This includes:

  • 3 each 3/8-16 x 1 3/4 Stainless Steel Socket Head Cap Screw
  • 1 each 3/8-16 x 2 1/2 Stainless Steel Socket Head Cap Screw
  • 4 each 3/8 AN Stainless Steel Flat Washers
Speedway Small Block Chevy Short Aluminum Water Pump, Plain


Speedway Short Aluminum water pumps flow 35 gallons per minute at 4,000 RPM, with minimal cavitation and proportionally increased flow rates at 5,000 RPM and above. Equalized water flow distribution and pressure-balanced water passages minimize internal engine hot-spots making these pumps an excellent alternative for not only light duty racing, but also marine, trucks, towing, and motorhome applications. Cruisers and hot rodders will appreciate the improved cooling at low speeds.

"Short" style pumps came on all factory small block V8s from 1955 to 1968. However, this pump will fit all S/B Chevys up to 1985.

910-15546 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Small Block Chevy Short Heavy Duty Aluminum Water Pump
                        This super heavy duty race water pump features additional casting designs for more strength and reinforcement, plus a 3/4" fan pilot shaft and super duty bearing. It has 1/2" NPT threaded outlets on both the top and side, plus a 3/16" steel rear plate. It weighs 7-3/4 lbs.
  • 3/4" fan snout
  • Extra thick fan hub
  • 3/4" ultra duty bearings
  • Threaded for adjustable cam stop
  • State of the art aluminum castings
  • Equal flow to both cylinder banks
  • Precision impeller
  • Higher flow and pressure

910-15581 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Moroso 63500 Small Block Chevy Aluminum Short Water Pump


Moroso first pioneered the aluminum water pump for racing over 15 years ago. Over the years, continual improvements have resulted in providing the best cooling system components available for competition use.

  • Computer designed housing cast from 356-T6 aluminum
  • Lightweight impeller maintains consistent coolant temp throughout the water jacket
  • Low-drag impeller adds 14HP @ 7,500 RPM
  • Includes integral cam stop boss
  • Overall length of 5.603" from rear mounting face to hub face

Fits 1955-1968 “Short” design 5/8" shaft S/B Chevy appliactions. Note: Pump will not clear a billet 910-11040 timing cover.

545-63500 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Small Block Chevy Water Pump Gasket


Small Block Chevy Water Pump Gaskets

  • Paper
  • 0.03" thick
Red Line 80204 Water Wetter Coolant Additive


Red Line Water Wetter Super Coolant additive is a unique wetting agent which reduces coolant temperatures by as much as 20° F. This is a liquid coolant treatment product which is designed to be added to solutions of antifreeze and water to help improve the heat transfer properties of glycol-based antifreeze. This liquid product can be used to provide rust and corrosion protection in plain water for racing engines, which provides much better heat transfer properties than glycol-based antifreeze. Improves the ability of coolant to wet heat transfer surfaces by 50%.

  • Reduces or eliminates bubbles that form on hot metal surfaces to reduce coolant temperatures by up to 20°
  • Superior heat transfer properties compared to glycol-based antifreeze
  • Compatible with new or used antifreeze (including DEX-COOL and long-life versions) to improve the heat transfer of ethylene and propylene glycol systems
  • Improves heat transfer and reduces cylinder head temperature
  • Designed for use with all modern aluminum, cast iron, copper, brass and bronze cooling systems
  • Cleans and lubricates water pump seals
  • Reduces cavitation and complexes with hard water to reduce scaling
  • Does not lower cooling system below the thermostatically-controlled temperature
  • 12 fl. oz. bottle treats 12-20 quarts

Water Wetter Tech Info (PDF)

Learn more about how cooling systems work with proper coolant mixture and additives by reading our tech article. Cooling System Principles.
