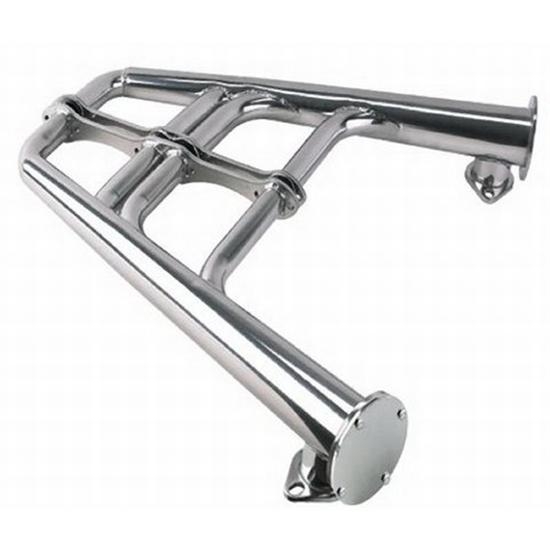

Small Block Chevy Lake Style Headers, AHC Coated

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Flange Style:
Round Port
Finish:
AHC Coated
Header Tube Type:
Lake Style
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.63
Tube Length:
29.00
Port Height:
1.72
Port Width:
1.41
Flange Thickness:
.37
Collector Diameter :
3.50
Header Dimension A:
16.75
Header Dimension B:
4.25
Header Dimension C:
28.75
Notes
Includes bolt on end plates.
Small Block Chevy Lake Style Headers, AHC Coated
Product Video
Small Block Chevy Lake Style Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Nostalgia-style street rods are hotter than ever, and nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers. The exposed small block Chevy lakester header works great on rods without hoods, but we’ve also seen them peeking through carefully trimmed hood sides. The headers have flanges so you can connect them to a muffled under-car exhaust when the end plates are on. These ceramic coated headers feature superior performance and durability.

  • Fits 265-400 c.i. with standard or Vortec heads including D-port ZZ-4 style heads (not LT-1)
  • Includes flange to connect 2” exhaust pipe
  • Removable end plates allow you to run open headers with ease
  • Includes gaskets and mounting hardware

NOTE: Turn-outs NOT included. Headers come with end plates (turn outs sold seperately).

Header Dimensions (GIF)

Lake Style Headers Diagram (GIF)

Item Details

1-5/8" Primaries, 3-1/2" Collectors

Application

  • 1-5/8" primary
  • 3-1/2" collector
  • 2" exhaust hook-up

Use the illustration below with these measurements:

Lake Style Headers Diagram (GIF)

  • A = 6-1/2"
  • B = 4-1/4"
  • C = 28-1/2"
  • D = 11"
  • E = 8-1/2"
  • F = 12"

Notes

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300¢ª F.

Specs


Warranties

Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Customer Reviews

Rated 4.7 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
4
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Bud in Sahuarita
Verified Reviewer
Sahuarita AZ

Go With CHROME...

April 30, 2015
Packaged Nice, finish is nice but more like aluminum, if you were going to paint them then AHC is better, but I wish I had gone with chrome. Do not care for the preinstalled flange for a exhaust pipe, this should be an option. Really like the look the car.
Pros:
  • Clean And Easy To Install
Cons:
  • Aluminum Look
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Scott27
Saint Augustine, FL, USA

Awsome Old School look

February 11, 2015
Bought these Lake style Headers to bring back the old school look. They look and sound great. Put baffles in for every day cruising pretty loud without baffles. Also added the end tips which look great and also divert the sound down should you decide to utilize. Product quality seems really good nice thick flanges. Nice coating no scratches. Highly recommend.
Pros:
  • Great quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rube
Pasco, WA, USA

Great headers, sound great too.

September 22, 2013
Great sounding w/o any baffle, but you can add the Speedway auger baffles with a little grinding and they sound great!!! Keeps the cops away too!! I wish the headers were avalible with out the bottom flange. I put over 5,000 miles on my car this summer with these pipes, they sound sweet!! Would recomend and will buy again for my next car project.
Pros:
  • the finish is great on the ahc
  • thick flanges
Cons:
  • bonneville salt kills the ahc coating.
  • adding the tip adds a lot of cost to the exaust
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rube
Pasco, WA, USA

Great headers, sound great too.

September 22, 2013
Great sounding w/o any baffle, but you can add the Speedway auger baffles with a little grinding and they sound great!!! Keeps the cops away too!! I wish the headers were avalible with out the bottom flange. I put over 5,000 miles on my car this summer with these pipes, they sound sweet!! Would recomend and will buy again for my next car project.
Pros:
  • the finish is great on the ahc
  • thick flanges
Cons:
  • bonneville salt kills the ahc coating.
  • adding the tip adds a lot of cost to the exaust
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

bad rod
shelby, ohio

REAL NICE !!!! LOVE THEM !!!!

May 27, 2012
These are show quality, you will not be disappointed with them!! Thanks again Speedway!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jim
Verified Purchaser
elyria,ohio

very well built product

July 16, 2010
had to return first set ,flange not welded completely.
Pros:
  • Fit very well
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 8 answers

2 answers

mufflers I am wanting to run only the turnouts and cap the lower exit. are there any mufflers or baffles that will work with minimal modification?

Bill13579
November 04, 2014

mufflers I am wanting to run only the turnouts and cap the lower exit. are there any mufflers or baffles that will work with minimal modification?

Answers

February 12, 2015
Scott27
Speedway has baffles but are currently on back order, supposed to be in this month. These baffles seem to be complete without having to weld on the flanges to the baffles. I did not want to wait so I purchased a set of baffles from carchemistry for $109.00, work great, but you have to have the flanges tack welded on.
November 05, 2014
EricM
I do have some muffler inserts for these coming soon. They are not available quite yet but should be very soon. The part number for them is 9303845. Give us a call in a couple weeks to check the status on these inserts.
1 answers

Are there any other color choices besides silver?

steelrjm
August 26, 2014

Are there any other color choices besides silver?

Answers

August 26, 2014
EricM
Sorry our AHC coating is only available in silver. If you would like to buy painted headers such as 9300550 you could send them to a coating company that may offer other colors of ceramic coating.
1 answers

What gauge metal?

Bob23t
Pittsford, NY 14534, USA
February 10, 2013

What gauge metal?

Answers

February 11, 2013
Jason
The primary tubes are 16 gauge on the Lake style headers. Flanges are 3/8" thick
2 answers

Do you know if they fit on 34'Ford 2dr sedan with suicide doors ?

BelAir5
Germany
December 17, 2012

Do you know if they fit on 34'Ford 2dr sedan with suicide doors ?

Answers

September 23, 2013
Rube
Speedway has all the dimensions listed in the catalog. I think they would work.
December 17, 2012
Jason
Sorry, we do not have a list of applications these headers will fit. We do offer the following measurements to help determine fit: Width of header at widest point from exhaust port - 7" at front side and 17" at rear Height of header from top of flange to lowest point - 0" Length of header from front of flange to collector - 29"
1 answers

Welds Are the tubes welded on BOTH sides of the flange (where they bolt to the head) ?

tfeverfred
Houston, TX
October 28, 2012

Welds Are the tubes welded on BOTH sides of the flange (where they bolt to the head) ?

Answers

October 29, 2012
Jason
The tubes are only welded on cylinder head side of flange
1 answers

looking for a set to fit 1996 lt1 motor can you help

January 09, 2012

looking for a set to fit 1996 lt1 motor can you help

Answers

January 12, 2012
John
Part number 9300550H The small block lake style headers works with standard port small block Chevy engines including the LT1. The headers will not work with some of the crate engine heads or the Fastburn or D port heads. If a standard small block header or manifold gasket matches your head configuration the headers should work fine.
Page 1 of 1
