Small Block Chevy Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Set
Finish:
Natural
Tube O.D.:
1.63
Flange Thickness:
.31
Flange Style:
Round Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Header Tube Type:
Lake Style
Notes

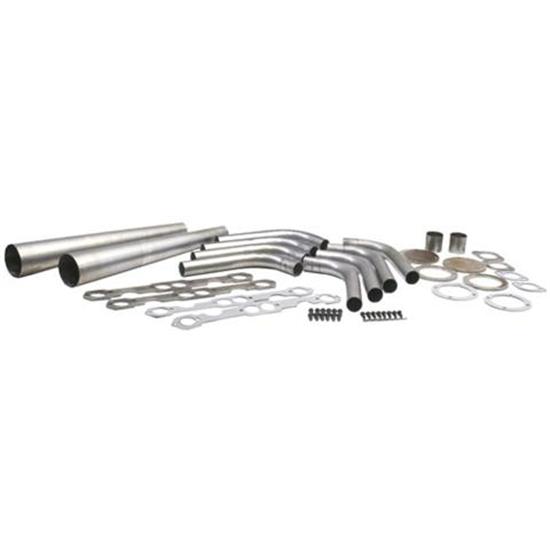

22" x 3.5" cones. Includes (8) primary tubes, gaskets, hardware, and flanges.
Small Block Chevy Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
Small Block Chevy Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
Small Block Chevy Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
Small Block Chevy Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Vintage style street rods are hotter than ever, and nothing gives your fenderless rod an authentic dry lakes competition look like a set of lakester headers. These lake style header kits allow you to build your own weld up headers and tailor them to your vehicle. All tubing comes pre-bent. Tapered cones can be trimmed as needed. Lakester header kit includes parts to complete both sides.

  • 5/16" thick flanges
  • 16 ga. pre-bent tubing
  • Collector flanges w/ block-off plates
  • Flanges for connecting an under-car exhaust system (2.5" O.D.)
  • Gaskets & bolts

Item Details

1-5/8" primaries
22" x 3-1/2" cones

Customer Reviews

Rated 4.4 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
4
4 Stars
3
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Ben307
Casper, WY, USA
Product Rating

SBC/ Mopar headers

September 19, 2013
This kit is made for a sbc but in my 31 dodge Ive got a 360 so the kit worked well for my application. The only thing I thought that would be helpful would have been if there were some kind of instructions. But as any hot rodder knows chop, cut weld and if that doesnt work then start over or repeat. Great set of headers!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mark's 27' Chrysler
Verified Purchaser
Salt Lake City Utah
Product Rating

Lake style headers

September 07, 2011
This kit is awesome for someone who is not an expert on building headers. this was my first time building a set and it turned out very professional and the fit is custom for my 1927 Chrysler street rod. I couldnt be more happy with the ease of use, the outcome and the low budget cost for such a nice set of headers.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fatbastard brothers
Verified Purchaser
tacoma, wa
Product Rating

Good value for buck

July 28, 2011
If flanges were laser cut instead of punched would be great product!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DARC CRASH
Verified Purchaser
TUCSON AZ
Product Rating

HEADER KIT

March 21, 2011
VERY WELL ASMB KIT NICE TO BE ABLE TO CUSTOM SET TOM MY SPECS
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

J Dub
Central, IL
Product Rating

Sweet

December 07, 2010
I love the look of lake headers, but need them to be custom to fit around my steering setup. This kit let me built a set that fit around the uniqueness of my truck at a reasonable price. Everythings included in the kit too...
Pros:
  • Complete kit
  • Inexpensive
  • Custom design
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Gixser
Avondale, Az
Product Rating

Another great product

April 19, 2010
3rd kit I have bought from Speedway. Save yourself some money and build your own. Only thing I did not like was the fact that the 22" cones are not sold separately..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dnaryl
Verified Purchaser
Port Charlotte, FL
Product Rating

Weld up kit with a lot of thought in it.

March 25, 2011
Sure you have to cut and weld but I like making my own stuff. A lot of thought has already gone into them. My engine is pushed back pretty far, but the primary tubes come long enough to clear the cowl/firewall on my 32'. The cones are also short enough so as to not interfear with my doors opening (my five window doors open forward).
Pros:
  • Great Sound
  • Adds Style
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

MetalMan
Product Rating

Good material

September 24, 2013
Product arrived as explained. Good pieces. A LOT OF WORK AND A TON OF TIME!
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 7 answers

I need between 11 to 13" on e measurement to clear the body. Will this kit do this can you use 1 5/8 straight pipe instead of the curved ones in the kit. the car is a 1971 VW super beetle on a 1996 Jeep wrangler frame and a 283 small block and a th350 trans.

1 answers
papas71vw
November 10, 2014

I need between 11 to 13" on e measurement to clear the body. Will this kit do this can you use 1 5/8 straight pipe instead of the curved ones in the kit. the car is a 1971 VW super beetle on a 1996 Jeep wrangler frame and a 283 small block and a th350 trans.

Answers

November 10, 2014
EricM
This header kit will build something similar to 9300550. That header has a width from the flange to the outside of the collector of 16 3/4". I am sure you could make that even wider when using the weld up kit.

Does speedway offer baffles for this kit so you can run just the headers?

2 answers
Sasquatchmystery
Oregon
March 27, 2012

Does speedway offer baffles for this kit so you can run just the headers?

Answers

September 20, 2013
Ben307
Yes they do. They are on the same page in the catolouge.
March 29, 2012
John
As always Speedway is attempting to fulfill our customers wants and desires. The lake style headers are a hit with the hot rodders and customers have used variations of baffles such as our Vortec cones or modified auger mufflers with decent results. We are working on a baffle/muffler type bolt on end or turn out and is something that will be coming but a definite time frame is still not available.

are there complete instructions included? showing the proper lay out for the pipes and flanges.

1 answers
rat rodder
peekskill n.y.
October 11, 2011

are there complete instructions included? showing the proper lay out for the pipes and flanges.

Answers

October 12, 2011
John
Part # 9300559 The lake style header kits are not for a specific vehicle and the 8 individual tubes are cut to your desired length to achieve the proper angle outward for body clearance or other preferences. They could also be cut at an angel to have the tapered cone below or above the head ports. There is a photo in our catalog and on the website of a finished header for reference but nothing for layout for the multitude of vehicles they are used on. The kit gives the customer the versatility to cut and weld as needed for their particular application. Speedway also offers pre assembled for many applications.

How lone are the cones?

1 answers
Jim
JAX, FL
August 22, 2011

How lone are the cones?

Answers

August 23, 2011
Jason
The cones are 22" long

How long are the flang tubes that connect from the flang to the cone?

1 answers
August 15, 2011

How long are the flang tubes that connect from the flang to the cone?

Answers

August 18, 2011
QC
Measuring the curve length through the center of the tube is 14.25". The straight length of the tube end to end is 11.5"

do you have these or something that will fit a 1957 pontiac

1 answers
Carl
Laingsburg MI.
June 03, 2011

do you have these or something that will fit a 1957 pontiac

Answers

June 08, 2011
John
This Lake Style header kit fits many hot rods and the flange is set up for small block Chevy engine. We also offer flanges for big block Chevy, Ford applications, and even some Mopar engines. If needed a specific flange we do not offer you may want to check with Pertronix for availability. If using these on full size vehicles other than cars and pickups from the 20’s and 30’s there will probably be clearance issues as the primary tubes do not extend far enough from the motor for clearance at the firewall. Feel free to check our website for other options for these applications.
Page 1 of 1
