Small Block Chevy Inboard A/C Brackets

SAME DAY SHIPPING! Order within the next 15 hours 28 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Centerline of Holes:
3.25

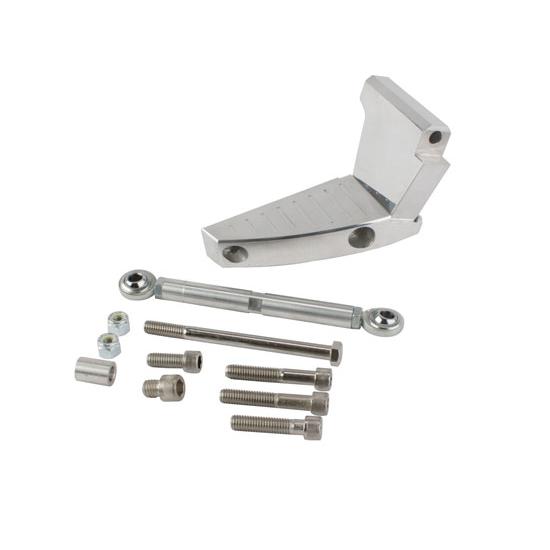

Small Block Chevy Inboard A/C Brackets
Small Block Chevy Inboard A/C Brackets
Small Block Chevy Inboard A/C Brackets

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our polished billet aluminum brackets to make this a simple installation.

Inboard (high) mount brackets for early cars.



Note: S/B Chevy, short style water pump only.

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 5 answers

1 answers

Will this bracket work with vortec heads? I am putting a new vortec engine with a 4 barrel carb in a 55 Ford truck. I do not need to buy brackets that will not work with the vortec heads.

RedVickies
Somerville, TN, USA
January 10, 2015

Will this bracket work with vortec heads? I am putting a new vortec engine with a 4 barrel carb in a 55 Ford truck. I do not need to buy brackets that will not work with the vortec heads.

Answers

January 12, 2015
EricM
Yes this bracket will work with Vortec heads.
1 answers

What is the Bolt spacing on this Bracket? I need one that is 4 1/2" inches,For a set of World Products-Sportsman II Heads-Thanks

bebop1956
Independence,Mo.
February 09, 2011

What is the Bolt spacing on this Bracket? I need one that is 4 1/2" inches,For a set of World Products-Sportsman II Heads-Thanks

Answers

February 14, 2011
Waymon
The bolt spacing is 3 1/2 inches.
2 answers

Will this bracket work with three 2gc rochester two barrel carbs?

dave
Waxhaw, nc
September 09, 2011

Will this bracket work with three 2gc rochester two barrel carbs?

Answers

July 02, 2015
Eric
Expert
These inboard mount alternator and a/c mounting brackets put the components between the valve covers and thermostat housing allowing sufficient room for passage of the hose to the radiator. The a/c compressor sits back behind the thermostat housing and would have interference with the front carburetor on a three deuce intake.
September 12, 2011
John
These inboard mount alternator and a/c mounting brackets put the components between the valve covers and thermostat housing allowing sufficient room for passage of the hose to the radiator. The a/c compressor sits back behind the thermostat housing and would have interference with the front carburetor on a three deuce intake.
1 answers

I have a small block in an 86 chevy crew cab. It looks like this mounts ONLY to the head using the top two bolt holes. Can I run this on the drivers side and put the compressor on this still? Also which compressor does this bolt to? Do I need the small pancake style, or can I use the stock 86 compressor? I swapped from BB 454 to SB350, which I why I can't use the original bracket. Thanks,

Brandon
Wyoming
June 10, 2015

I have a small block in an 86 chevy crew cab. It looks like this mounts ONLY to the head using the top two bolt holes. Can I run this on the drivers side and put the compressor on this still? Also which compressor does this bolt to? Do I need the small pancake style, or can I use the stock 86 compressor? I swapped from BB 454 to SB350, which I why I can't use the original bracket. Thanks,

Answers

June 10, 2015
Zach
Expert
If you install this on the other cylinder head the whole bracket will move forward slightly and you will have belt alignment issues. This is to be used with Sanden 508 style compressors
Page 1 of 1
