Small Block Chevy Header Kit, 1-7/8 Standard Port, 3-1/2 Collector

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Natural
Tube O.D.:
1.88
Port Height:
1.92
Port Width:
1.53
Flange Thickness:
.25
Flange Style:
Rectangular Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Collector Length:
8.50
MFG. Part #:
1005
Garage Sale:
No
Small Block Chevy Header Kit, 1-7/8 Standard Port, 3-1/2 Collector
Small Block Chevy Header Kit, 1-7/8 Standard Port, 3-1/2 Collector
Small Block Chevy Header Kit, 1-7/8 Standard Port, 3-1/2 Collector
Small Block Chevy Header Kit, 1-7/8 Standard Port, 3-1/2 Collector

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

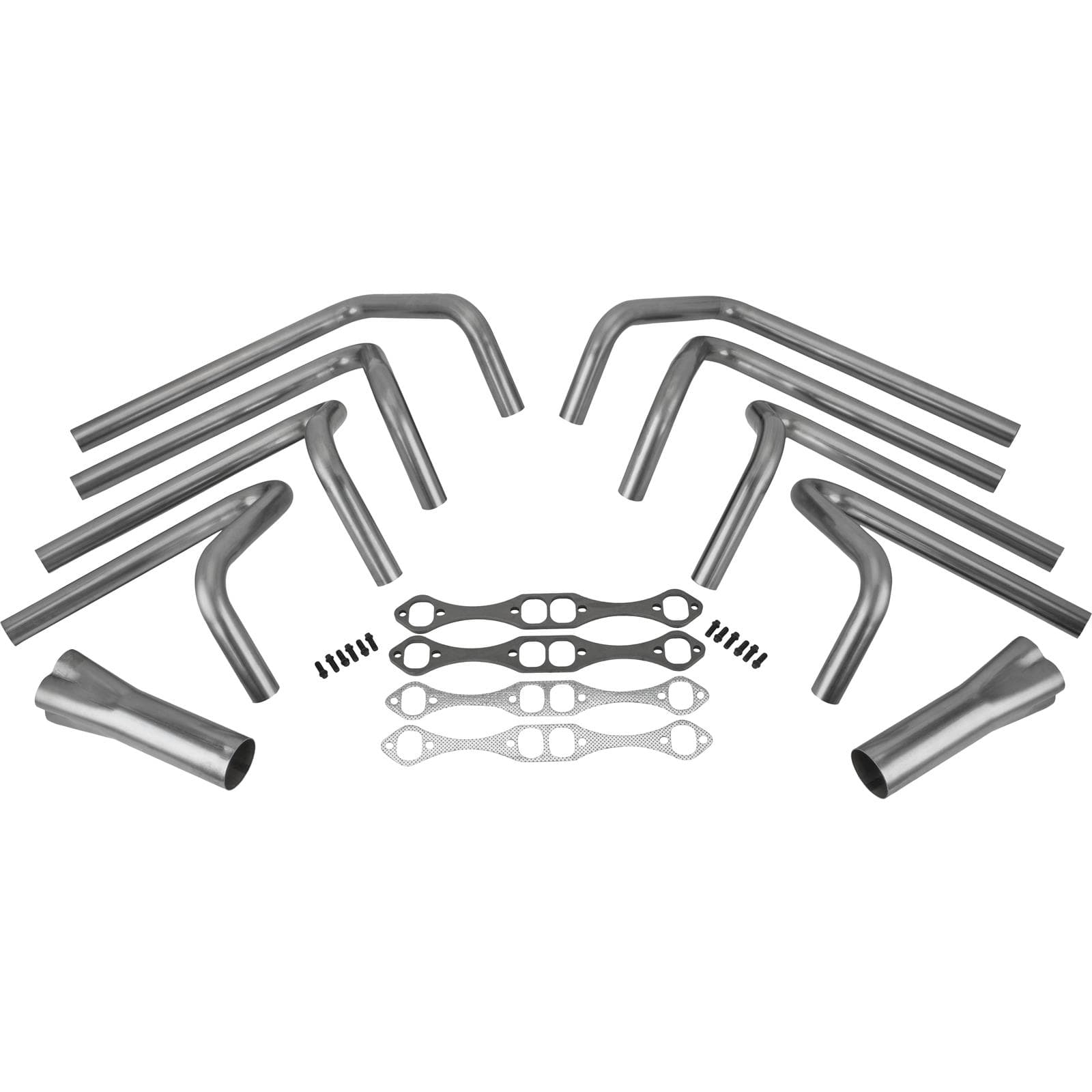

Save money by welding and assembling your own headers! These small block Chevy header kits will work for many racing and rodding applications. It includes everything you need to assemble a pair of high-quality headers: eight mandrel-bent primary tubes, two pre-formed collectors, two extra-thick standard-port flanges, two gaskets, and 12 header bolts.

Designed for the seasoned, hands-on enthusiast, weld up headers will require some cutting, fitting and welding.

  • Thick 1/4" steel flanges
  • Mandrel-bent 18-gauge mild steel tubing
  • Pre-formed 4-into-1 collectors
  • 8" length from longest to tube flange to bend
  • 5" length from shortest tube flange to the bend

Specs


Item Details

1-7/8" Square Port, 3-1/2" Collector

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Luckey
Verified Purchaser
Cincinnati
Product Rating

Not for everyone

November 27, 2011
If your fab skills are high then this kit can be very easy to work with. There is more than enough tubing to cut, twist and relocate the tubing as needed. However-- If your not a fab guy, get some help.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kels
Verified Purchaser
Product Rating

Mud Truck Parts

July 28, 2014
bought these for my fiance for his mud truck as a gift he knew what it was before he opened the box, will be ordering some more parts soon :) thanks
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
