Small Block Chevy Aluminum Windage Tray

SAME DAY SHIPPING! Order within the next 12 hours 54 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Notes
To mount pan in oil pan PN# 91015137, will require some type of retainers into the pan to hold tray in place.

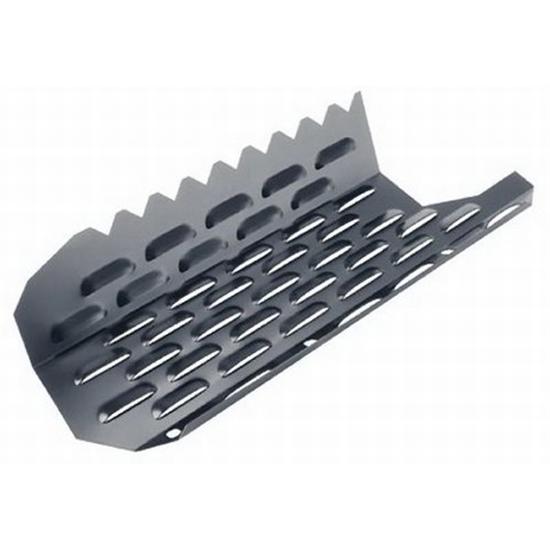

Small Block Chevy Aluminum Windage Tray

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Bolt-in replacement, louvered windage tray for S/B Chevy champ style pan. Add horsepower and lower oil temperatures.

Works great with pan 91015108 when replacing the steel plate bolted to the bottom of the pan.

Fits in pan 91015137 but there is no way to attach the tray. Will need to come up with a way to mount it in the pan.

Fits with pan 91015106 but it doesn't fit the existing bolt pattern and would require a new way to mount as well as removing the studs in the pan.

Note: Not applicable to # 91015104 champ style pan.

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
