Small Block Chevy Aluminum Water Pump, Long

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Weight:
8.05
Sold in Quantity:
Each
Finish:
Natural
Shaft Diameter:
0.63
Mounted Length:
7.38
Shaft Length:
0.45
Hose ID:
1.80
Gasket(s) Included:
Yes
Hardware Included:
Yes
Heater Inlet Size:
1/2" NPT
MFG. Part #:
910-15590
Water Pump Style:
Long
Water Pump Type:
Mechanical
Notes
Clearance from back of pump to engine block mount is 1.38" Not for engines exceeding 5,500 RPM.
Small Block Chevy Aluminum Water Pump, Long

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

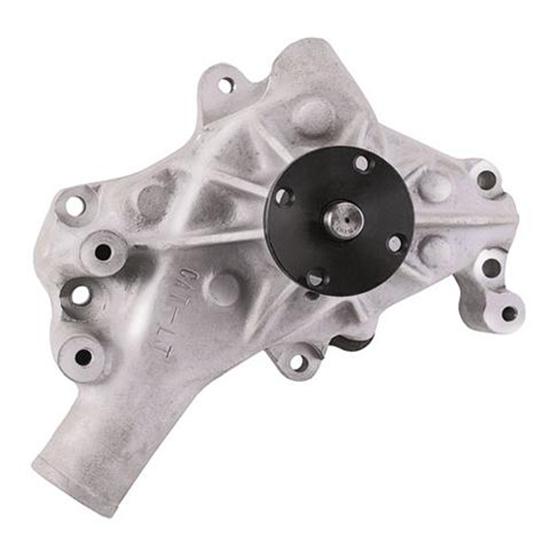

Lightweight aluminum long style pump for S/B Chevy. Has provisions for your power steering mount.

NOTE: This pump is designed for street use and is not to be run on a motor which exceeds 5,500 RPM.

910-15590 Instructions (PDF)

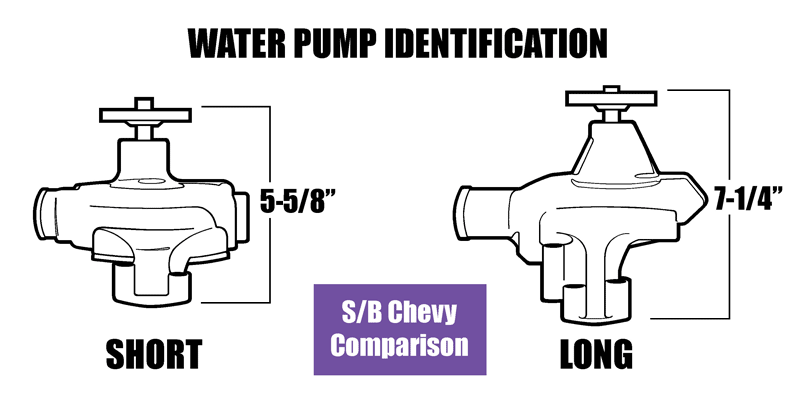

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

wolfie
Verified Purchaser
la

Small Block Chevy Aluminum Water Pump, L

August 20, 2014
You or the best in my book . the al water pume is the best that got from speedway in 2 days . tk. carl ahysen p/s keep up the good work I will be ordering carlahysen@yahoo.com
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

1 answers

is the boss for the power steering bracket threaded

joej
West Haven, CT, USA
March 11, 2015

is the boss for the power steering bracket threaded

Answers

March 13, 2015
EricM
Yes the accessory bosses on this water pump are threaded.
1 answers

Does this water pump have a threaded boss so a stud can be installed to to prevent distortion of the timing cover on roller cam applications

Burton
Wisconsin
February 12, 2015

Does this water pump have a threaded boss so a stud can be installed to to prevent distortion of the timing cover on roller cam applications

Answers

February 12, 2015
EricM
Yes this water pump has a boss to use for a cam support bolt.
2 answers

Will this work on 88' - up SBC with a serpentine belt? 88'-95' GM truck with 305 (5.0L) & 350 (5.7L) 88'-92' GM F-body cars - Camaro/Firebird with 305 & 350 (5.0L & 5.7L)

72LS5
FL
May 04, 2013

Will this work on 88' - up SBC with a serpentine belt? 88'-95' GM truck with 305 (5.0L) & 350 (5.7L) 88'-92' GM F-body cars - Camaro/Firebird with 305 & 350 (5.0L & 5.7L)

Answers

August 28, 2014
PETERO
NO,UNLESS YOU HAVE NO ALTERNATOR
May 06, 2013
Jason
This small block chevy long water pump is listed for the following applications: Chevrolet 262-400 Small Block & 90° V6, Light Duty Trucks Years:1969-87, 1973-86
Page 1 of 1

You may also be interested in:

Stewart Components 13113 Small Block Chevy Stage 1 Water Pump, Long
(Part #91015539)


Uses new, OEM cast iron castings machined and assembled by Stewart Components to their exacting standards. They feature higher flow and pressure for better cooling. They have a 3/4" bearing and 5/8" shaft. Precision ground hub for perfect pully alignment, equal flow to left and right cylinder heads. Precision impeller installed to exacting tolerances.

Includes gaskets. One year warranty.

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Double Groove Water Pump Pulley for Small Block Chevy Long Pump Black
(Part #91039605)

This double groove water pump pulley for Small Block Chevys will replace your lost or damaged pulley. This product is sold individually.
  • Replace lost or damaged original pulleys
  • Black Painted finish
  • Small Block Chevy
  • Long Pump
  • Sold Individually
Triple Groove Crank Pulley for Small Block Chevy Long Pump Black
(Part #91039608)

This triple groove crank pulley for Small Block Chevys will replace your lost or damaged pulley. This product is sold individually.
  • Replace lost or damaged original pulleys
  • Black Painted finish
  • Small Block Chevy
  • Long Pump
  • Sold Individually
Reduction Pulley Combo for Small Block Chevy Long Pump
(Part #91015461)


Combo includes cast aluminum double-groove aluminum water pump pulley, crank pulley, and matched pair of heavy duty belts. Slows water pump speed by 20% for increased horsepower.

For Small Block Chevy V8s with '69-'86 long style water pumps with 5/8" shaft.

Note: The lower crank pulleys in our combo kits are manufactured thicker than normal stock pulleys.  This requires longer 3/8" bolts to be purchased separately.  Allen head type bolts recommended.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump

Small Block Chevy Alum. Long Pump Double Groove Upper Pulley
(Part #91015476)
                        Cast aluminum double groove V-belt upper pulley for 69-85 Small  Block Chevy long style water pumps. Fits over 5/8" water pump snout, but can be  drilled out to 3/4" if needed.
  • Precision machined aluminum construction
  • Lightweight and strong
  • Two grooves for V-belts
  • Hub surface to first groove center: 2.415"
  • Center-to-center of grooves:  11/16"
  • Center hole fits a 5/8" shaft (can be drilled out to 3/4" if needed)
  • Diameter:  6-5/8"

It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Item Details

Double Groove, 6-5/8" Diameter
Small Block Chevy Cast Alum. Long Pump Double Groove Lower Pulley
(Part #91015488)


Speedway Cast Aluminum double groove pulleys for Small Block Chevy feature a 20% reduction. Reduction pulleys have a smaller diameter which slows the speed of your fan, water pump, and alternator to reduce drag for more top-end horsepower. Plus, high RPM water pump operation is improved due to reduced fluid cavitation.

This is a 25% reduction pulley when used with the correct upper pulley, part number 91015476.

  • Machined from lightweight cast aluminum
  • Superior belt retention with extra-deep grooves
  • 20% reduction slows accessories down for less drag
  • Adds top-end horsepower
  • Reduces water pump impeller speed below cavitation threshold
  • Improved high-RPM cooling capabilities
  • 910-15488
    • 5-7/16" O.D.

Available for long water pumps. 5/8" shaft.

Note: The lower crank pulleys are manufactured thicker than normal stock pulleys.  This requires longer 3/8" bolts to be purchased separately.  Allen head type bolts recommended.

Item Details

Cast Aluminum Lower
