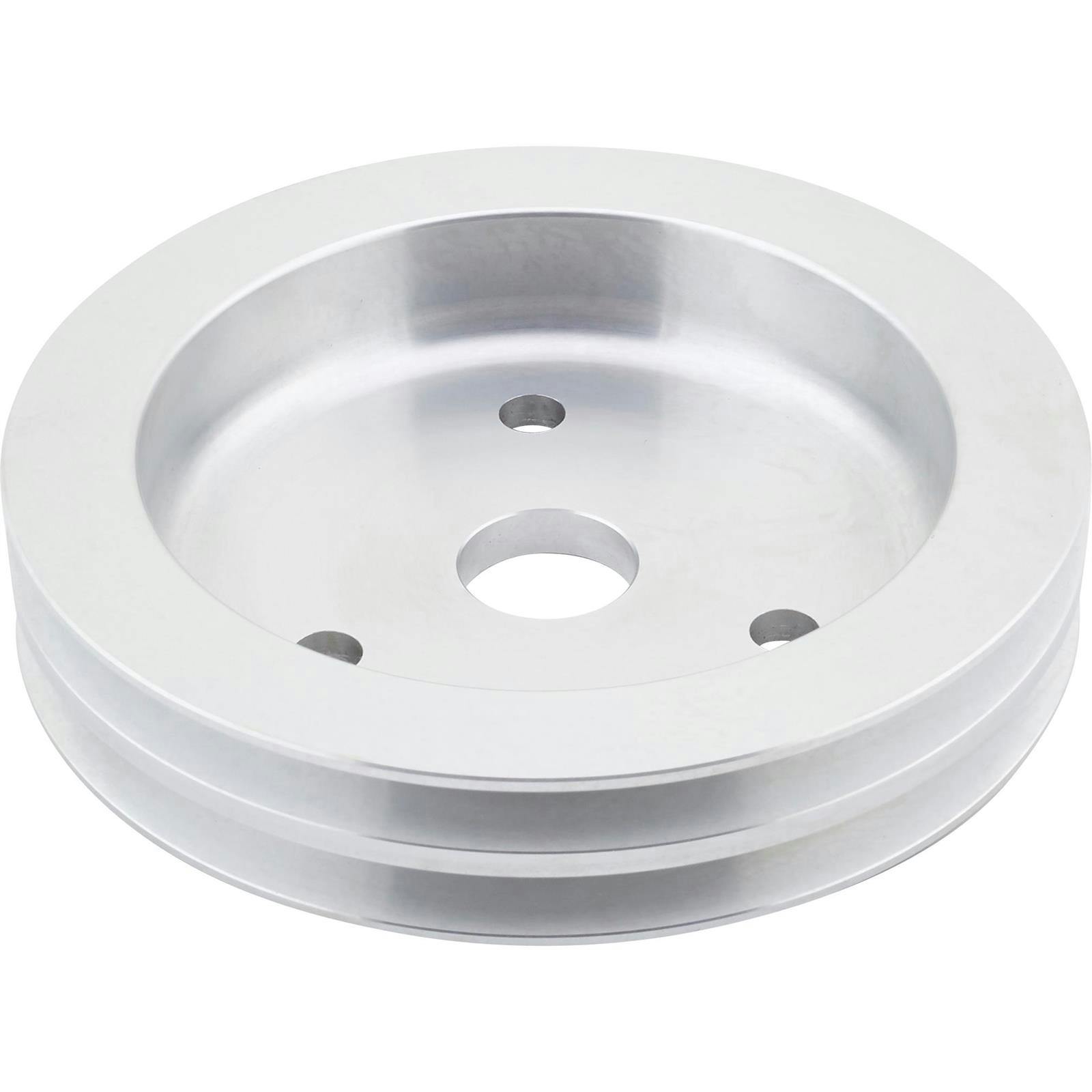

Small Block Chevy Aluminum Double Lower Pulley, Short Pump

Price:
$34.99
EA
In Stock
Item #:
91015474
Item Details:
Double Groove, 6-5/8" Diameter
Small Block Chevy Aluminum Double Lower Pulley, Short Pump
Click image to enlarge Click image to enlarge
  • Small Block Chevy Aluminum Double Lower Pulley, Short Pump
  • Small Block Chevy Aluminum Double Lower Pulley, Short Pump
No video at this time.


Cast aluminum double groove V-belt crankshaft pulley for use with '55-'68 Small Block Chevy short style water pumps.

  • Precision machined aluminum construction
  • Lightweight and strong
  • Double grooves for two V-belts

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

  • 91015474
    Overall Diameter
    6.600"
    Mounted Length
    1.250" (1 1/4")
    Inside Diameter
    1.100"
    Bolt Hole Pattern
    3 on 2.75
    Groove Count
    2
    Belt Width
    0.420"
    Belt Type
    V-Belt
    Material Type
    Aluminum
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    Mounted length is from the face of the harmonic balancer towards the front of the vehicle.
  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment.  There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump ID Chart (GIF)
