Small Block Chevy 4340 Steel H-Beam Rods, Bushed Pin

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Weight:
-
Sold in Quantity:
Set
Center to Center:
-
Crank Pin Diameter:
-
Wrist Pin Diameter:
.927
Rod Crank End Width:
.94
Notes
Torque rod bolts to 63 ft./lbs
Small Block Chevy 4340 Steel H-Beam Rods, Bushed Pin
Small Block Chevy 4340 Steel H-Beam Rods, Bushed Pin
Small Block Chevy 4340 Steel H-Beam Rods, Bushed Pin

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

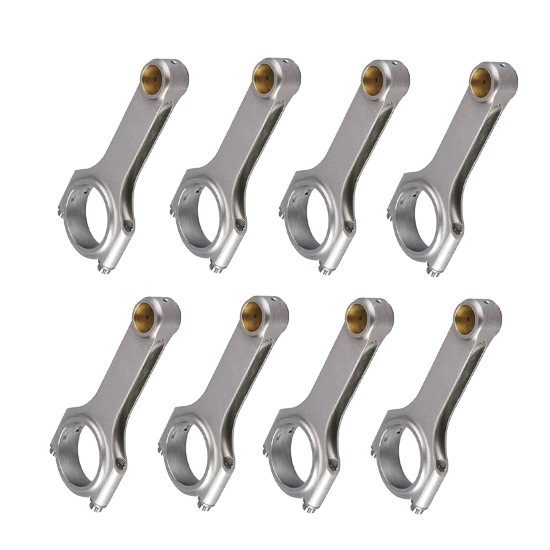

Heavy duty H-beam connecting rods for S/B Chevy. Full floating wrist pin in silicon bronze bushing. Precision bolt bushing to positively locate cap. Features 8640 PCE 7/16" cap screws.

Weight matched sets of 8. Available in 5.7" or 6.0" lengths.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Rangerfan937
Verified Purchaser
Uhrichsville Ohio
Product Rating

H beam rods...

April 15, 2011
Great quality seen simular rods for $300. that wasnt this nice....
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

7 questions : 9 answers

what do i torque the rod bolts to?

1 answers
Dibbs
August 28, 2014

what do i torque the rod bolts to?

Answers

August 29, 2014
EricM
Torque spec on the rod bolts is 63 ft/lbs

are these small or large journal? if these are large do you have small?

2 answers
Racecar2000
December 19, 2013

are these small or large journal? if these are large do you have small?

Answers

May 04, 2014
njimspeaker
Large 2.10
December 19, 2013
EricM
These are large journal. For small journal rods I offer part numbers 91015227, 91015237, and 2491600.

What is the MAX RPM for the rods?

1 answers
Speed
Atlanta, GA, USA
December 09, 2013

What is the MAX RPM for the rods?

Answers

December 10, 2013
EricM
There is no specified max RPM on this connecting rod. That is due to the fact that the weight of piston, stroke, and type of use greatly affect the RPM ability of any connecting rod. In practice we have seen these connecting rods used in engines from 305 to 412 cubic inches ranging from 300 to 600 HP for various applications. If you will be using a mid weight piston and a 3.75" stroke I would use this connecting rod up to about 7500 RPM in an endurance application. If used with a light weight piston and/or shorter stroke I would use it for even higher RPM than that. If you will be nearing 9000 RPM or higher I would recommend a lighter weight connecting rod with upgraded rod bolts.

Are these rods stroker clearanced?

2 answers
ModMan9
Tucson, AZ, USA
May 02, 2013

Are these rods stroker clearanced?

Answers

November 24, 2013
BillR
Hbeam rods are strong but not stroker clearanced.
May 02, 2013
Jason
No, the 4340 H beam rods are not stroker clearanced. These are a standard shape rod.

what is the wrist pin diam for this sbc rod?

1 answers
Sac, ca
March 11, 2012

what is the wrist pin diam for this sbc rod?

Answers

March 13, 2012
Eric
These connecting rods use standard SBC .927" wrist pins.

How much does each rod weigh?

1 answers
Tom
Kennesaw, GA
December 31, 2010

How much does each rod weigh?

Answers

January 04, 2011
Pat
Part number 910-15328 the 5.7 rods weigh 622 grams each and the 6.0 rods weigh 631-638 grams each.

what is the rpm range and hp range for this rod

1 answers
January 21, 2011

what is the rpm range and hp range for this rod

Answers

January 24, 2011
Eric
These rods are rated at 700+ hp.
