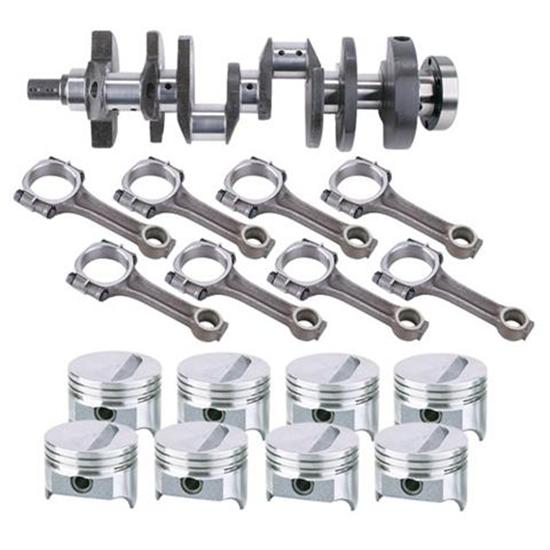

SB 383 Chevy Rotating Assem., One Piece, Flat Top-2 Valve, 6 In. Rod

SAME DAY SHIPPING! Order within the next 12 hours 55 minutes and receive same day shipping

Specs
Sold in Quantity:
Kit
Stroke:
3.75
Main Journal Style:
350 mains
Rod Journal Diameter:
2.10"
Rear Main Seal Style:
1-piece
Wrist Pin Diameter:
.9272
Piston Ring Style:
C
Connecting Rod Length:
6.000"
Piston Weight:
425
Wrist Pin Weight:
102
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No
Main Journal Diameter:
2.448"
Bearing Undersize:
Standard
Narrowed Bearing:
Yes
Bearing Construction:
Bi-metal
Coated Bearing:
No
Crankshaft Material:
Cast Steel
Connecting Rod Type:
I-Beam
Connecting Rod Material:
Forged 5140 Steel
Connecting Rod Bolt Diameter:
3/8"
Connecting Rod Weight:
585
SB 383 Chevy Rotating Assem., One Piece, Flat Top-2 Valve, 6 In. Rod
SB 383 Chevy Rotating Assem., One Piece, Flat Top-2 Valve, 6 In. Rod

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Speedway introduces forged rotating assembly engine rebuild kits, with an optional balance job. Includes new 2-pc rear main seal crank, rods and pistons. Cranks are new so they use standard size bearings.

New one piece rear main cast steel crank. Standard size journals. Hyperuetectic piston set and Speedway Super Stock rods. ARP rod bolts.

All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience!  A kit purchased with the optional balance job will ship in 24-48 hours.

NOTE: Piston rings are not included and must be purchased separately.

Notes

Kits include:

  • Scat Cast Steel Crankshaft
    • One-piece rear main
    • 80-60-06 cast steel construction
    • Fatigue-resistant with near forged steel endurance
    • Standard size journals
  • Speedway 5140 I-Beam Claimer Connecting Rods
    • 5140 heat treated steel
    • Shot peened and magnafluxed
    • Press pin
    • 6.0" length
    • 585 grams
  • KB Signature Series Hypereutectic Claimer Pistons
    • Coated skirts
    • Wrist pin lock rings
    • T-5 hypereutectic construction
    • Can be used with press fit or floating wrist pins

Item Details

Flat top, 2 valve relief
