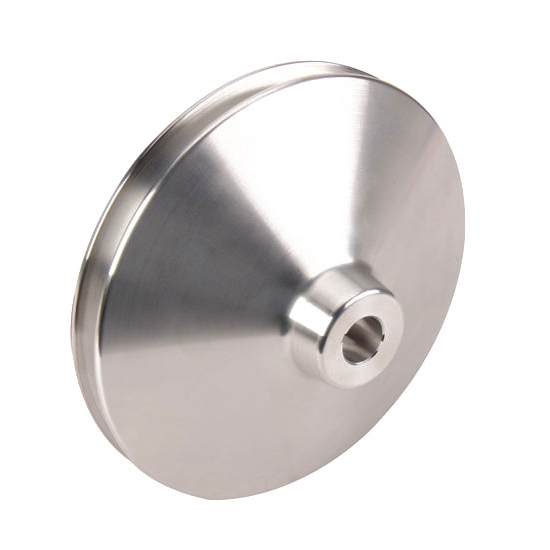

Single Groove Power Steering Pump Pulley, Billet Aluminum, Short Pump

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Belt Type:
V-Belt
Finish:
Natural
Overall Thickness:
.88
Inside Diameter:
.63
Outside Diameter:
5.75
Belt Width:
.38
Offset:
1.75
Single Groove Power Steering Pump Pulley, Billet Aluminum, Short Pump
Single Groove Power Steering Pump Pulley, Billet Aluminum, Short Pump
Single Groove Power Steering Pump Pulley, Billet Aluminum, Short Pump

Click image to enlarge

Details

Reviews (2)

Q & A (1)

What's in the Box

Info

Power steering pump pulley for use with short-style (1955-1968) water pumps. Available in plain billet only.

  • For use with our 91032908 power steering pump
  • Use with 2-groove lower crank pulley when using P/S bracket 91667920
  • Pulley runs off outer groove of lower crank pulley
  • 5/8" shaft hole w/ key way
  • Chamfered on the back side to allow clearance on pumps

Customer Reviews

Rated 3 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

abone
Verified Purchaser
Fort Myers, FL, USA

very well done pulley

February 03, 2015
This was an easy install of a product that fit well and looks good
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

niff
Verified Purchaser

puzzled

June 11, 2014
I could not get this pulley to work with PS pump 91032908. Pulley stuck out way passed the third pulley on crank.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a refund upon return of the pulley. We apologize for any inconvenience this may have caused.
Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

what is the pump thickness from block to end of shaft?

May 25, 2011

what is the pump thickness from block to end of shaft?

Answers

June 02, 2011
Tech
The pump thickness is 6.1360" from the tip of the shaft to the block.
Page 1 of 1
