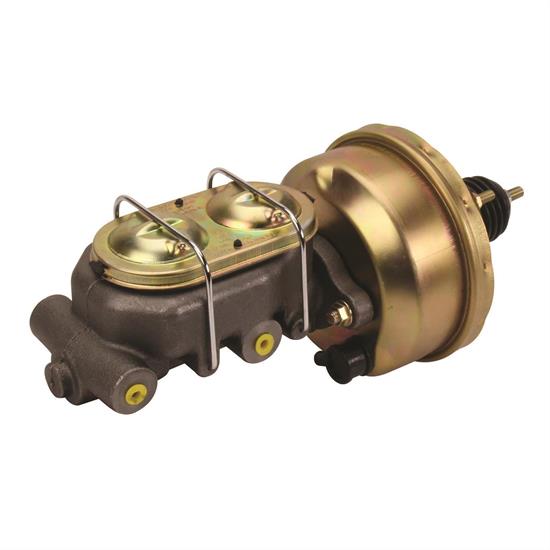

Single 7 Inch Brake Booster Master Cylinder Combo, 1 Inch Bore

SAME DAY SHIPPING!

Specs
Centerline of Holes:
3.38
Material Type:
Steel
Overall Length:
11.75
Sold in Quantity:
Kit
Outside Diameter:
7.00
Bore Size:
1.00
Outlet Fitting:
3/8"-24 (4)
Bolt Hole Pattern:
3.38" x 3.38"
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Compact for installation under floor or on firewall of almost any vehicle. Booster measures only 7" in diameter. Cast iron master cylinder has a 1" bore and is suited for disc-disc or disc-drum combinations.

Master cylinder features two 3/8"-24 inverted flare ports on each side (plugs are included for ports not in use).

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Specs

  • Pushrod-to-mounting flange is 5-1/2"
  • Four bolts on 3-3/8" centers
  • Booster is 3.75" thick
  • Master cylinder combo is 11.875" from end of the master cylinder to the firewall
  • (4) qty 3/8"-24 outlet ports (2 plugs included)
  • 8" from mount to outer edge
