Shock Mount Studs

Specs
Material Type:
Steel
Overall Length:
3.625
Sold in Quantity:
Each
Finish:
Zinc
Overall Diameter:
1.25
Stud Length:
1.250
Stud Diameter:
.625
Notes
Threads at bracket end are 1/2"-20 x 1 1/8". Threads at shock end are 7/16"-20 x 7/8".

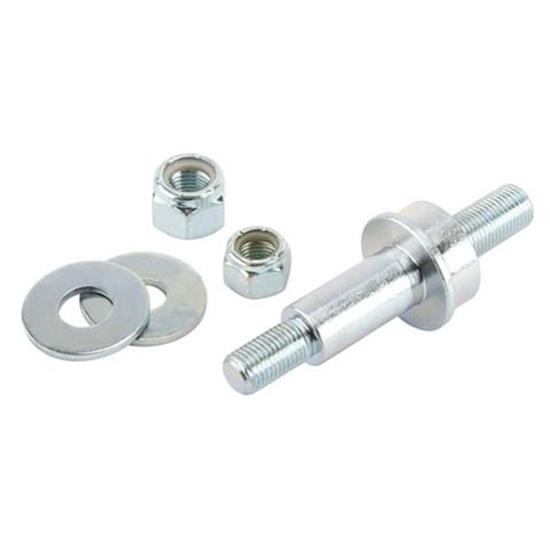

Shock Mount Studs

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Shock mounting stud is approximately 3-5/8" in overall length. The part where the shock rides, is 5/8" O.D. and approximately 1-1/4" wide and the threads at the shock end are 7/16"-20, about 7/8" long. The threads at the bracket end are 1/2"-20, about 1-1/8" long.

Studs sold individually.



Item Details

1/2" Stud, 5/8" Shank

Customer Reviews

Rated 4.8 out of 5 by 23 reviewers.
RATING BREAKDOWN
23 reviews
5 Stars
19
4 Stars
4
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dons82cam
Verified Purchaser
Guthrie Oklahoma
Product Rating

shock mount bolts

March 15, 2015
Theres not much to say, they look good and look to be well made. They are going to replace the rusted and deteriated factory studs.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Blackwater
Verified Purchaser
Middle Tennessee
Product Rating

These work

February 23, 2015
Ain't much else to say. They're strong and easy to use. Good finish and lock nuts supplied.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

malcolm1943
Verified Purchaser
Montclair, CA, USA
Product Rating

shock mount bolts

February 11, 2015
These were exactly what I was looking for, the shipping was timely and the product was as advertised. I am not a big fan of nylock nuts however and replaced them with standard nuts and lock washers. The nylocks are very hard to get started and I did not want to mar the surfaces of the bolts using vise grips to get them on.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RatRodRick1
Verified Purchaser
Detroit, MI, USA
Product Rating

Nice part. Cleans up installation

September 27, 2014
These parts look good & work well. Better than stacking up washers, etc. A nice inexpensive detail for a clean installation of your shocks.
Pros:
  • work well
  • inexpensive problem solvers
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bobaluma
Verified Purchaser
Petaluma, CA, USA
Product Rating

Great part at a reasonable price!

April 05, 2014
A real time-saver. It would take a good machinist 2 hours to make one of these studs, not-to-mention the zinc plating and nylock nuts. I have 8 of these studs on my ratrod and will be using these shock studs on all of my future builds.
Pros:
  • Well designed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

caseyrod
Verified Purchaser
Hollywood, FL, USA
Product Rating

just what i needed

October 21, 2012
saves a lot af time good prices good fit or minor modification.fast delivery.
Pros:
  • Time saver
Cons:
  • it only comes in one size
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dnaryl
Verified Purchaser
Port Charlotte, FL
Product Rating

Inexpensive and sturdy

December 01, 2010
I fabricate a lot of my own parts, but Speedway offers a lot of short cuts for less than I can make them for. My 32 project has very sturdy shock towers. I drilled and tapped the towers and my tube axle to allow me to screw these studs in and once tightened in I welded them solid. They're not going any where. The price was right and they saved me time.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fritz the Cat
Verified Purchaser
Chico, CA
Product Rating

a shock stud that works

November 08, 2010
Rear Shock screw in upper mount for '32 Roadster project.
Pros:
  • Easy To Use
  • No Brainer
  • Good finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Eric
Mount Airy N.C.
Product Rating

shock mount studs

November 05, 2010
Excellent quality and great price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Boggie
Bloomingdale, MI
Product Rating

Hander than duct tape

November 07, 2010
Easy to install and mounts almost anywhere
Pros:
  • Easy To Install
  • Very Solid
  • Mounts almost anywhere
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 3
91036096

Product Q&A

4 questions : 4 answers

1 answers

can this fit an isuzu rodeo My rear stud broke off when replacing shock

ironhead
Ottawa, ON, Canada
January 16, 2013

can this fit an isuzu rodeo My rear stud broke off when replacing shock

Answers

January 16, 2013
Jason
This is a universal shock stud, please compair following dimensions to your needs.The threads at bracket end are 1/2"-20 x 1 1/8". Threads at shock end are 7/16"-20 x 7/8". The overall length is 3.625", overall diameter is 1.25" and shouolder is .625" diameter by 1.25" long.
1 answers

will this part work on a mr roadster rear 4 bar for a model a ford?

port Angeles wa.
January 11, 2012

will this part work on a mr roadster rear 4 bar for a model a ford?

Answers

January 12, 2012
John
Part number 91036096 This shock mount stud would work on our rear 4 bar bracket for the model A such as number 91649055 if running standard shocks. If you want to use Coil Over shocks on the four bar bracket then we suggest part number 91636010. It will be necessary to drill the ½” hole on the four bar bracket to 5/8” in order to use the coil over shock mount.
1 answers

What material are these?

greg
glendora, ca
May 16, 2011

What material are these?

Answers

May 17, 2011
Jason
Steel, zinc plated
1 answers

Shank diameter Do you sell these with a 1/2" shank for 1991/2 GMC Syclone/Typhoon? The stock shock eye is 1/2" diameter.

Mark
UK
October 05, 2012

Shank diameter Do you sell these with a 1/2" shank for 1991/2 GMC Syclone/Typhoon? The stock shock eye is 1/2" diameter.

Answers

October 05, 2012
Jason
Sorry, at this time we do not offer with 1/2" shank
