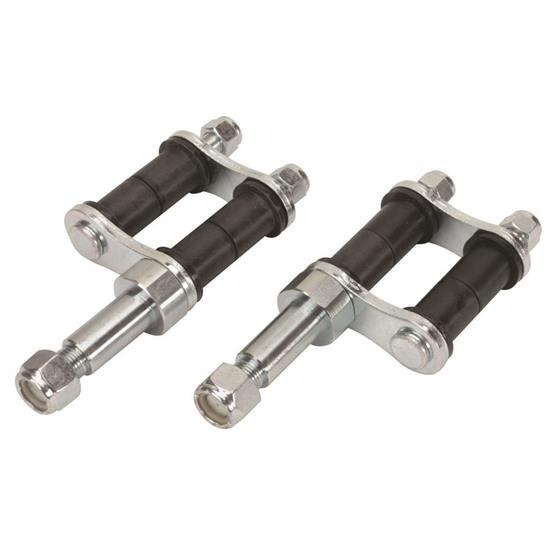

Shackles with Shock Stud Mounts

SAME DAY SHIPPING! Order within the next 9 hours 2 minutes and receive same day shipping

Specs
Material Type:
Stainless Steel
Sold in Quantity:
Pair
Finish:
Polished
Stud Length:
1.25
Stud Diameter:
.63
Center to Center:
1.50
Inside Width:
2.00
Bushing Material:
Nylon
Spring Eye I.D.:
.75
Garage Sale:
No
Shackles with Shock Stud Mounts
Shackles with Shock Stud Mounts
Shackles with Shock Stud Mounts
Shackles with Shock Stud Mounts
Shackles with Shock Stud Mounts

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

A great solution to the age old problem of mounting tube shocks to your straight axle setup.
  • Stainless Steel or Plain
  • 1-3/4" Shackles with extended stud for lower shock mounting

Customer Reviews

Rated 4.8 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
6
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

hoytrods
Verified Purchaser
Des Moines, IA, USA

shackles with stud mount

April 08, 2015
spring shackle mounts with stud works great just as described in the ad sales staff at Speedway was amazing
Pros:
  • speedway was a great help
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

HotrodNick
Verified Purchaser

Perfect fit, great alternative to tradit

March 29, 2015
The fit is great on this, no slop or play. Very well made and a great alternative to the regular shock mount.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

GrayGoat
Verified Purchaser
Columbia S.C.

Excelent quality and flawless finish

September 04, 2014
I ordered these polished shackles and shocks as part of a front end kit and opening the box was like looking into a jewelry case. A beautiful part with a flawless polish, some great eye candy for my front suspension.
Pros:
  • fabulous finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

popshh1
Verified Purchaser
Seneca, SC, USA

1923 ford T Bucket

August 28, 2014
Used this item on a 1937-41 Ford straight axle to mount the front spring, fits perfect. I'm very please with this product.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

MarcE
Verified Purchaser
Springfield IL

Very nice

July 07, 2014
After ordering and installing these I wish I would have done more stainless on my car.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

JayRohr62
Verified Purchaser

Shackles with shock mount

July 03, 2014
I got these to replace the shackles on my 33 Ford 4" drop front end. Bought them with a new set of perch mounts. They work perfectly and the quality is heavy duty and look great!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

akzale
Alaska

Easy installation

September 04, 2013
Great item for installing the shocks easily. Adds a little shine to the front end too!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

GoneinaFlash
W. Jeff OH 43162

Quick and easy

March 06, 2013
Did exactly what I needed it to do. Not my ideal way to mount the shocks but saved many hours of fabrication and the stainless steal looks great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 7 answers

1 answers

I need to know how wide the thicker part is on the shock stud is that sits between the shackle plate and the shock

Tola
Sweden
January 20, 2015

I need to know how wide the thicker part is on the shock stud is that sits between the shackle plate and the shock

Answers

January 20, 2015
EricM
The thick part on the shock stud is 1/2" thick so that the shock will be 1/2" away from the shackle plate.
1 answers

I need to know how wide the spacer is on the Shock Mount Stud

Tola
Sweden
January 19, 2015

I need to know how wide the spacer is on the Shock Mount Stud

Answers

January 19, 2015
EricM
The shock stud is actually all one piece, no spacer is used. The smooth portion where the shock will slide over is 5/8" OD and 1 1/4" long.
3 answers

Spring Width? Will these fit my 2" wide posie super slider spring?

qball
Lancaster, CA, USA
August 01, 2013

Spring Width? Will these fit my 2" wide posie super slider spring?

Answers

September 05, 2014
GrayGoat
These shackles are for 1 3/4" springs typically used on lighter vehicles like T buckets and early roadsters, both too narrow and not designed to carry the weight of a full size pick up.
July 04, 2014
JayRohr62
The set I bought only fits 1.5" springs.
August 01, 2013
Jason
These shackles with shock stud are 2" wide overall but will only work with 1-3/4" wide springs.
2 answers

DOes the shock stud go on the spring or the axle side of the shakle

russ119
New Mexico, USA
June 06, 2013

DOes the shock stud go on the spring or the axle side of the shakle

Answers

September 05, 2014
GrayGoat
The shock goes on the axle side, placing it on the spring eye end and you have a flexing joint (the shackle) between the axle and shock.
June 06, 2013
Jason
The shackle with the longer shock stud number 715175 has been used with the stud on either end. On our T bucket chassis the shock stud is on the spring pivot or axle side of the shackle.
Page 1 of 1
