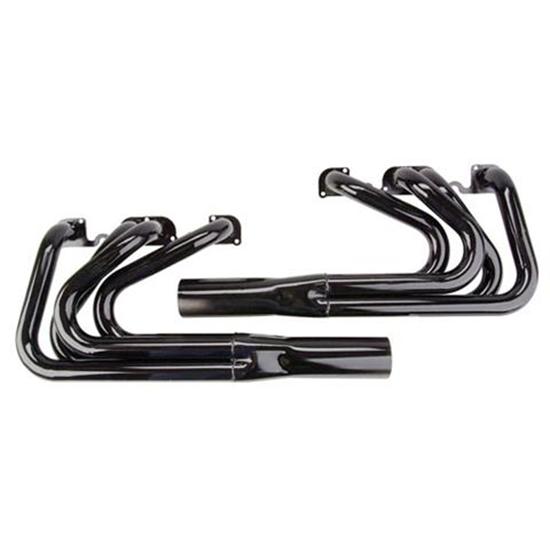

Schoenfeld 1025LDN Sprint Car Headers, 1-7/8, 3-1/2, Spread Port

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Color:
Black
Flange Style:
Spread Port
Header Tube Type:
Long Tube
MFG. Part #:
1025LDN
Gasket(s) Included:
Yes
Hardware Included:
Yes
Tube O.D.:
1.88
Port Height:
1.75
Port Width:
1.85
Flange Thickness:
.25
Collector Diameter :
3.5
Drivers Side Dimension A:
9.75
Drivers Side Dimension B:
13.45
Drivers Side Dimension C:
30.75
Passenger Side Dimension A:
10.70
Passenger Side Dimension B:
13.50
Passenger Side Dimension C:
32.00
Collector Length:
13
Notes
The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers be applied.
Schoenfeld 1025LDN Sprint Car Headers, 1-7/8, 3-1/2, Spread Port
Schoenfeld 1025LDN Sprint Car Headers, 1-7/8, 3-1/2, Spread Port
Schoenfeld 1025LDN Sprint Car Headers, 1-7/8, 3-1/2, Spread Port

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Swept forward for muffler clearance. Fits Chevy, Brodix Spread Port and now all Pro Spread Port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18 ga. primary tubes and 3-1/2" x 14" collectors, may be shortened. Bolts directly to your head and comes with bolts and gaskets.

Header Dimension Chart
