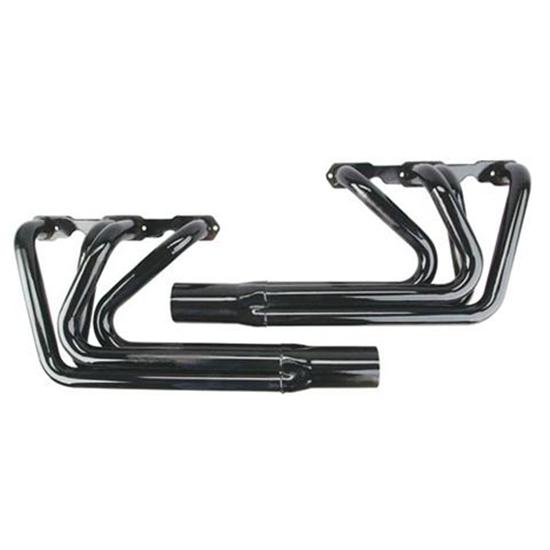

Schoenfeld Standard Sprint Car Headers, 1-3/4, 3-1/2 Cltr, Chevy

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Flange Style:
Square Port
Header Tube Type:
Long Tube
MFG. Part #:
1014L
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.75
Port Height:
1.70
Port Width:
1.50
Flange Thickness:
.25
Collector Diameter :
3.50
Drivers Side Dimension A:
9.60
Drivers Side Dimension B:
13.40
Drivers Side Dimension C:
31.63
Passenger Side Dimension A:
10.45
Passenger Side Dimension B:
13.40
Passenger Side Dimension C:
32.00
Collector Length:
8.00
Schoenfeld Standard Sprint Car Headers, 1-3/4, 3-1/2 Cltr, Chevy
Schoenfeld Standard Sprint Car Headers, 1-3/4, 3-1/2 Cltr, Chevy
Schoenfeld Standard Sprint Car Headers, 1-3/4, 3-1/2 Cltr, Chevy

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Track proven for S/B Chevy.  Extra thick flanges. Headers feature 3-1/2" from flange to bend and approximately 32" primary tubes. Bolt directly to aluminum standard port heads.

Header Dimension Chart

Complete with gaskets and bolts.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Aeroyuma
Verified Purchaser
Verified Reviewer
Yuma, Arizona

Great Quality Header that won't break the bank !!

September 12, 2015
Installed on my 360 Wingless Sprint, always nice to have something fit and work, only option I'd like them to offer is a Jet coat finish
Pros:
  • Good Looking And Good Fit
Cons:
  • Need A Jet Coat Option
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Just A Crew Guy
Oklahoma

I would buy this product again.

August 28, 2010
Used for sprint car racing. Great product from a well known company.
Pros:
  • Perfect Fit
  • Durable
  • Well built
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

Details reads (3 1/2 " from fanges to bend). Spec. read (Drivers side demension A: 9.60) which is correct . I must go outside the frame.

crowman
Parker, Texas
March 09, 2015

Details reads (3 1/2 " from fanges to bend). Spec. read (Drivers side demension A: 9.60) which is correct . I must go outside the frame.

Answers

March 09, 2015
EricM
These headers are designed for a modern day Sprint Car chassis and do not extend far enough out to fit your hot rod. See part number 930CER100 for headers that are made for your application. They extend out further to allow clearance to the frame.
