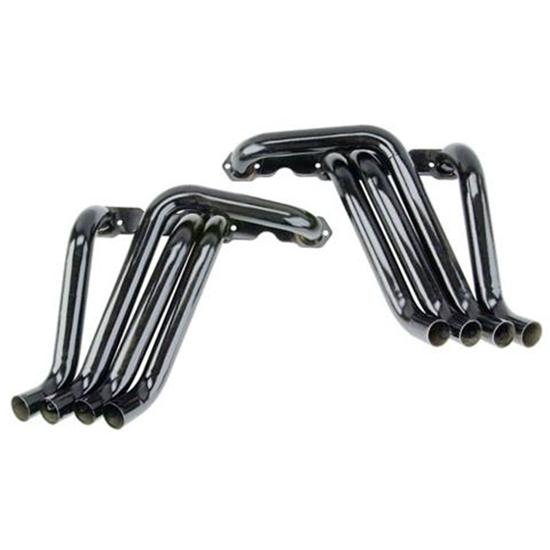

Schoenfeld Small Block Chevy Boom Tube Headers, Standard Port

SAME DAY SHIPPING! Order within the next 14 hours 48 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.68
Port Width:
1.50
Flange Thickness:
.25
Flange Style:
Square Port
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
6.63
Drivers Side Dimension B:
15.63
Drivers Side Dimension C:
20.75
Passenger Side Dimension A:
6.00
Passenger Side Dimension B:
16.00
Passenger Side Dimension C:
15.50
MFG. Part #:
130
Garage Sale:
No
Header Tube Type:
Zoomie
Schoenfeld Small Block Chevy Boom Tube Headers, Standard Port
Schoenfeld Small Block Chevy Boom Tube Headers, Standard Port
Schoenfeld Small Block Chevy Boom Tube Headers, Standard Port

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These S/B Chevy boom tubes are for Late Models, IMCA Modifieds. Also fits Camaro and Chevelle. Extra-thick flanges. 1-3/4" primary tubes. For standard port Chevy heads.

Header Dimensions (GIF)



Item Details

Standard Port

Customer Reviews

Rated 3 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
1
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

luckysob
Verified Purchaser
georgia

fast shipping.

March 24, 2015
First off incredibly fast shipping. Thanks speedway!!!!! I hoped these would be an easy slap on and go set of headers for my toy .but I was wrong. I was torn between the weld up kit and these prefab ones I chose these for 100 bucks can't go wrong. I was already planning on some fab work to lengthen and bring these out the bottom of the fenders anyway so not a big deal .had to cut all but one tube loose and completely reconfigure and bend them .I should have just bought the kit with tubes and the flanges . That's on me . He'll this stuff wouldn't be near as fun if there wasn't a challenge somewhere along the way. Overall very pleased with the final product and the way these sound on my mild lil 406 in my 72 el camino panty dropper. Thanks again speedway
Pros:
  • cheap. loads of fun
Cons:
  • will heat a rollcage up pretty quick too
  • puts a lot of heat on the drivers feet
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

FellowRodder
Verified Purchaser

Boom Style Headers

September 15, 2014
These headers will not work with out major modifications on 27 T's. The headers will not clear the motor mount, Steering rod and frame rails. Using Speed way rails... I called "Tech Support" and got no help at all on dimensions and I got nothing. looking at the picture it appeared the curves would had allowed the pipes to clear the frame rails to run outside the frame. These are like block hugger headers with down swept pipes. No room at all to install. I recommend sprint style headers on 27 T's.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a return label for a full refund. We apologize for any frustration and are always happy to help!
never to old to race
Verified Purchaser
Beaver Falls ,NY

The product is just what was needed

October 17, 2010
This product will work great in my pulling tractor
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

What year Malibu or camaro I bought a set of these last year for my 67 Malibu from schoelfeld and they did not fit the first pipe hit my frame and liked another 2 inches from bolting up. The headers I have on now are off a 72 camaro. Was heart broken when I had to send them back and have been looking for some ever since

Shane666
Paragould, AR 72450, USA
January 29, 2015

What year Malibu or camaro I bought a set of these last year for my 67 Malibu from schoelfeld and they did not fit the first pipe hit my frame and liked another 2 inches from bolting up. The headers I have on now are off a 72 camaro. Was heart broken when I had to send them back and have been looking for some ever since

Answers

January 30, 2015
EricM
Shoenfeld does not specify a particular year range for these headers. They only make this one style of boom tube or zoomie style header as far as I know so if you have tried theirs already and they did not fit I doubt these will either.
1 answers

boom tube headers angle in degrees from first down turn towards the last turn at the ground, need to see if they will clear my steering rod....thanks bobby turner

mullette
carrabelle fl
February 05, 2014

boom tube headers angle in degrees from first down turn towards the last turn at the ground, need to see if they will clear my steering rod....thanks bobby turner

Answers

February 05, 2014
EricM
It depends which tube you check but they range from being 90 degrees (straight up and down) to about 12 degrees angled back in toward the engine.
1 answers

Will these fit a LT1 engine and clear a the frame rail on a Ford 32 coupe?

July 26, 2011

Will these fit a LT1 engine and clear a the frame rail on a Ford 32 coupe?

Answers

July 27, 2011
John
These headers have slightly different dimensions than our Speedway Boom tubes and clear frame widths of Camaro’s and Chevelle’s. Inside the first bend to flange is still approximately 3” and the tubes are 1 ¾”. Top of flange to bottom of tubes is 15 ¾” and from front of flange to furthest rear point of last tube is 21”. All the boom tube headers fit the standard port Small Block Chevy heads with the exception of the LS series engines of 1999 and up.
1 answers

Are there baffels available for these boom tubes?I want to put them on a T Bucket. Wendell

Tanny Bogus
Shreveport,Louisiana
January 08, 2011

Are there baffels available for these boom tubes?I want to put them on a T Bucket. Wendell

Answers

January 11, 2011
Shane
These are designed for race. Speedway Motors does not sell baffels for these.
1 answers

how long are they from ,the flange to the ground

wolfman
bakersfield,,ca
March 13, 2011

how long are they from ,the flange to the ground

Answers

March 16, 2011
Jeremy O
From the flange to the ground is approx. 15-3/4".
Page 1 of 1
