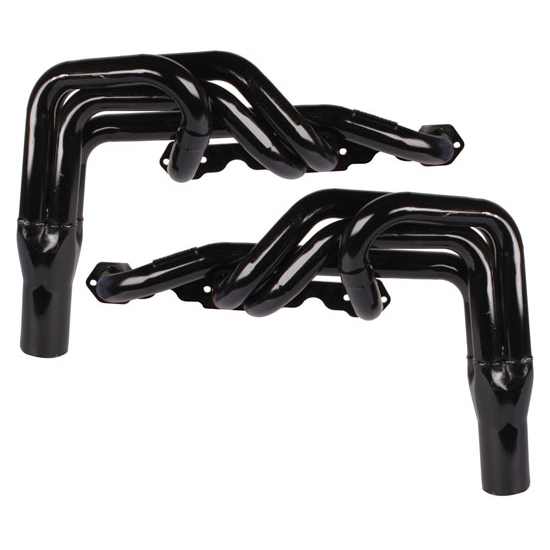

Schoenfeld Headers 196-3 IMCA Stock Car Header

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Flange Style:
Rectangular Port
Header Tube Type:
Chassis
MFG. Part #:
196-3
Gasket(s) Included:
Yes
Hardware Included:
Yes
Tube O.D.:
1.75
Port Height:
1.73
Port Width:
1.50
Flange Thickness:
.25
Drivers Side Dimension A:
6.75
Drivers Side Dimension B:
10.65
Drivers Side Dimension C:
27.88
Passenger Side Dimension A:
6.40
Passenger Side Dimension B:
10.95
Passenger Side Dimension C:
26.63
Collector Length:
7.25
Collector Diameter :
3
Schoenfeld Headers 196-3 IMCA Stock Car Header
Schoenfeld Headers 196-3 IMCA Stock Car Header
Schoenfeld Headers 196-3 IMCA Stock Car Header
Schoenfeld Headers 196-3 IMCA Stock Car Header

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (2)

Q & A (4)

What's in the Box

Info

  • No clearance issues with oil filter, spark plugs, starter, kick out oil pan, rear mounts, valve cover
  • Clears firewall that is minimum 7" from back of block
  • Exits inside frame rail
  • 1-3/4" tube diameter
  • 3" x 9" collector
  • Bolts and gaskets included

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Racin Jason
Verified Purchaser
Boone, Iowa

Will buy these again

March 01, 2016
Bolt right up no clearance issues at all. Great looking product too!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

CrittendenRacin
Verified Purchaser
Texas

Works Great for the IMCA Stock Car Class

February 02, 2013
Works Great on the IMCA stock car, keeps heat away from transmission and noise under car. Great Performance as well!
Pros:
  • noise level low
  • heat away from tranny
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

which engine? which engine would these fit?

DDow
June 02, 2013

which engine? which engine would these fit?

Answers

June 03, 2013
Jason
These Schoenfeld headers are designed for the small block chevy with stock 23 degree cylinder heads. We offer the following dimensions: Tube O.D. - 1.750" (1 3/4") Collector Diameter - 3.000" Collector Length - 7.250" (7 1/4") Flange Style - Rectangular Port Flange Thickness - 0.250" (1/4") Port Height - 1.730" Port Width - 1.500" (1 1/2") Drivers Side Dimension A - 6.750" (6 3/4") Drivers Side Dimension B - 10.650" Drivers Side Dimension C - 27.880" Passenger Side Dimension A - 6.400" Passenger Side Dimension B - 10.950" Passenger Side Dimension C - 26.630" Hardware Included - Yes Gasket(s) Included - Yes
1 answers

Will these headers work on 906 vortec heads ?

1ab
Va. Beach VA.
May 11, 2015

Will these headers work on 906 vortec heads ?

Answers

May 12, 2015
Eric
Expert
Yes these headers fit Vortec heads.
1 answers

do these header come in 1"5/8 tube diameter ?

1rb
Va. Beach VA.
May 12, 2015

do these header come in 1"5/8 tube diameter ?

Answers

May 12, 2015
Eric
Expert
Sorry we do not offer these in a 1 5/8" primary tube size. We do offer a 1 5/8" to 1 3/4" step primary in this style of header which is part number 9171953
1 answers

Do you have a Schoenfeld or Speedway replacement gasket for this Model Header?

Jaz
February 15, 2016

Do you have a Schoenfeld or Speedway replacement gasket for this Model Header?

Answers

February 15, 2016
Eric
Expert
Schoenfeld header gaskets 91701510 are a replacement for the gaskets that are supplied with these headers originally.
