Schoenfeld High Velocity Street Stock Headers, 1-1/2 To 1-5/8 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.50 - 1.63
Port Height:
1.48
Port Width:
1.41
Flange Thickness:
.25
Flange Style:
Round Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
5.05
Drivers Side Dimension B:
17.05
Drivers Side Dimension C:
30.13
Passenger Side Dimension A:
5.35
Passenger Side Dimension B:
16.30
Passenger Side Dimension C:
33.75
Collector Length:
8.75
MFG. Part #:
184V
Garage Sale:
No
Header Tube Type:
Chassis

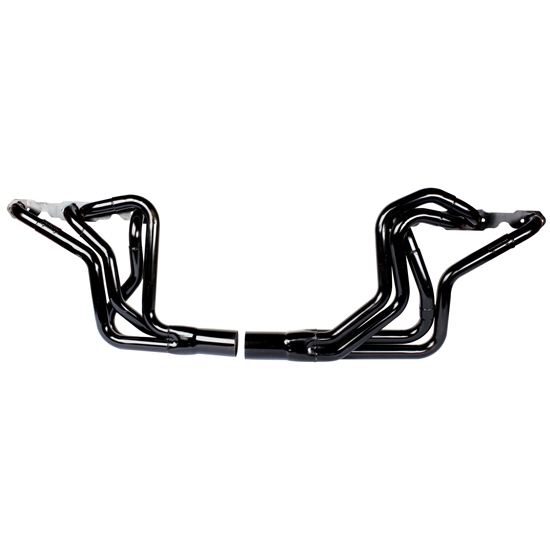

Schoenfeld High Velocity Street Stock Headers, 1-1/2 To 1-5/8 Inch
Schoenfeld High Velocity Street Stock Headers, 1-1/2 To 1-5/8 Inch

Click image to enlarge

Speeday Motors Logo
X
Schoenfeld High Velocity Street Stock Headers, 1-1/2 To 1-5/8 Inch

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Races are won by the guy who gets off the corner the fastest. Torque is what gets your car moving, and the right header is crucial for generating maximum torque. These high-velocity headers are engineered to boost torque in small-block Chevy race engines with standard port cylinder heads.

Fits Monte Carlo (1972-1987) and Malibu, Grand Prix, Cutlass, Regal (1978-1987) and Camaro (1970-1981).

  • Clears side and rear engine mounts (motor must be in stock location)
  • Fits straight or angle plug heads
  • Will not clear stock manual clutch linkage ball or air condition box
  • Must use short oil filter such as WIX 51069, AC PF24, or FRAM PH30

Header Dimension Chart

Application

  • Monte Carlo (1972-1987)
  • Malibu, Grand Prix, Cutlass, Regal (1978-1987)
  • Camaro (1970-1981)

Specs


Item Details

1-1/2"to 1-5/8", 1978-1986 Intermediate
