Schoenfeld Headers 142-525LV Dirt Late Model Headers

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Flange Style:
Spread Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
22.35
Drivers Side Dimension B:
11.90
Drivers Side Dimension C:
20.75
Passenger Side Dimension A:
17.30
Passenger Side Dimension B:
9.85
Passenger Side Dimension C:
32.00
Collector Length:
8.50
MFG. Part #:
142-525LV
Garage Sale:
No
Header Tube Type:
Chassis
Schoenfeld Headers 142-525LV Dirt Late Model HeadersSchoenfeld Headers 142-525LV Dirt Late Model Headers

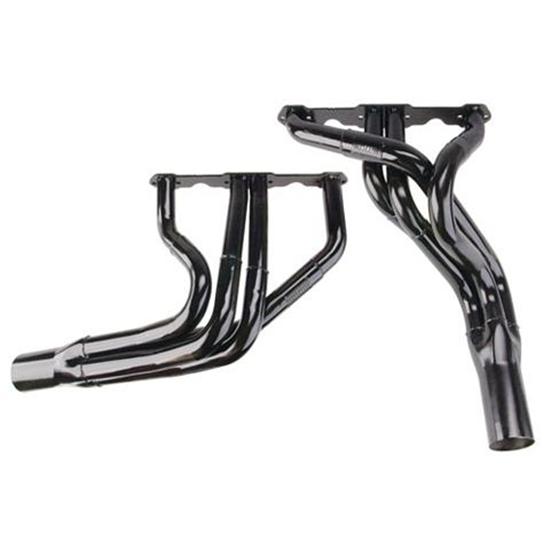

Schoenfeld Headers 142-525LV Dirt Late Model Headers

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These dirt late model headers have long primaries with collector on the outside of the frame. 3/4" - 1-7/8" stepped primaries. 3-1/2" x 9" collectors. Small Block Chevy. Available in standard or spread port designs.

Header Dimension Chart

Fits rocket chassis.
