Canadian Leaf

Scat 4-350-4000-6000 Chevy 4340 Forged Crankshaft-4 Stroke, 350 Main

SAME DAY SHIPPING! Order within the next 12 hours 24 minutes and receive same day shipping

Specs
Weight:
54
Sold in Quantity:
Each
Rod Length:
6.0
Stroke:
4.00
Main Journal Style:
350 mains
Rod Journal Diameter:
2.10"
Rear Main Seal Style:
2-piece
Garage Sale:
No
Main Journal Diameter:
2.448"
Crankshaft Material:
Forged 4340 Steel

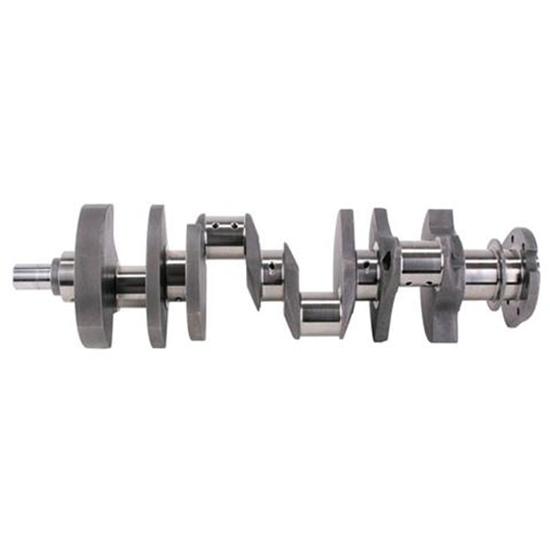

Scat 4-350-4000-6000 Chevy 4340 Forged Crankshaft-4 Stroke, 350 Main
Scat 4-350-4000-6000 Chevy 4340 Forged Crankshaft-4 Stroke, 350 Main

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

As you make more and more power it becomes more important to use quality parts. These Scat 4340 forged steel cranks will help keep your motor alive.

  • Straight shot & chamfered oil holes
  • Nitride hardened for superior wear reisistance
  • Lightening holes in all rod throws
  • Large radius on all journals
  • Heat treated, shot peened
  • Designed at SCAT
  • Engineered at SCAT
  • Inspected & micropolished at SCAT
  • For 2-piece rear main blocks
  • 2.100" rod pin
  • 408 & 434 Chevy Crankshaft
  • 54 lbs.

Item Details

4.00" stroke - 350 mains - 6.0" rods
