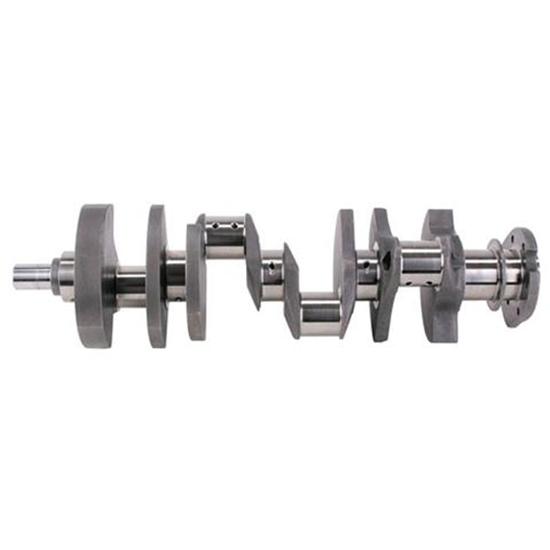

Scat 4-350-3750-5700 383 Chevy 4340 Forged Crankshaft, 3.75 Stroke

SAME DAY SHIPPING! Order within the next 5 hours 46 minutes and receive same day shipping

Specs
Weight:
52.0
Sold in Quantity:
Each
Rod Journal Diameter:
2.10"
Rear Main Seal Style:
2-piece
Garage Sale:
No
Crankshaft Material:
Forged 4340 Steel
Scat 4-350-3750-5700 383 Chevy 4340 Forged Crankshaft, 3.75 Stroke
Scat 4-350-3750-5700 383 Chevy 4340 Forged Crankshaft, 3.75 Stroke

Click image to enlarge

Speeday Motors Logo
X
Scat 4-350-3750-5700 383 Chevy 4340 Forged Crankshaft, 3.75 Stroke

Details

Reviews

Q & A

What's in the Box

As you make more and more power it becomes more important to use quality parts. These Scat 4340 forged steel cranks will help keep your motor alive.

  • For 2-piece rear main blocks
  • 2.100" rod pin
  • 52 lbs.
  • Straight shot & chamfered oil holes
  • Nitride hardened for superior wear reisistance
  • Lightening holes in all rod throws
  • Large radius on all journals
  • Heat treated, shot peened
  • Designed at SCAT
  • Engineered at SCAT
  • Inspected & micropolished at SCAT

Note: If you are going to run 915-15550 in a sprint car motor, you must have the crank flange turned down prior to balancing the crank to allow it to go through the motor plate.

Item Details

3.75" stroke - 350 mains
