SSBC W123-25R 1964-74 GM Competition Drum to Disc Brake Conversion

SAME DAY SHIPPING! Order within the next 34 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Color:
Red
Sold in Quantity:
Kit
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
11.00
Caliper Pistons:
Four
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Construction:
Vented
Caliper Finish:
Anodized
Rotor Location:
Front
Rotor Shape:
Round
Hardware Included:
Yes
Garage Sale:
Yes
Drilled:
Yes
Slotted:
Yes
Rotor Thickness:
1.00
Track Width Increase:
0.00
Notes
Includes calipers, pads, rotors, caliper brackets, and hardware.

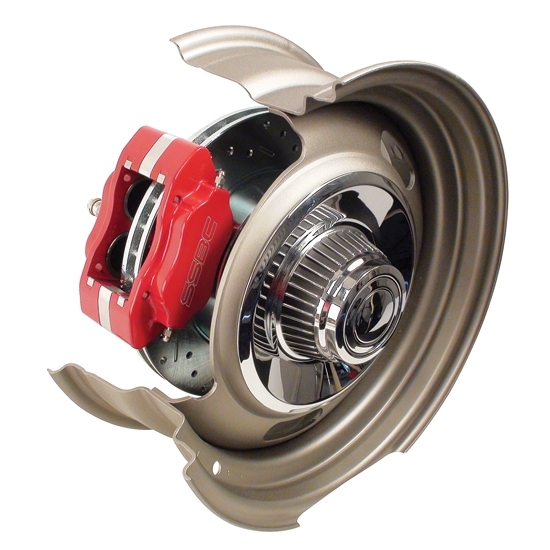

SSBC 1964-74 GM Competition Drum to Disc Brake Conversion
SSBC 1964-74 GM Competition Drum to Disc Brake Conversion
SSBC 1964-74 GM Competition Drum to Disc Brake Conversion
SSBC 1964-74 GM Competition Drum to Disc Brake Conversion

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.
  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

Clearance!!

 No Warranty, No Returns On Garage Sale Items

Bolt-in ultra high performance disc brake conversion kit for 1964-74 GM A, F, & X Body. Kit includes street 4-piston aluminum calipers with 45mm stainless pistons, performance brake pads, mounting brackets, 11" Big Bite cross drilled rotors, and hardware.

  • 100% Made in the USA
  • 15" wheel compatible
  • Calipers are constructed from 6061-T6 billet aluminum
  • Assembled with stainless steel pistons and bleeder screws
  • 25% more pad contact area than other calipers with this mount
  • 20% thicker pads than other calipers with this mount
  • Dual pad pin design with o-rings to eliminate pad chatter
  • Use any off-the-shelf D43 pad from any local parts store

Calipers are available in plain finish (clear coated) billet, fully polished, red powder coat, or black powder coat.

Application

  • '64-'72 Buick Skylark
  • '67-'69 Chevy Camaro
  • '64-'72 Chevy Chevelle/Malibu
  • '64-'72 Chevy El Camino
  • '70-'72 Chevy Monte Carlo
  • '68-'74 Chevy Nova
  • '67-'72 Oldsmobile 442/Cutlass
  • '67-'69 Pontiac Firebird
  • '64-'72 Pontiac GTO/Lemans
  • '64-'70 Pontiac Tempest

Specs

  • Caliper Inlet:  1/8" NPT Female
  • Number of Pistons:  4
  • Piston Size:  45 mm
  • Rotor Diameter:  11"
  • Rotor Thickness:  1.000"
  • Rotor Venting:  Uni-Directional
  • Rotor Finish:  Drilled, Slotted & Plated
  • Bolt Pattern:  5 x 4.75"

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Barrett57
Verified Purchaser
Ardmore, OK 73401, USA

Great Looks, Solid Performance

September 22, 2014
Debated between these and Wilwoods to save some money. So far, I am not disappointed with that decision. The calipers look awesome, rotors decent quality but the kit needs a bit of help. For example, they included 90 degree caliper fittings which rarely end up clocked in the right position for the brake line. Bought some Earl's straight and 90 degree swivel fittings instead. Also they included bearings but not new bearing races, mandatory since the old are likely grooved like mine. Little stuff. Will edit this if I end up with any issues.
Pros:
  • good pads
  • Easy To Install
  • Great looks
Cons:
  • fittings don't work for brake line placement
  • need bearing races with the new bearings
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

9 questions : 10 answers

2 answers

Have drums now. Can I use my existing hub? I plan to get your disc spindle. If I use my existing (drum) hub, replace the spindle with your stock GM disc spindle (thinner upper boss), I will have everything I need for this conversion, correct?

btbarrett57
Ardmore, OK 73401, USA
August 14, 2014

Have drums now. Can I use my existing hub? I plan to get your disc spindle. If I use my existing (drum) hub, replace the spindle with your stock GM disc spindle (thinner upper boss), I will have everything I need for this conversion, correct?

Answers

September 24, 2014
Barrett57
The speedway tech answered this. Kit uses the original, stock spindle and hub without any issues. And given that you're using original parts, this does not push the wheel out toward the fender lip like many kits do.
August 14, 2014
EricM
This kit will work with your stock drum brake spindles. There is no need to buy new spindles when using this kit. Your stock hubs will be reused as well.
1 answers

I have a 1969 Nova with drum brakes my question is will this conversion change the hub to hub measurement, will it make it wider? Because of the ride height of my car and the wheels and tires that I have I don't have the room if the kit moves the wheels outward even a minor amount.

wilk
March 06, 2014

I have a 1969 Nova with drum brakes my question is will this conversion change the hub to hub measurement, will it make it wider? Because of the ride height of my car and the wheels and tires that I have I don't have the room if the kit moves the wheels outward even a minor amount.

Answers

March 07, 2014
EricM
This brake kit maintains stock track width.
1 answers

Do you have a rear disk brake kit, to match the competition D. B. conversion kit. My car has drums front and back. I was shopping around for the best kit. Until a friend told me about this page. Also do you have a kit like this for stock spindle's, with the black calibers, also do you have a combo kit with the booster, master cylinder, proportion valve, for this vehicle?

Dgoud86
Oklahoma
February 20, 2014

Do you have a rear disk brake kit, to match the competition D. B. conversion kit. My car has drums front and back. I was shopping around for the best kit. Until a friend told me about this page. Also do you have a kit like this for stock spindle's, with the black calibers, also do you have a combo kit with the booster, master cylinder, proportion valve, for this vehicle?

Answers

February 21, 2014
EricM
Speedway’s competition brake kit number 28612325 is available with Red, Black, Polished, or plain finish calipers and works on your stock Chevelle spindles. We also offer a kit for power brakes that works well with this disc brake conversion, it is part number 91031978 and includes the proportioning valve and fittings.
1 answers

I have a 1964 Chev II wagon with Org. Drum brakes on all 4 coners.If I install this kit on the front only, with a 17" wheel,What off set is needed on install a 17" wheel, What off set do I need, and what size Master cylinder is needed. Do you have a complete 4 wheel disc brake conv. kit? Thank you larry hampton

hamp
Iowa
February 12, 2014

I have a 1964 Chev II wagon with Org. Drum brakes on all 4 coners.If I install this kit on the front only, with a 17" wheel,What off set is needed on install a 17" wheel, What off set do I need, and what size Master cylinder is needed. Do you have a complete 4 wheel disc brake conv. kit? Thank you larry hampton

Answers

February 13, 2014
EricM
Brake kit number 28612325 uses 11” rotors and will likely not work with OEM 14” drum brake wheels. It will work with 15” or larger or most 14” disc brake compatible wheels.
1 answers

Will this kit work with stock 14 inch wheels?

February 19, 2012

Will this kit work with stock 14 inch wheels?

Answers

February 20, 2012
John
These brake kits work with 15” and larger wheels
1 answers

is this a zero offset brake kit? i barely have clearence for my tires now. its a 64 el camino

murrieta ca.
December 31, 2011

is this a zero offset brake kit? i barely have clearence for my tires now. its a 64 el camino

Answers

January 03, 2012
John
Part number 28612325 The Stainless Steel Brake kits feature “O” increase in track width.
1 answers

IS THIS KIT FOR DRUM BRAKE SPINDLES OR DO YOU HAVE TO CHANGE TO DISC BRAKE OR DROP SPINDLES FOR IT TO WORK I HAVE A 69 CAMARO THANKS JOHN.

ORANGE CAR GUY
PRINCE GEORGE VA.
December 12, 2011

IS THIS KIT FOR DRUM BRAKE SPINDLES OR DO YOU HAVE TO CHANGE TO DISC BRAKE OR DROP SPINDLES FOR IT TO WORK I HAVE A 69 CAMARO THANKS JOHN.

Answers

December 13, 2011
John
Part number 28612325 This kit from Stainless Steel Brakes will work on drum or disc brake OEM spindles without modification and includes your ’69 Camaro. We also offer kit number 91031958 which will work with the disc brake spindles we also offer under part number 91034900. The kit will work on the original drum brake spindles but you will need to grind or machine off approximately .610 off the upper backing plate bolt boss.
1 answers

Will this conversion kit work with a power booster?

October 23, 2011

Will this conversion kit work with a power booster?

Answers

October 24, 2011
John
Part number 28612325 This kit can be used with a booster for the extra stopping power you may want. You will need to have a booster in dual diaphragm configuration and sufficient vacuum in order to achieve additional power assist. Manufacturers recommend 18-20 inches of vacuum at the booster.
1 answers

I have a 1979 Chevy Camaro and a 1979 Pontiac Trans Am. Will this brake conversion kit fit these models?

September 14, 2011

I have a 1979 Chevy Camaro and a 1979 Pontiac Trans Am. Will this brake conversion kit fit these models?

Answers

September 15, 2011
Zach
Speedway part number 28612325. These brake kits are going to fit Camaros and Firebirds from 67-69 only, so they will not fit your 79 Camaro and Firebird.
Page 1 of 1
